Communicator Configuration 73 (124)

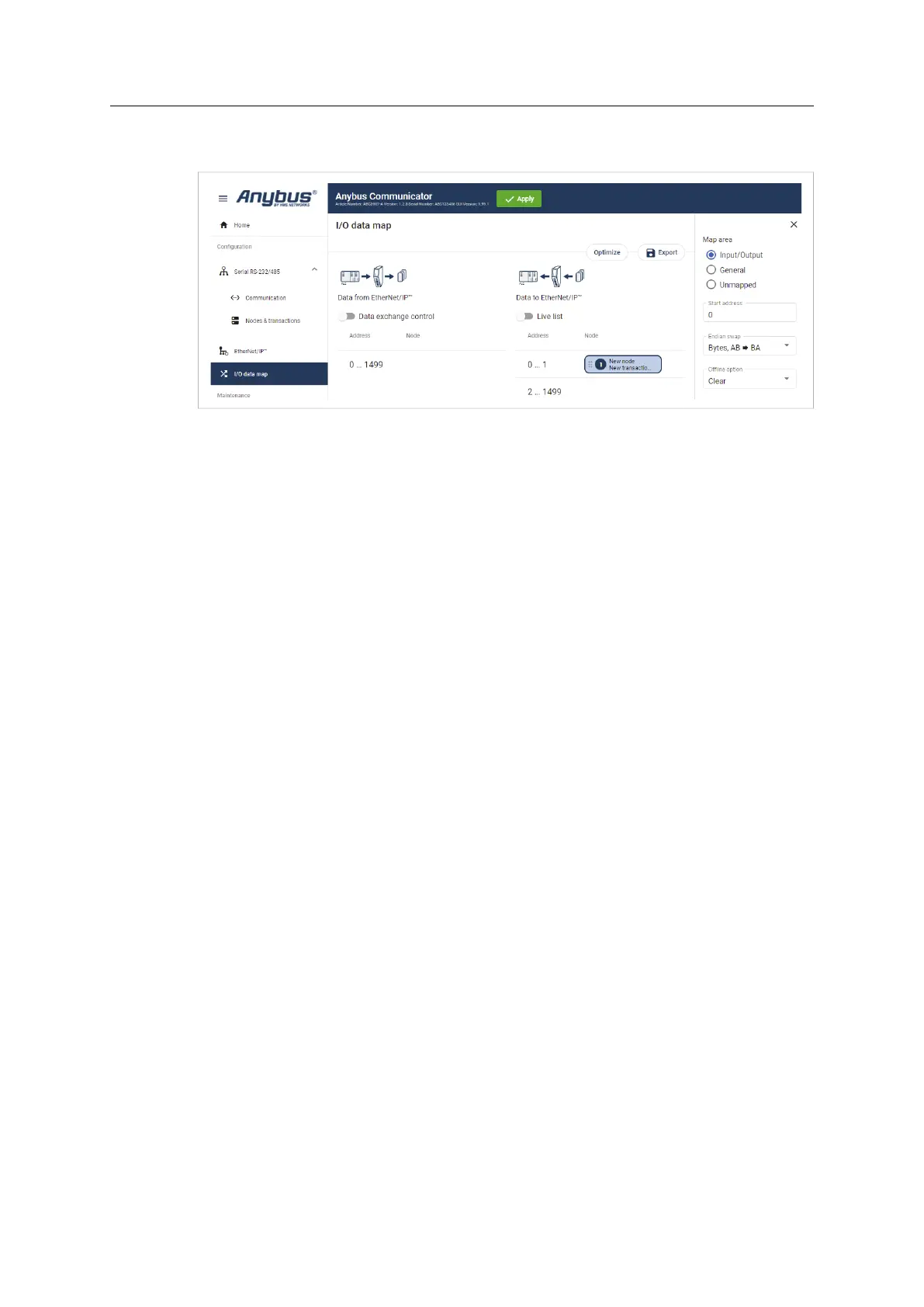

7.10.3 Map Area
Map area options
You must specify the map area to use for each transaction in the I/O data map.
Select one of the following Map area options:
• Input/Output: The transaction data is sent/recieved to/from the high level network.
• General: This area is used for transferring transaction data between individual nodes on the
subnetwork.
When General is selected, the transaction data cannot be accessed from the high level
network.
• Unmapped: The transaction data is not used.
Start address
For Input/Output and General, you can enter a start address for the transaction data.
