1. Mounting Base 8. Side Panel (Right
2. Wheel Side Illustrated)
3. Caster 9. Front Access Door
4. Front Panel 10. Rear Access Door
5. Rear Panel 11. Lifting Yoke
6. Cable Hanger 12. Power Receptacle
7. Top Panel

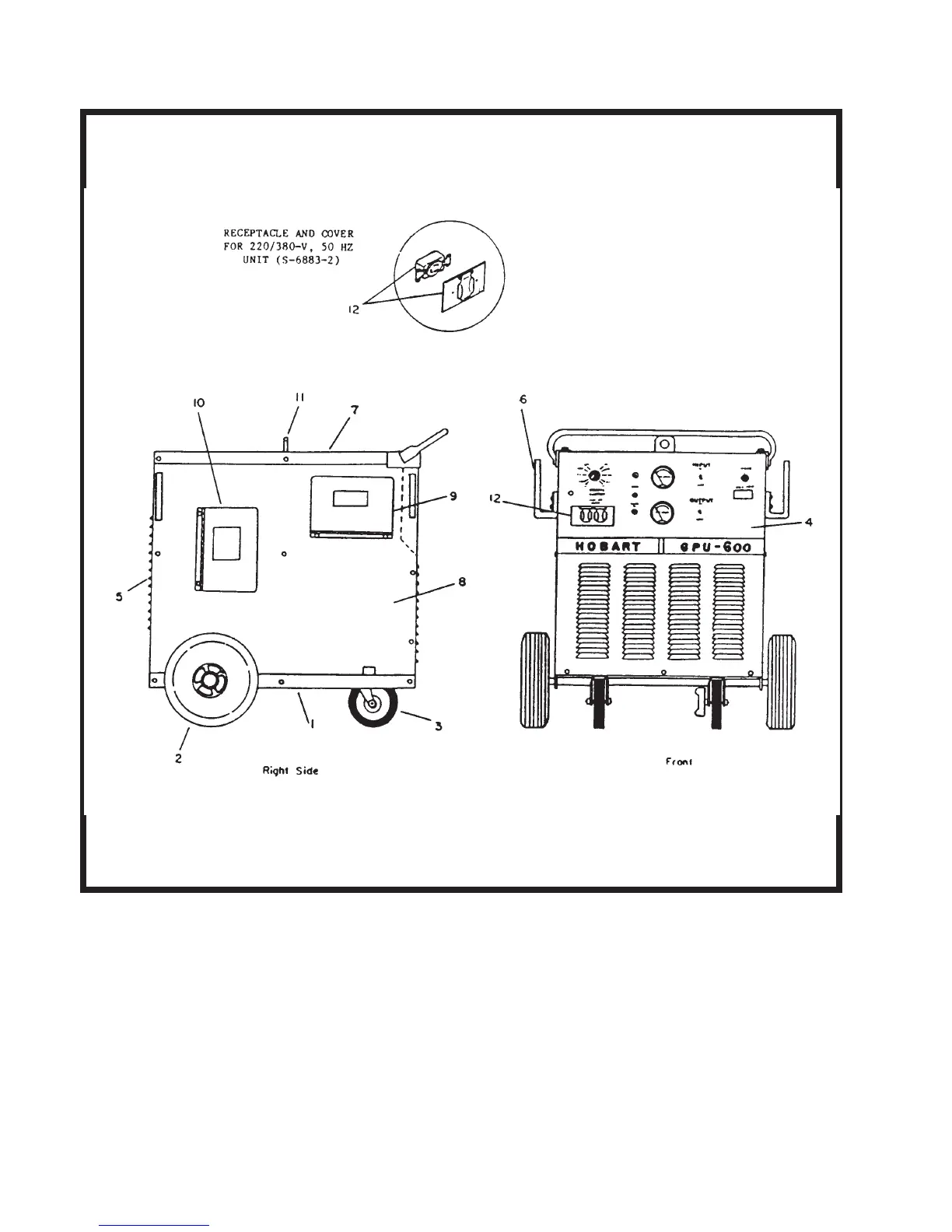

General Assembly of GPU-600 Power Supply
Figure 1
OM-2010
2-1 April 10/89 Revised
Page 2
