Hobart GPU-600 - Internal Components for GPU-600

1. Power Transformer 12. PC Mounting Panel
2. Left Side Panel 13. Printed Circuit Board
3. Lifting Yoke 14. Line Contactor
4. Capacitor 15. Top Panel
5. Terminal Output Assembly 16. Voltage Changeover Board
6. Resistor Assembly 17. SCR Heat Sink Assembly
7. Choke 18. Fan Blade
8. (Deleted) 19. Fan Motor
9. 28 V-DC Contactor 20. Control Transformer Fuse
10. Control Transformer 21. Ammeter Shunt
11. Right Side Panel

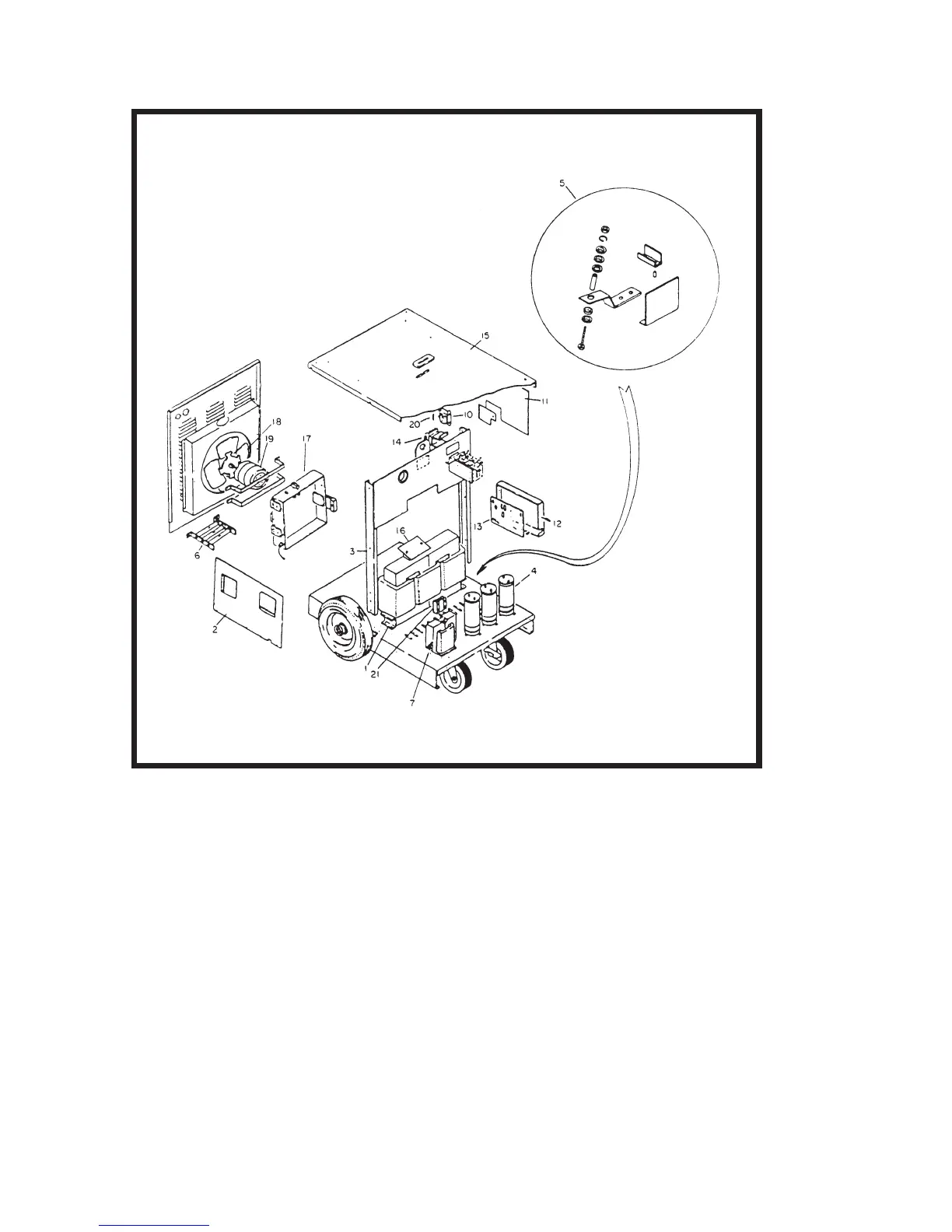

Internal Components for GPU-600
Figure 3
OM-2010
2-1 April 10/89 Revised
Page 6
