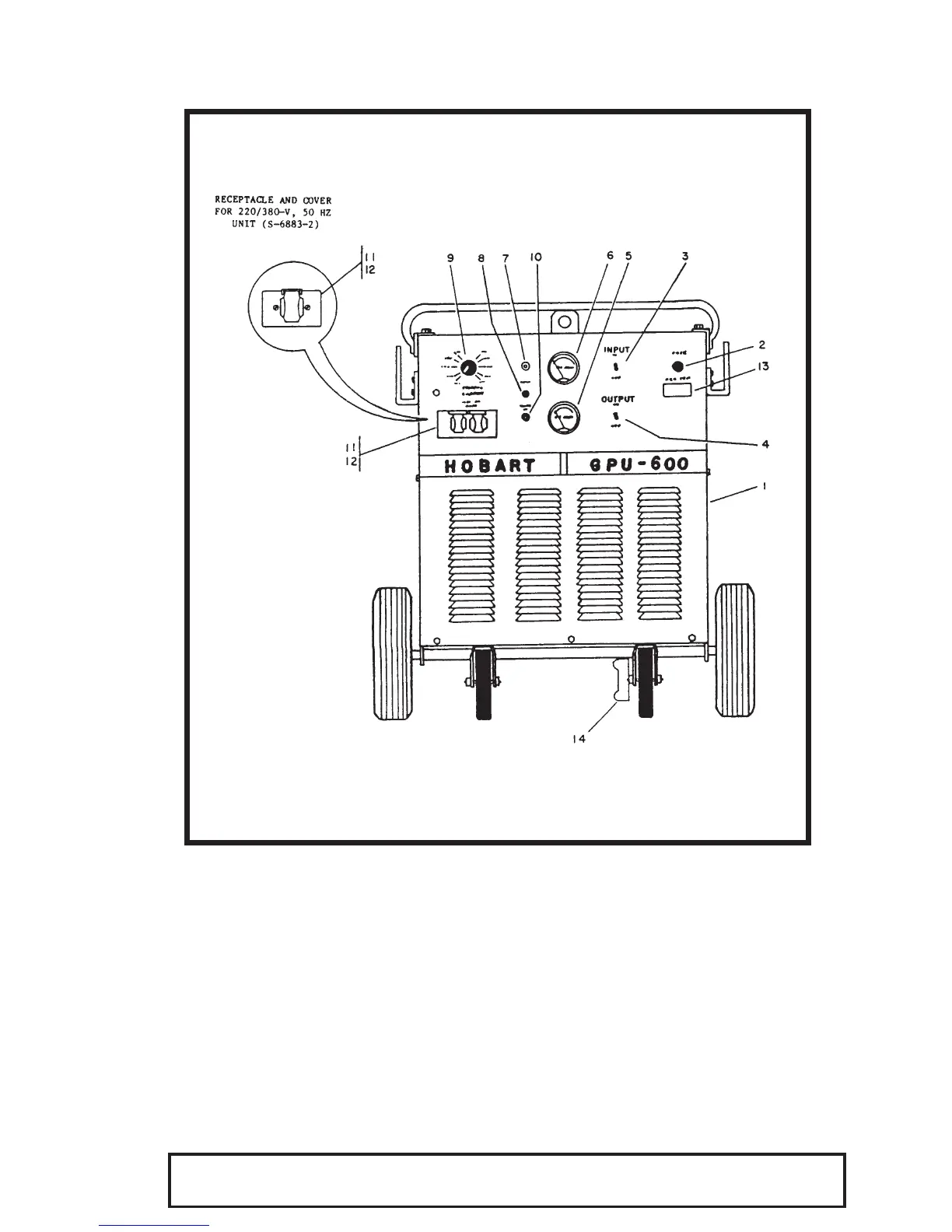

1. Front Panel 8. Red Overload Trip Light, DS2
2. Control Fuse, F1 (15A) 9. Start Current Potentiometer, R13
3. Input ON-OFF switch, S1 10. Green Output Contactor Light, DS3
4. Output Contactor Switch, S2 11. Auxiliary Power Receptacle, 115V-AC
5. Ammeter, 0-2000 A DC, M1 12. Auxiliary Power Receptacle Cover
6. Voltmeter, 0-50V DC, M2 13. Rating and Specification Nameplate
7. Amber Input Power Light, DS1 14. Caster Wheel Brake
Controls and Instruments
Figure 1
OM-2010
April 10/89 Revised 2-2
Page 3
