HL400 SERIES LEGACY MIXER REPLACEMENT PARTS
F-43137 (June 2007)

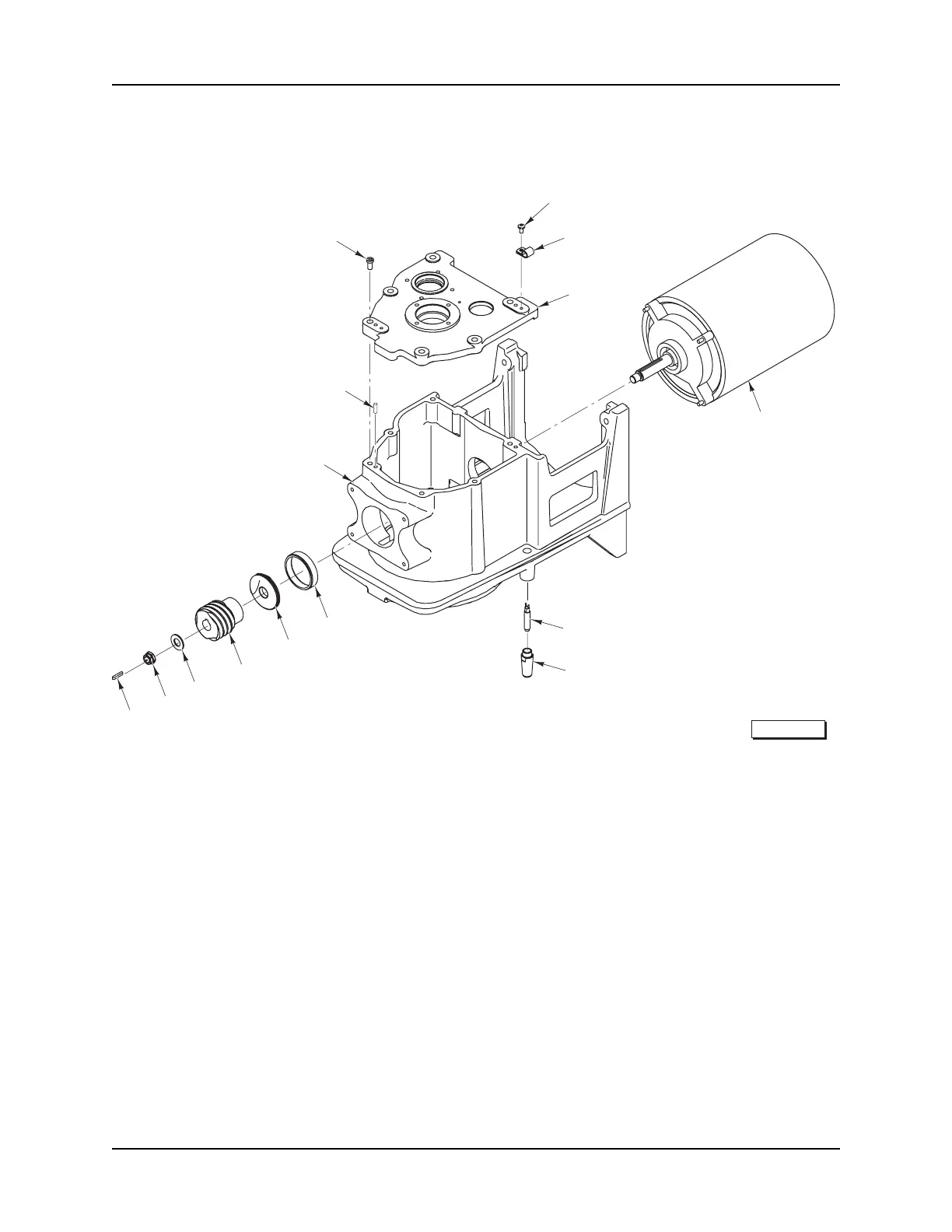

TRANSMISSION CASE AND MOTOR
ILLUS. PART NO. NAME OF PART AMT.
PL-58470
1 SC-040-15 Cap Screw
5
/16-18 x 1
1
/4 Hex Socket Hd ..................................................................................... 6
2 SC-018-62 Mach. Screw 10-24 x
3
/8 Phil. Pan Hd ........................................................................................1
3 00-078752-00003 Clamp – Cable ...........................................................................................................................1
4 00-916324-00002 Cover – Top................................................................................................................................ 1
5 00-916447 Motor ..........................................................................................................................................1
6 00-087711-00352 Switch – Reed ............................................................................................................................1
7 00-916533 Holder – Reed Switch ................................................................................................................1
8 00-012430-00069 Key
3
/16 x
3
/16 x 1
39
/64 ....................................................................................................................1
9 NS-032-23 Lock Nut
7
/16-20 Special ............................................................................................................. 1
10 WS-021-08 Washer .......................................................................................................................................1
11 00-916338 Worm – Motor ............................................................................................................................1
12 00-916388 Defl ector – Grease (LH) .............................................................................................................1
13 00-916445 Bushing – Motor ......................................................................................................................... 1
14 00-916326-00004 Transmission .............................................................................................................................. 1
15 00-011800-00187 Dowel .........................................................................................................................................2
5
6
4
14
3
2
1
7
12
13
11
10
9
8
15
PL-58470
HL400 Technical Manual Page 60 of 80
