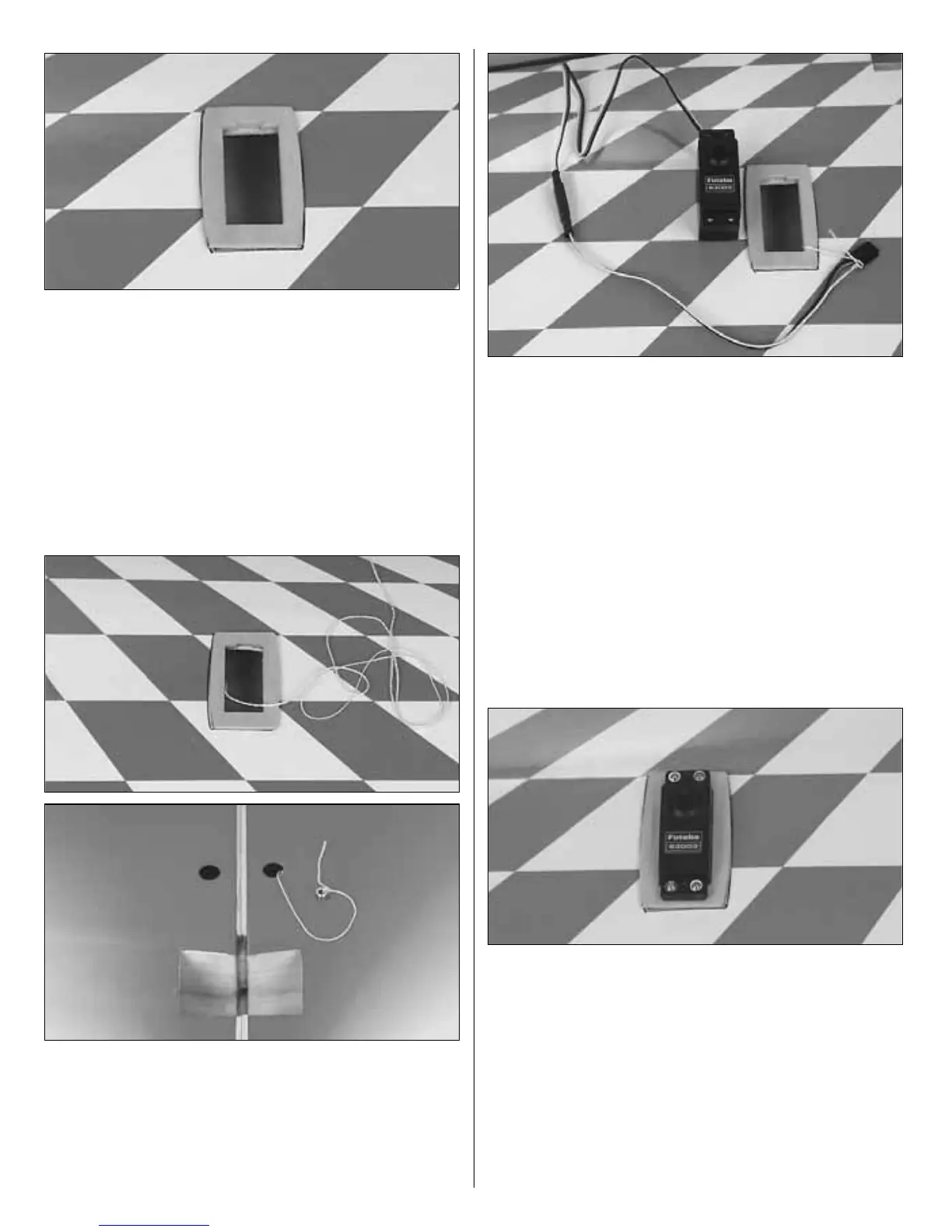

❏ 19. Locate the two plywood aileron servo trays.
Position the aileron servo trays onto the bottom of
the wing, centering them over the holes in the wing
for the aileron servos. Trace around the outside of
the servo tray using a felt-tip marker. Remove the
covering from the wing where the tray will be
installed. Secure the aileron servo trays using
medium CA.
❏ 20. Tie one of the wheel collars onto a string.
While holding onto the end of the string, drop the
end with the wheel collar into the wing from the
servo opening. The wheel collar and string can
then be retrieved from the hole in the center of the
wing. Repeat the step for the other wing panel.
❏ 21. Install the rubber grommets and eyelets in
your aileron servos. Attach a servo extension to
the aileron servo. Use heat-shrink tubing or
electrical tape to secure the servo cord to the
extension so they don’t unplug in flight. Pull the
string part way out of one of the aileron servo
compartments in the wing. Remove the wheel
collar and tie the string to the servo cord on one of
the aileron servos. Gently pull the servo lead
through the wing panel. Repeat the step for the
other wing panel.
❏ 22. Fit one of the aileron servos in the wing.
Hold the servo in the wing so the sides don’t
contact the tray and drill 1/16" [1.6mm] holes for
the servo mounting screws. Mount the servo to the
wing with the screws included with your servos.
❏ 23. Mount your other aileron servo in the
opposite wing panel using the same procedures
