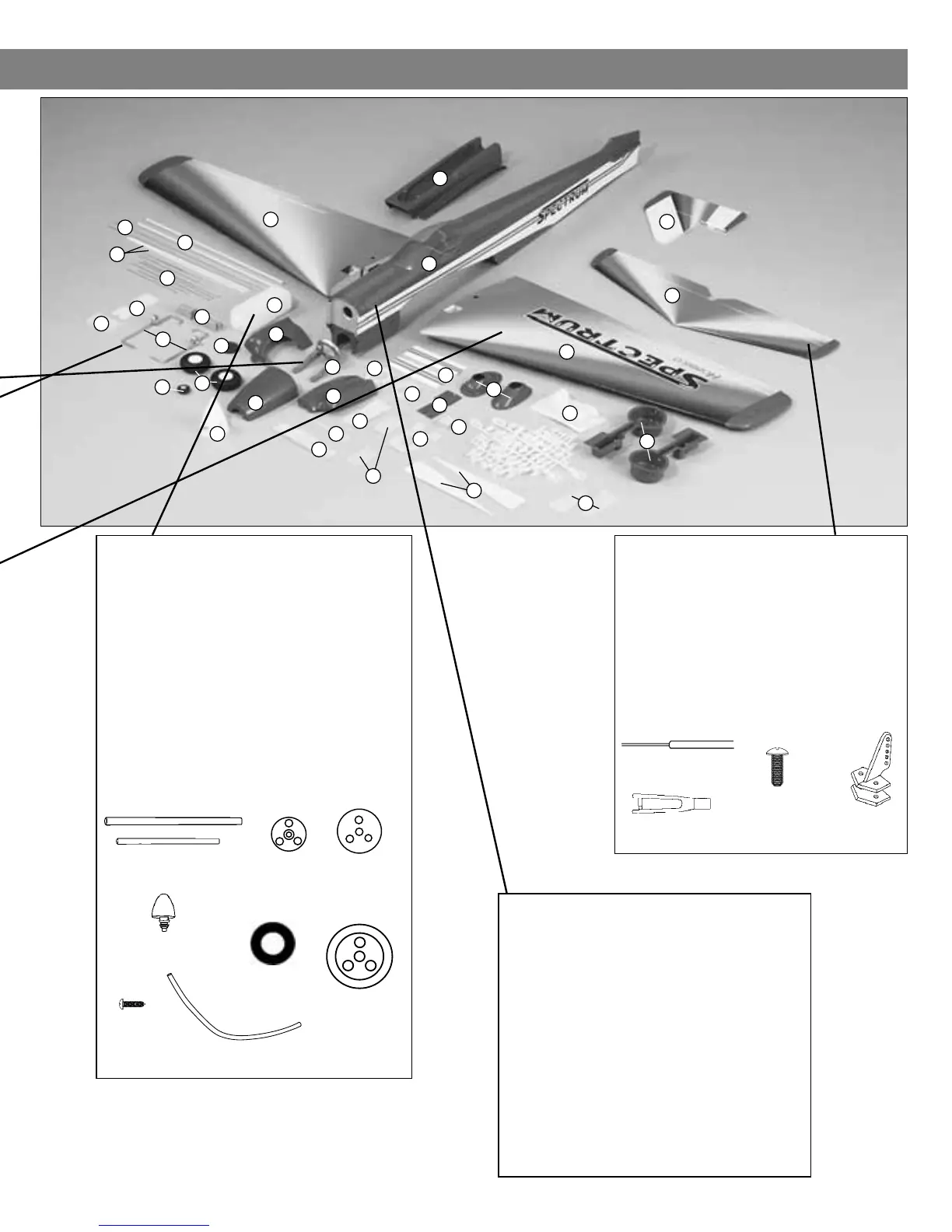

Hobbico Spectrum - Tail Assembly

3
Tail Assembly
Part # Quantity
23 Stabilizer and Elevator ..................1
24 Rudder and Fin .............................1
* Control Horns .................................2
* 2mm x 18mm Machine Screws ......4
* Clevises.........................................3
* Pushrod.........................................2
Clevis
2 x 18mm
Machine Screw
Fuse Parts
Part # Quantity
25 Fuselage............................................1
26 Stab Base ..........................................1
27 Lower Wing Fairing ...........................1
28 Spinner ..............................................1
29 Cowl Decal ........................................2
30 Engine Mount Spacers ......................2
31 Cowl Side (L).....................................1
32 Cowl Side (R) ....................................1
33 Cowl Top............................................1
34 Pilot....................................................1
35 Tuned Pipe Mount .............................1
3
3
24
27
25
23
11
26
20
34
19
29
35
28
33
31
32
21
13
10
17
30
30
16
15
18
12
22
13
5
4
6
8
9
14
2
1
Parts shown smaller than actual size (out of proportion).
Fuel Tank & Parts
• Parts Shown Below
Part # Quantity
21 Fuel Tank ...........................................1
22 Foam Fuel Tank Collar.......................2
* 3 x 18mm Screw ................................1
* Silicone Fuel Line...............................1
* Plastic Stopper Compression Disks
(One Large and One Small)...............2
* Fuel Pick-up Weight (Clunk) ..............1
* Rubber Tank Stopper.........................1
* Aluminum Fuel Tubing
(One Short and One Long) ................2
7
Plastic
Parts Tree
Plastic Stopper
Compression
Disks
Pushrod
Rubber Tank
Stopper
Silicone Fuel Line
Aluminum
Fuel Tubing
Clunk
3 x18mm
Screw
Foam Tank
Collar
Control
Horns
