3.4.2 Cigarette adapter and PDA connector:
reference section 7.2
3.4.3 CA-USB: USB connector

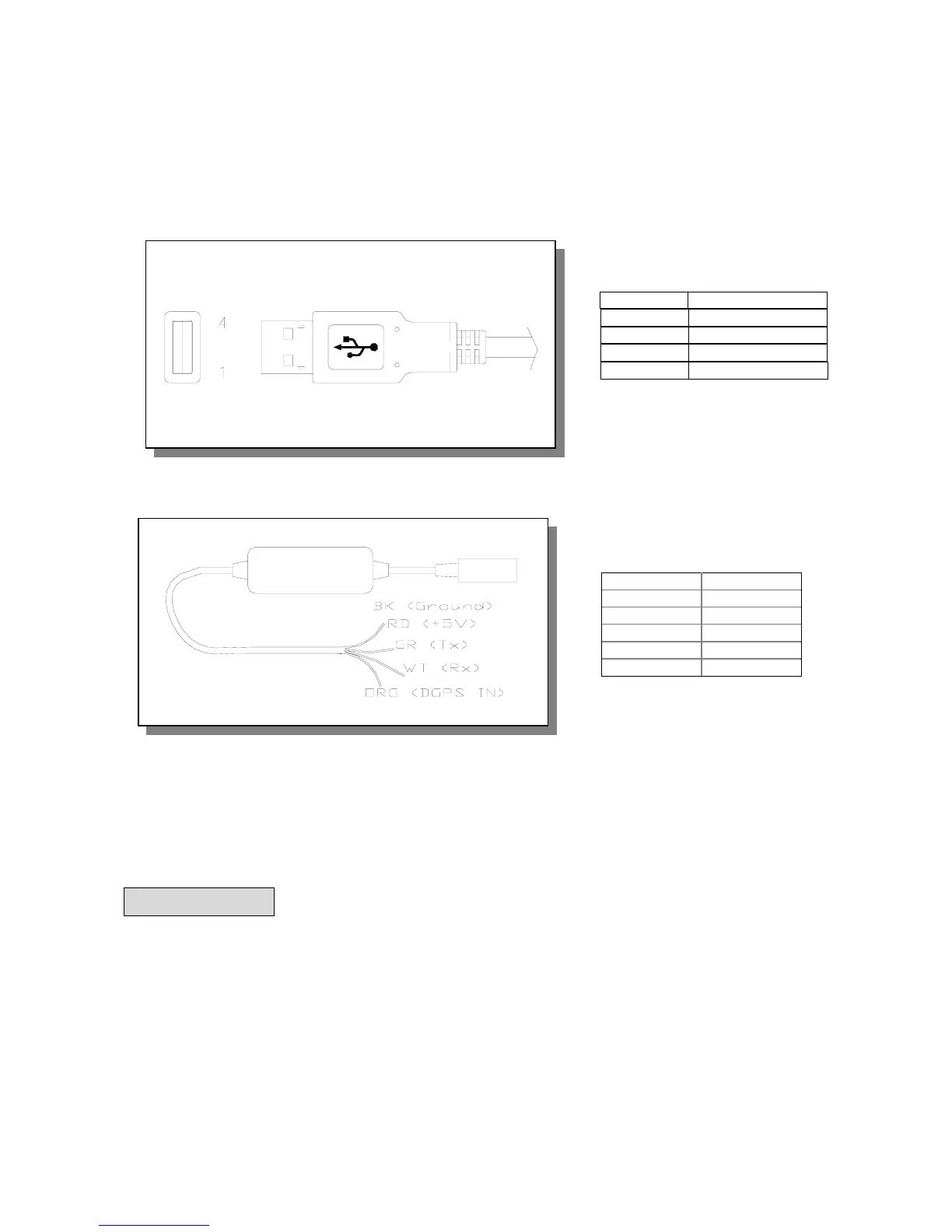

The USB A Type is equipped with GR-213. The function definition is as follows:
Pin Si
g
nal Name
1+5V
2D +
3D -
4 Ground
3.4.4 CA-6V30V: High power connector
3.5 Optional Cigarette Adapter
The optional cigarette adapter is with 2-meter cable for using in a car or boat.
Input voltage: DC12V - 26V
4. USB Driver
4.1 System Requirements
IBM, Pentium or above and other compatible PC; 16 MB and above memory; Windows 98/Me/2000; VGA
Graphic Adapter.
4.2 Installation
1. Copy entire <GR-213 USB> folder from CD to hard disk.
2. Connect GR-213 USB connector to computer. While the computer automatically starts the installation
program, please direct the driver to the <GR-213 USB> folder.
Color Signal
Black Ground
Red +6~30VDC
Green Tx
White Rx
Orange DGPS IN
