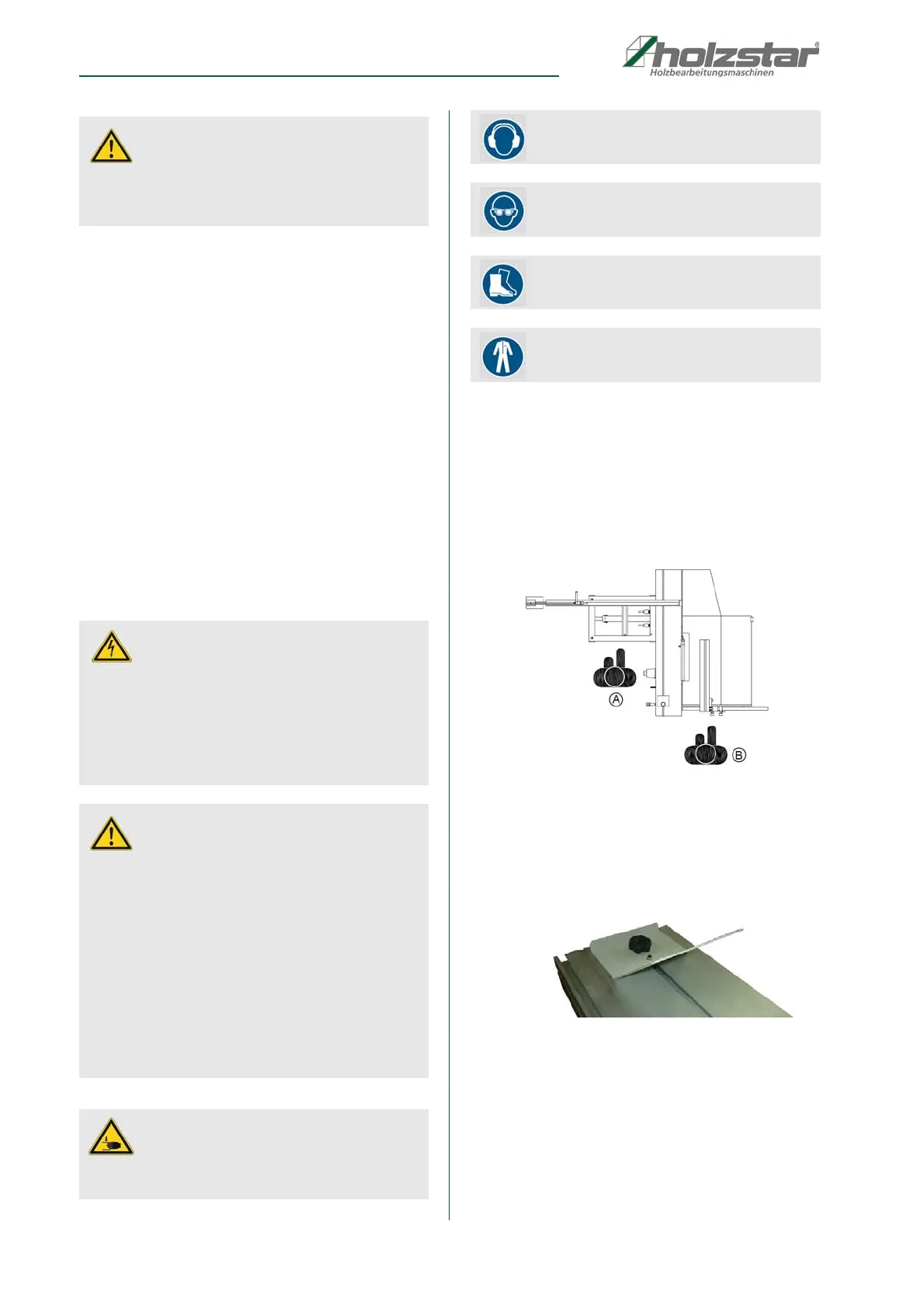

14 FKS 315-2000 E | Version 1.11
Operation of the Panel saw
When making electrical connections, make sure that the
characteristics (voltage, mains frequency, protection)
match those on the rating plate and for the motor.
Requirements for the power grid:
- Overvoltage protection and undervoltage protec-
tion
- Voltage deviation from the nominal value: 0.9-1.1
- Frequency deviation from the nominal value: 0.99-
1.01
- Hedging: 16 A
Step 1: Check that the panel saw is switched off.
Step 2: Connect the machine to the mains and check the
direction of motor rotation. If the direction of rota-
tion is wrong, two phases must be exchanged.
8 Operation of the Panel saw
With the sliding table of the sliding table saw large-sized
workpieces can be cut, without the stresses that would
occur through sawing on a stationary table.
In addition, the saw can be used as a regular table saw
to cut smaller workpieces.
Working position
Fig. 29: Working positions
Working positions on the sliding table saw:
A: Working with the sliding table
B: Working on the saw table
Workpiece downholder
Fig. 30: Workpiece downholder
Before the sawing process, place the workpiece hold-
down in a suitable position to the workpiece to prevent
the workpiece from striking back during sawing (kickback
protection).
ATTENTION!
The three phases must be connected in such a way
that the saw blade moves according to the cutting di-
rection shown on the housing.
DANGER!
Danger of electrocution!
There is danger to life when in contact with live com-
ponents. Switched on electrical components can
cause uncontrolled movements and lead to serious
injuries.
- Disconnect the power before starting adjustments to
the machine.
WARNING!
Risk of death!
There is danger to life for the operator and other per-
sons if they do not adhere to the following rules.
- The panel saw may only be operated by a trained
and experienced person.
- The operator may not work while under the influ-
ence of alcohol, drugs or medication.
- The operator must not work when he is tired or suf-
fering from concentration-impairing illnesses.
- The panel saw may only be operated by one person.
Other persons must keep away from the work area
during operation.
CAUTION!
Crushing!
Incorrect work on the machine can cause injury to the
upper limbs.
Wear ear protection!
Wear safety glasses!
Wear safety shoes!
Wear protective clothing!
