To make miter cuts with the bevel stop, proceed as
follows:

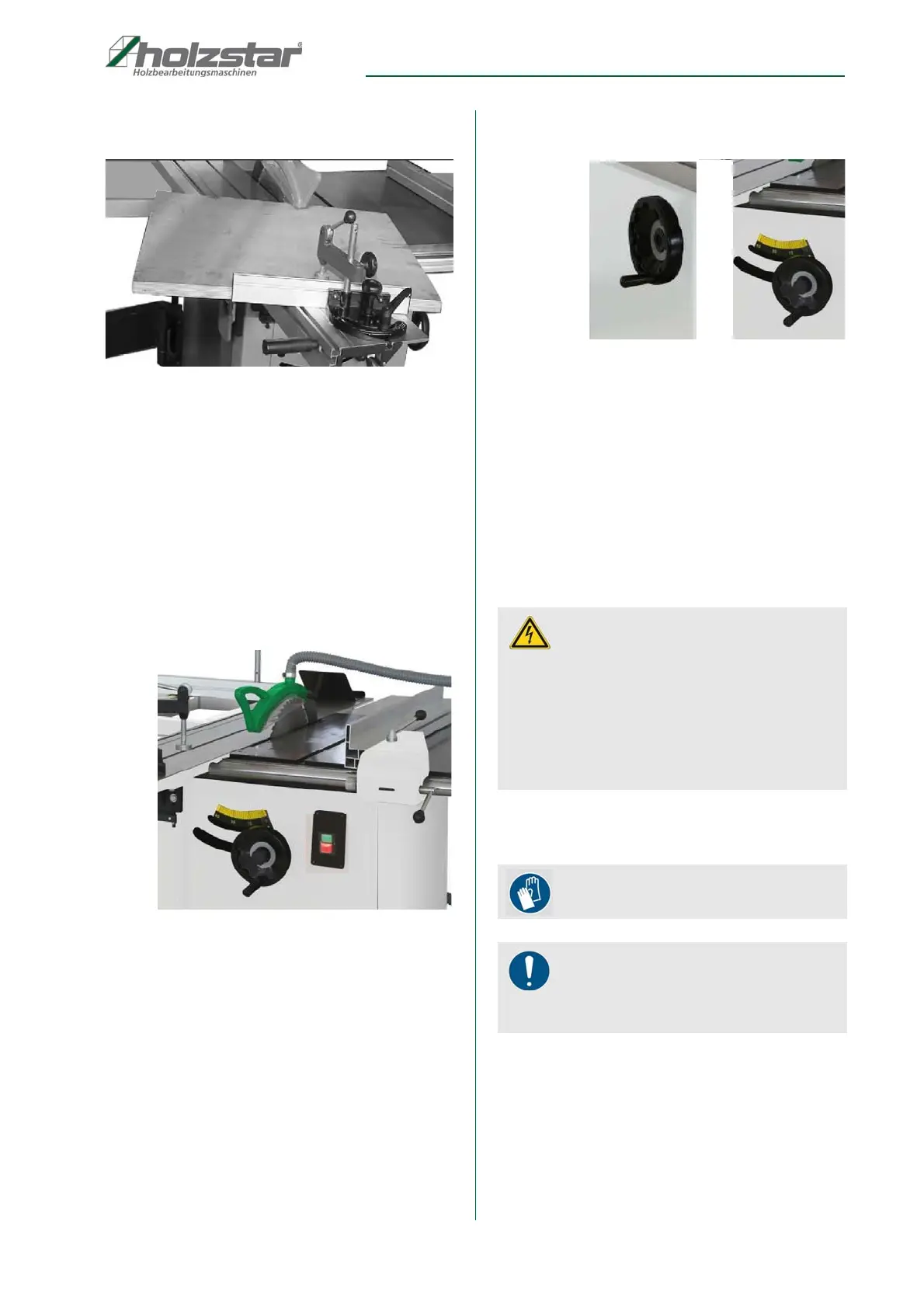

Fig. 42: Miter cut with angle stop
Step 1: Mount the angle stop on the sliding carriage.
Step 2: Adjust the stop to the desired angle and secure
with the clamping lever.
Step 3: Place the workpiece on the saw table and clamp
it with the quick release.
Step 4: Switch on the suction device, switch on the saw
and carry out the sawing process.
8.4 Height adjustment
Fig. 43: Handwheel for height adjustment of the saw blade
Step 1: Release the handwheel clamping lever for adju-
sting the height of the saw blade.
Step 2: Adjust the desired position of the saw blade with
the handwheel and lock the handwheel with the
clamping lever again.
8.5 Adjust inclination angle
Handwhee l for adjusting the angl e of inclination (left)
Fig. 44: Handwheel for adjusting the angle of inclination (left)
Step 1: Release the handwheel clamping lever to adjust
the saw blade inclination angle (Fig. 44, left).
Step 2: Use the handwheel to set the desired angle of in-
clination of the saw blade using the scale (Fig.
44, right). Then lock the handwheel with the
clamping lever again.
9 Care, Maintenance and Repair
9.1 Care after the end of work
Step 1: Disconnect the power plug from the socket.
Step 2: Empty and clean the suction device.
Step 3: Vacuum the machine off sawdust and sawdust
and clean with a dry cloth and / or compressed
air (wear protective goggles!). In particular, the
guide rails must be kept clean.
DANGER!
Danger of electrocution!
There is danger to life when in contact with live com-
ponents. Switched on electrical components can
cause uncontrolled movements and lead to serious
injuries.
- Before starting any cleaning or maintenance work,
switch off the machine and disconnect the power
plug.
Wear safety gloves!
NOTE!
Never use harsh cleaning agents for cleaning. This
can lead to damage or destruction of the device.
