Setting up and connection
FKS 315-2000 E | Version 1.11 13

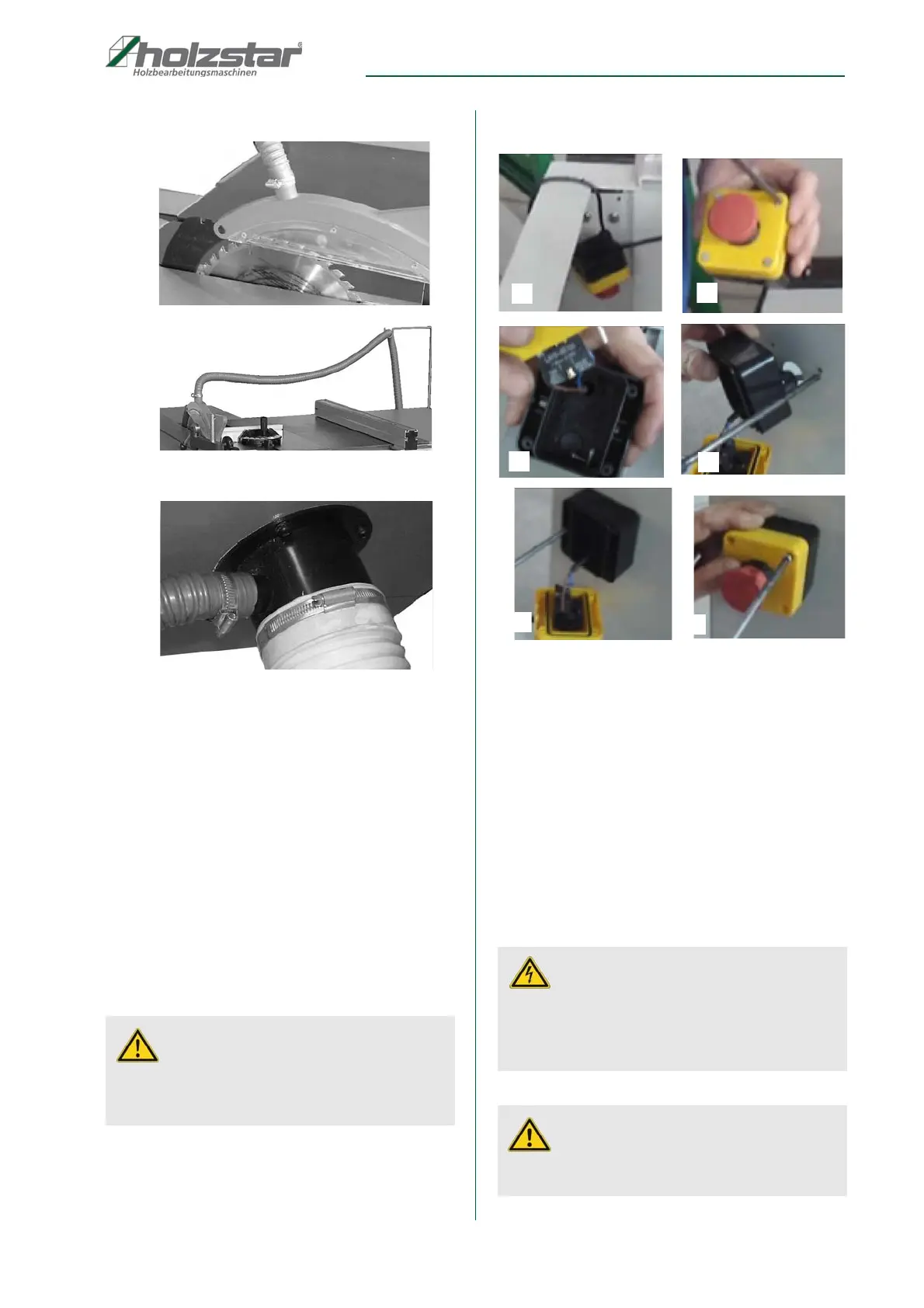

Mount suction hoses
Fig. 26: Mount suction hoses
Fig. 27: Mount suction hoses
Step 1: Secure the 38 mm suction hose to the saw blade
guard with a hose clamp, then insert the hose
into the hose guide. Make sure that the hose
runs freely and there is enough clearance to the
work surface.
Step 2: Attach the other end of the suction hose to the
suction connection on the machine housing with
a hose clamp.
Step 3: Secure the 100 mm suction hose with a hose
clamp to the suction connection on the machine
housing. Attach the other end of the suction
hose with a hose clamp to the intake manifold of
the extraction system.
Mount EMERGENCY STOP button
Fig. 28: Mount EMERGENCY STOP button
Step 1: Remove the EMERGENCY STOP button from
the shelf (1) and unscrew the yellow cover from
the housing (2).
Step 2: Remove the two self-tapping screws from the
black EMERGENCY STOP button housing (3)
and insert them into the mounting holes of the
housing. Position the housing on the outside of
the machine (4) and screw it with the self-tap-
ping screws (5).
Step 3: Screw the yellow cover onto the housing(6).
7.3 Electrical connection
ATTENTION!
To ensure sufficient stability of the machine, it should
be screwed to the ground. There are 4 holes on the
machine housing for this purpose.
DANGER!
Danger of electrocution!
There is danger to life when in contact with live com-
ponents. Switched on electrical components can
cause uncontrolled movements and lead to serious
injuries.
ATTENTION!
All work on the electrical installation may only be car-
ried out by a qualified electrician.
