7

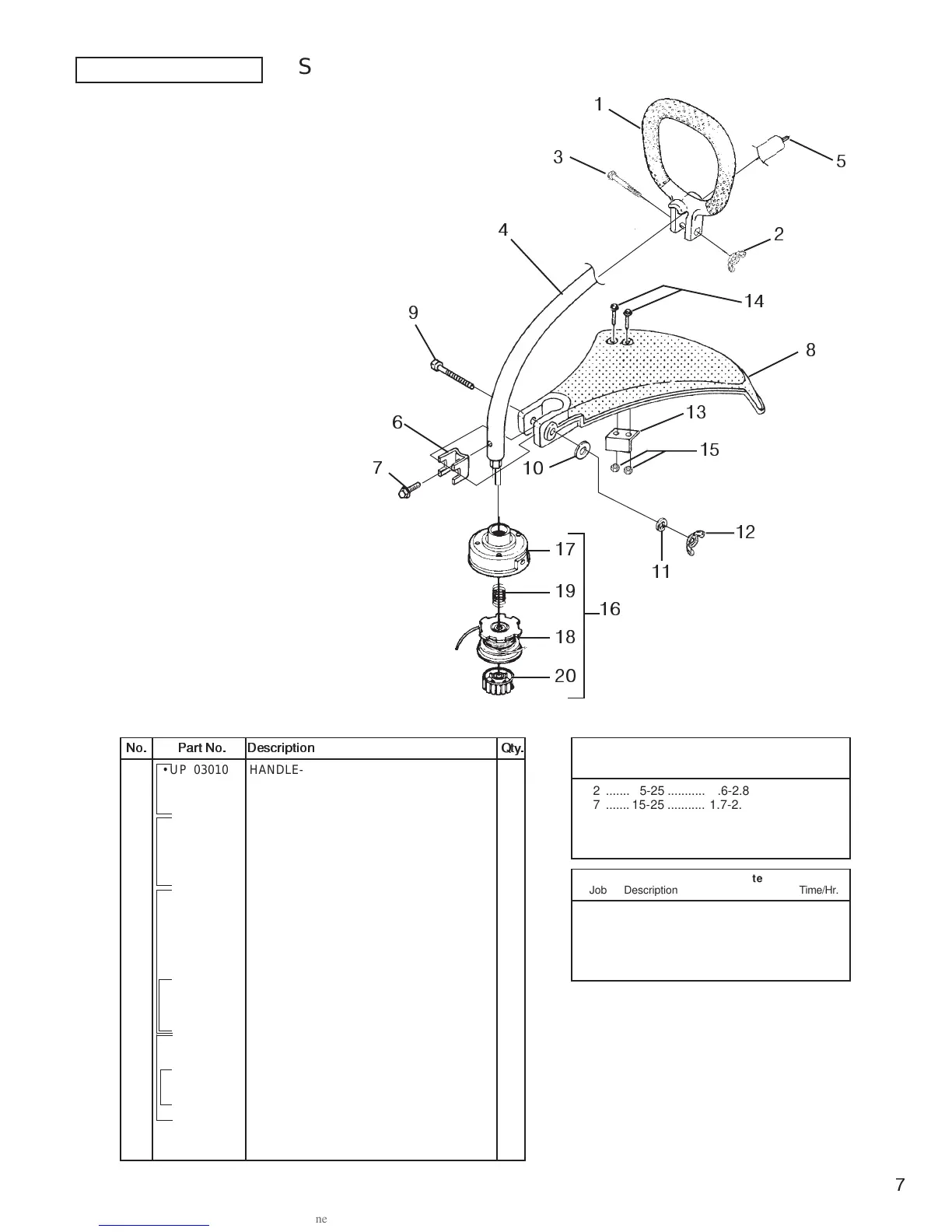

SHAFT - SPOOL & STRING - GRASS DEFLECTOR
9
8
4
14
13
12
10
6
15
7
1 •UP 03010 HANDLE-Anti-Vibe 1
2 UP 04262 NUT-Wing, Washer Faced (1/4-20) 1
3 UP 06523 SCREW-Cap Hex Hd. 1
4 •UP 04555 DRIVESHAFT HOUSING ASSY. 1
5 UP 03031 SHAFT-Flexible 1
6 UP 04137 CLAMP 1
7 UP 04256 SCREW-Sems Hex Hd. (#10-24 X 3/8") 1
8 •UP 06710 DEFLECTOR & BLADE KIT (55 Deg.) 1
9 UP 06523 SCREW-Cap Hex Hd. (10-24 X 2") 1
10 UP 03415 WASHER-Flat (1/4") 1
11 UP 03409 WASHER-Lock (1/4") 1
12 UP 04262 NUT-Wing, Washer Faced (1/4-20) 1
13 •UP 04119 BLADE-Cut-Off 1
14 UP 04159 SCREW-Mech. Hex Hd. (10-24 X 7/8") 2
15 UP 04150 NUT-Hex (10-24) 2
16 •DA 03001 A STRINGHEAD-Complete (.080") 1
17 UP 06567 HOUSING & EYELET (Dual Line) 1
18 •UP 00145 SPOOL & STRING (.080") 1
19 UP 06526 SPRING-Compression 1
20 UP 04273 RETAINER-Spool (R.H. Thread, Black) 1
No. Part No. Description Qt y.
Warranty Flat Rate
Job Description Time/Hr.
2 ....... 5-25 ........... .6-2.8
7 ....... 15-25 ........... 1.7-2.8
12 ....... 5-25 ........... .6-2.8
15 ....... 30-40 ........... 3.4-4.5
FM10 .. Stringhead Assy. ......................... .2
FN12 ... Driveshaft.................................... .3
FN13 ... Driveshaft Hsg. ........................... .3
FN16 ... Deflector-Grass .......................... .2
FD20 ... Front Handle ............................... .2
Torque Specs
Item Required
No. In/Lbs Nm Loctite
11
16
18
20
17
19
5
3
1
2
TrimLite ....................... (UT20804)
6/18/2001
