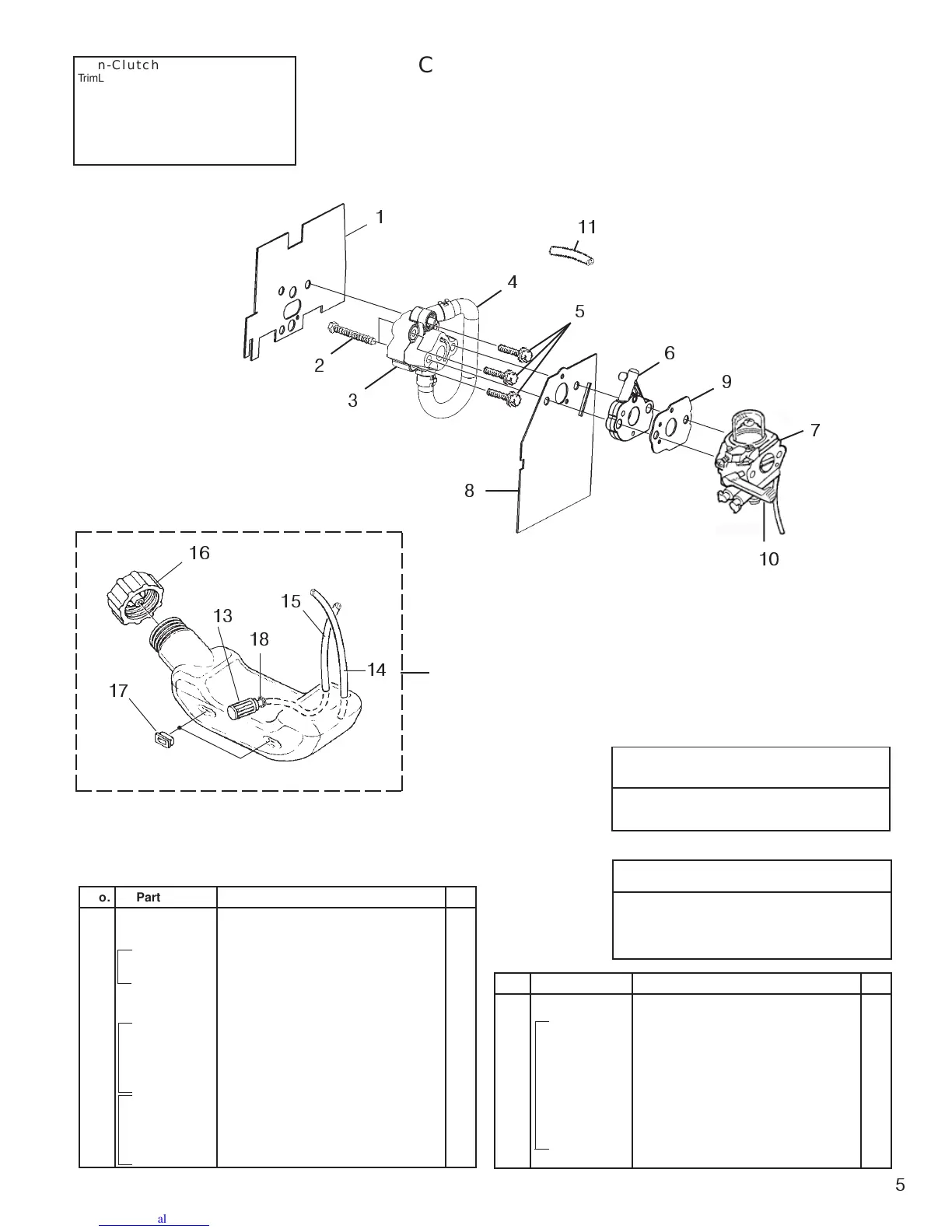

CARBURETOR - FUEL TANK
12
13
15
14
17
16
No. Part No. Description Qty.
2 ....... 30-40 ........... 3.4-4.5
5 ....... 40-50 ........... 4.5-5.6 ........ Red 262
Warranty Flat Rate
Job Description Time/Hr.
FF17 ... Manifold ....................................... .3
FF10 ... Carburetor Rep. .......................... .3
FF16 ... Fuel Tank ..................................... .3
FF12 ... Fuel/Return Line ......................... .3
Torque Specs
Item Required
No. In/Lbs Nm Loctite
No. Part No. Description Qty.
1 UP 06339 GASKET-Heat Dam to Cylinder 1
2 UP 04307 SCREW-Shoulder 2
3 • UP 06344 HEAT DAM Complete 1
4 UP 06337 TUBE-Tuned 1
5 UP 04140 SCREW-Sems (10-24 x 1") 3
6 UP 06338 ADAPTOR 1
7 • UP 06343 CARBURETOR KIT (Non Clutch)1
8 UP 06333 GASKET-Adaptor to Heat Dam 1
9 UP 06335 GASKET-Carburetor to Adaptor 1
10 UP 06342 LEVER-Choke 1
7 • UP 06825 CARBURETOR KIT (Clutch)1
8 UP 06333 GASKET-Adaptor to Heat Dam 1
9 UP 06335 GASKET-Carburetor to Adaptor 1
10 UP 06357 LEVER-Choke 1
11 UP 06336 TUBE-Rubber 1
12 •UP 06692 FUEL TANK ASSY. 1
13 UP 03871 FILTER-Fuel 1
14 UP 06935 TUBING-Rubber (5.5") 1
15 01439 29 TUBING-Rubber (7.25") 1
16 UP 04708 FUEL CAP 1
17 UP 03501 BUMPER-Rubber 3
18 UP 03913 CLAMP 1
18
1
2
3
8
4
5
6
9
7
10
6/18/2001
Non-Clutch
TrimLite ....................... (UT20804)
Trim 'n Edge ............... (UT20805)
Easy Reach ............... (UT20806)
Clutch
VersaTool .................... (UT20816, UT20838)
Easy Reach ............... (UT20832, UT20837)
Trim 'n Edge ............... (UT20833)
