4
1
•
UP 06345 SHORT BLOCK (Non-Clutch) 1
•
UP 07919 SHORT BLOCK (Clutch) 1
2
•
UP 06347 PISTON & ROD ASSY. 1
3 UP 06346 RING-Piston 1
4
•
UP 06348 CYLINDER ASSY. 1
5 UP 03857 GASKET-Cylinder 1
6 UP 06339 GASKET-Heat Dam to Cylinder 1
7 UP 06333 GASKET-Adaptor to Heat Dam 1
8 UP 06335 GASKET-Adaptor to Carburetor 1
9 UP 06334 GASKET-Muffler 1
10 UP 04345 SCREW-Sems (12-24 X 3/4") 3
11
•
UP 00019 CRANKCASE COVER ASSEMBLY 1
12 UP 03862 GASKET-Crankcase Cover (Also 1
included w/short block)
13 UP 04295 SCREW-Sems (10-24 X 1/2") 4
14
•
UP 04099 MUFFLER GUARD 3
15 UP 03897 SCREW-Plastite (10-14 X 1/2") 2

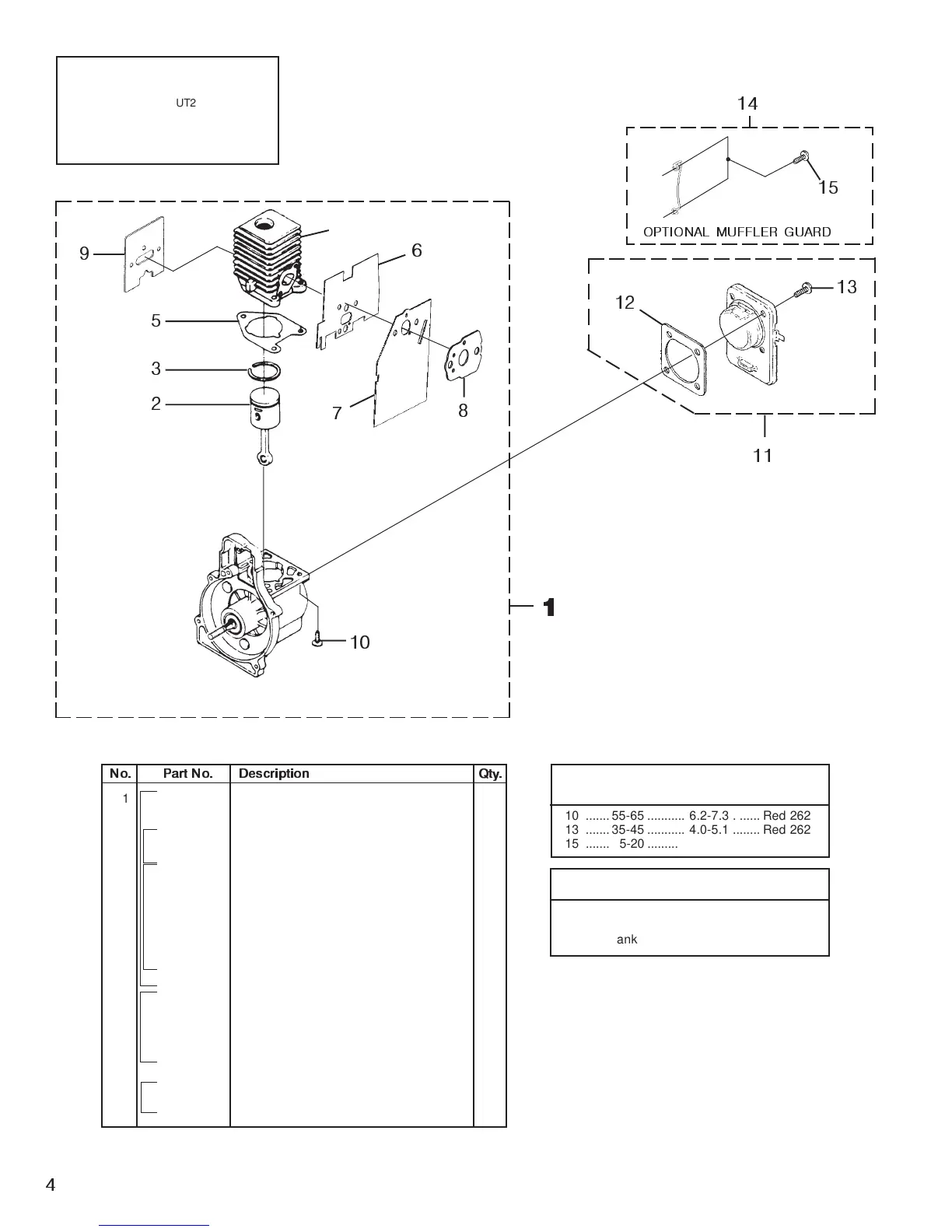

ENGINE INTERNAL
14
15
13
12
3
2
5
OPTIONAL MUFFLER GUARD
4
1
No. Part No. Description Qty.
11
10 ....... 55-65 ........... 6.2-7.3 ........ Red 262
13 ....... 35-45 ........... 4.0-5.1 ........ Red 262
15 ....... 5-20 ........... .6-2.3
Warranty Flat Rate
Job Description Time/Hr.
10
7
FB10 ... Partial Rebuild ............................. 1.0
FB20 ... Short Block .................................. 1.0
FD25 ... Crankcase Cover ....................... .3
Torque Specs
Item Required
No. In/Lbs Nm Loctite
9
6
8
6/18/2001
Non-Clutch
TrimLite ....................... (UT20804)
Trim 'n Edge ............... (UT20805)
Easy Reach ............... (UT20806)
Clutch
VersaTool .................... (UT20816, UT20838)
Easy Reach ............... (UT20832, UT20837)
Trim 'n Edge ............... (UT20833)
