3
23
14
5
4
17
18
16
19
20
24
21
22
7
8
No. Part No. Description Qty.
3 ....... 30-40 ......... 3.4-4.5 ...... Blue 242
4 ....... 120-180 ....... 13.6-20.3
16 ....... 10-20 ........... 1.1-2.3
23 ....... 30-50 ......... 3.4-5.6
24 ....... 30-40 ......... 3.4-4.5
30 ....... 30-50 ......... 3.4-5.6
Warranty Flat Rate
Job Description Time/Hr.
FA11 ... Ignition Mod. ................................ .3
FA12 ... Ground Lead ............................... .3
FG10 .. Starter ..........................................4
FD12 ... Engine Housing, Rear ................. .4
FF13 ... Trigger, Throttle cable ..................3
Torque Specs
Item Required
No. In/Lbs Nm Loctite
12
11
13
10
3
2
6

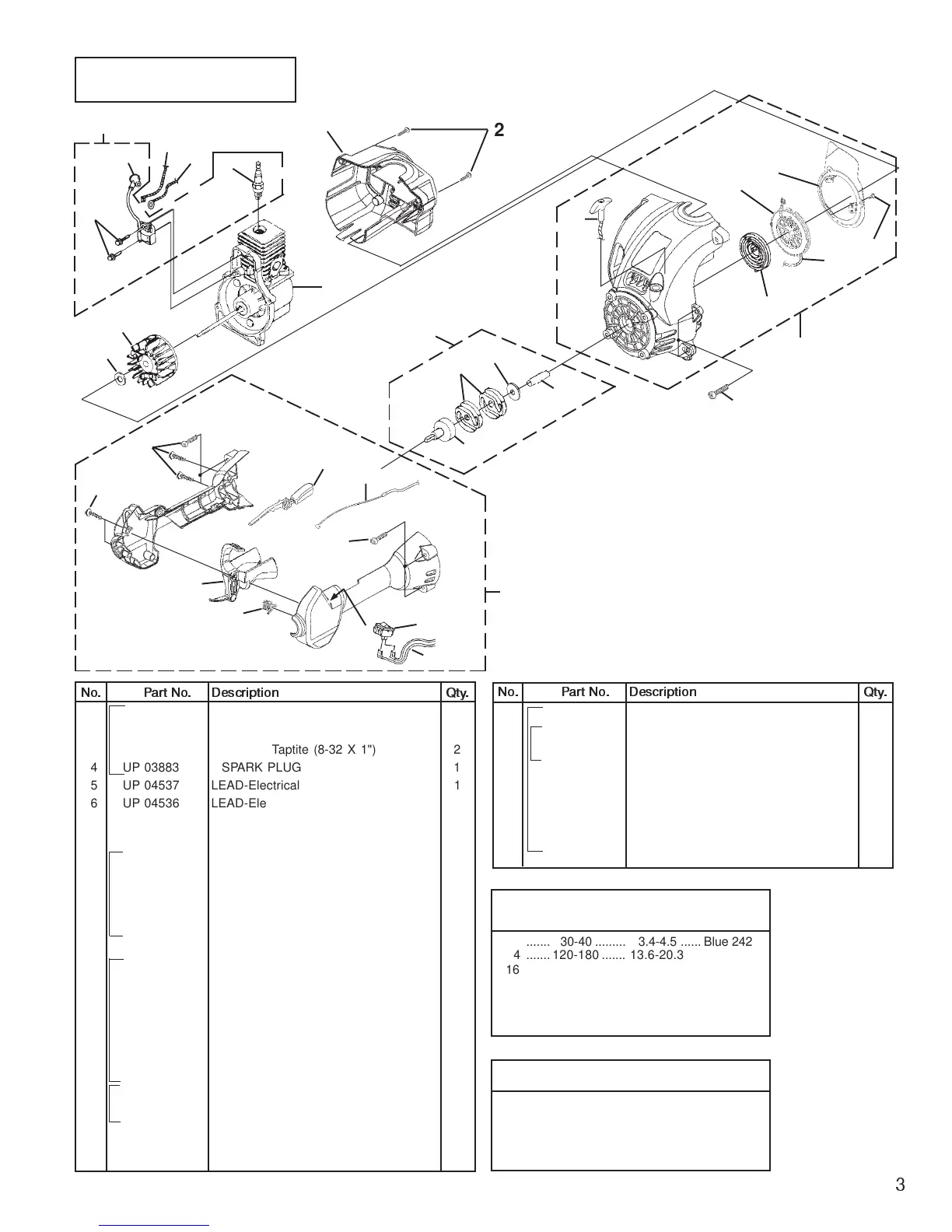

IGNITION - ROTOR - STARTER - CLUTCH
No. Part No. Description Qty.
{
29
32
30
25
30
28
31
27
30
1 •UP 05270 IGNITION KIT 1
2 UP 03868 TERMINAL & COVER 1
3 UP 03896 SCREW-Taptite (8-32 X 1") 2
4 UP 03883 SPARK PLUG 1
5 UP 04537 LEAD-Electrical 1
6 UP 04536 LEAD-Electrical 1
7 UP 03009 ROTOR KIT 1
8 UP 03906 WASHER-Flat 1
9 •UP 00034 CLUTCH AND DRUM KIT 1
10 UP 04118 SPACER 1
11 UP 04275 WASHER-Flat 1
12 UP 04103 CLUTCH 2
13 UP 04104 CONNECTOR AND DRUM 1
14 UP 07919 SHORT BLOCK (See Engine Internal) 1
15 •UP 02962 COMPLETE STARTER ASSEMBLY 1
16 UP 06910 SCREW-Thread Form (8-16 X 1/2") 3
17 UP 06380 BAFFLE-Air 1
18 UP 03012 PULLEY-Starter 1
19 UP 03912 ROPE-Starter (42") 1
20 UP 03917 SPRING & CONTAINER 1
21 UP 03026 GRIP-Starter (Yellow) 1
22 •UP 02965 HOUSING-Rear Kit 1
23 UP 03895 SCREW-Plastite (10-14 X 7/8") 2
24 UP 03406 SCREW-Taptite (10-24 X 3/4") 4
25 •UP 06755 CONTROL HANDLE ASSY. 1
26 •UP 03207 TRIGGER-Throttle 1
27 UP 03210 SPRING 1
28 UP 03173 THROTTLE INTERLOCK 1
29 UP 05271 SWITCH 1
30 UP 04247 SCREW-Taptite (10-14 X 1") 9
31 UP 03172 CABLE-Throttle 1
32 UP 03174 LEAD-Electrical 1
26
Clutch
VersaTool .................... (UT20816, UT20838)
Easy Reach ............... (UT20832, UT20837)
1
9
15
6/18/2001
