No. Part No. Description Qty.

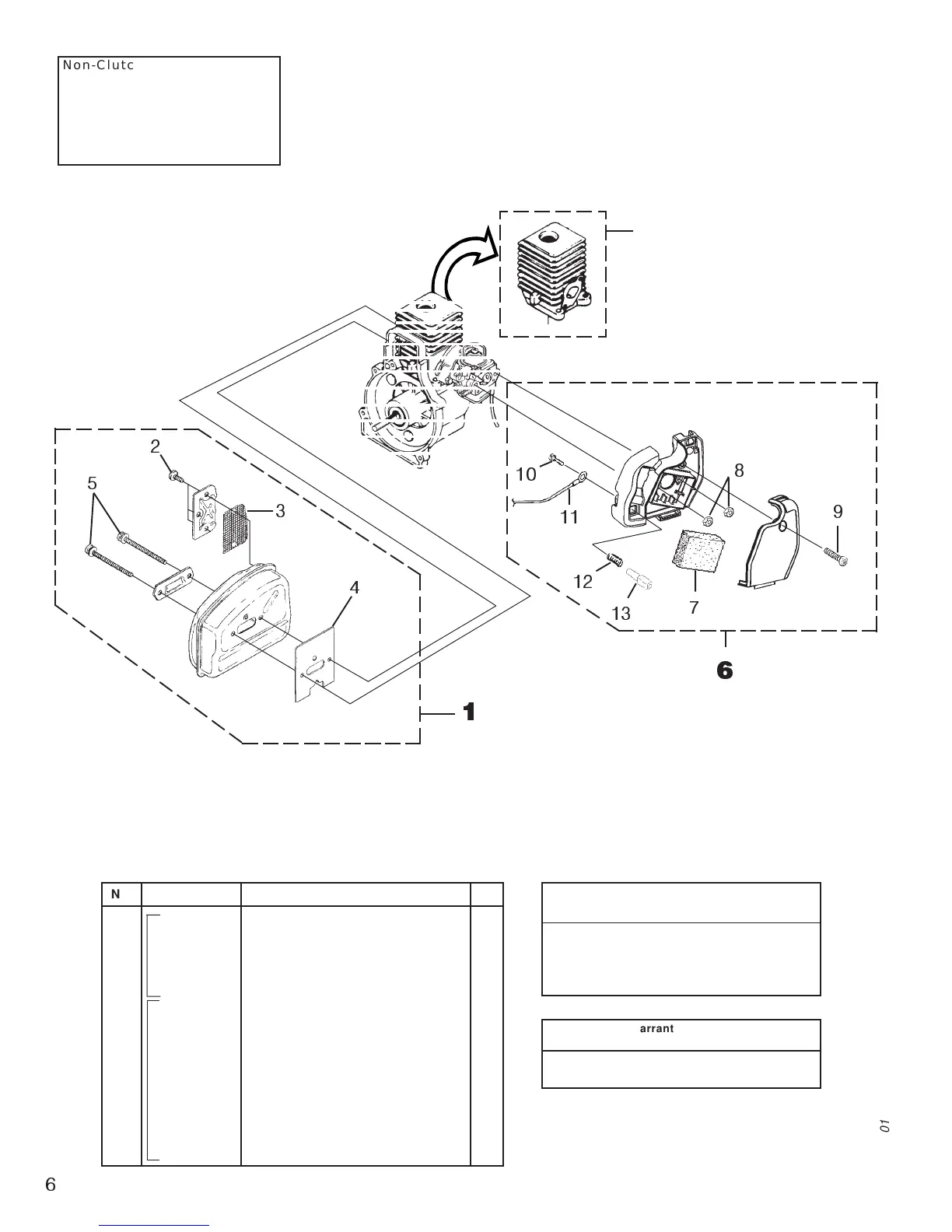

MUFFLER - AIR CLEANER
*
See Engine Internal page.
1
2
5
3
4
6
Warranty Flat Rate
Job Description Time/Hr.
2 ....... 25-35 ........... 2.8-4.0
5 ....... 50-60 ........... 5.6-6.8
8 ....... 30-40 ........... 3.4-4.5
FB18 ... Muffler-Replace .......................... .3
FF42 ... Air Filter Assy. ............................. .2
Torque Specs
Item Required
No. In/Lbs Nm Loctite
1
•
UP 06340 MUFFLER ASSY. 1
2 UP 04248 SCREW, Taptite- (8-32 X 3/8") 3
3 UP 04629 SCREEN-Spark 1
4 UP 06334 GASKET-Muffler 1
5 UP 06941 SCREW, Truss Hd. - (10-24 X 2.188) 2
6
•
UP 06349 AIR FILTER KIT 1
7 UP 04270 FILTER-AIR 1
8 UP 03885 NUT-Hex (10-24) 2
9 UP 04235 SCREW-Slotted Tr. Hd (8-16 x 1
For Non-Clutch models
10 UP 04082 SCREW-Thread Form (6-19 x 1/2") 1
11 UP 04690 LEAD-Electrical 1
12 UP 04716 SPRING-Compression 1
13 UP 06341 BUTTON-Switch 1
7
8
11
12
13
9
10
6/18/2001
Non-Clutch
TrimLite ....................... (UT20804)
Trim 'n Edge ............... (UT20805)
Easy Reach ............... (UT20806)
Clutch
VersaTool .................... (UT20816, UT20838)
Easy Reach ............... (UT20832, UT20837)
Trim 'n Edge ............... (UT20833)
To Next Page
