2

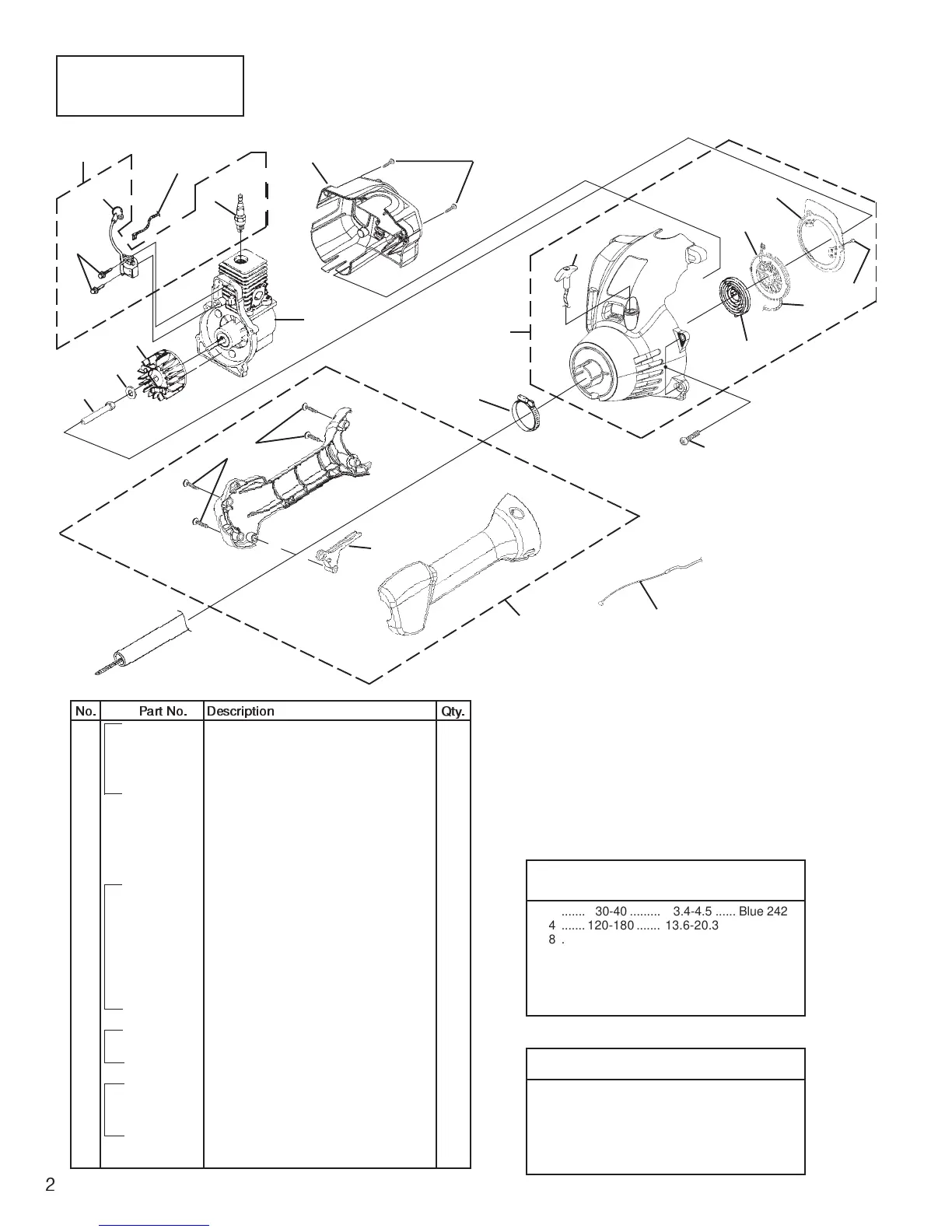

IGNITION - ROTOR - STARTER
No. Part No. Description Qty.
3 ....... 30-40 ......... 3.4-4.5 ...... Blue 242
4 ....... 120-180 ....... 13.6-20.3
8 ....... 100-150 ....... 11.3-16.9
11 ....... 10-20 ......... 1.1-2.3
19 ....... 30-50 ......... 3.4-5.6
20 ....... 30-40 ......... 3.4-4.5
23 ....... 30-50 ......... 3.4-5.6
Warranty Flat Rate
Job Description Time/Hr.
9
5
3
2
4
12
13
11
14
15
20
16
6
7
8
FA11 ... Ignition Mod. ................................ .3
FA12 ... Ground Lead ............................... .3
FG10 .. Starter ......................................... .4
FD12 ... Engine Housing, Rear................. .4
FF13 ... Trigger, Throttle cable ................. .3
Torque Specs
Item Required
No. In/Lbs Nm Loctite
1
•UP 06784 IGNITION KIT 1
2 UP 03868 TERMINAL & COVER 1
3 UP 03896 SCREW-Taptite (8-32 X 1") 2
4 UP 03883 SPARK PLUG 1
5 UP 04690 LEAD-Electrical 1
6 UP 03009 ROTOR KIT 1
7 UP 04241 WASHER-Flat 1
8 UP 04271 CONNECTOR-Drive (.250) 1
9 UP 06345 SHORT BLOCK (See Engine Internal) 1
10
•UP 04743 COMPLETE STARTER ASSEMBLY 1
11 UP 06910 SCREW-Thread Form (8-16 X 1/2") 3
12 UP 04744 BAFFLE-Air 1
13 UP 03012 PULLEY-Starter 1
14 UP 03912 ROPE-Starter (42") 1
15 UP 03917 SPRING & CONTAINER 1
16 UP 03026 GRIP-Starter (Yellow) 1
17 UP 03111 CLAMP 1
18 •UP 02965 HOUSING-Rear Kit 1
19 UP 03895 SCREW-Truss (10-14 X 7/8") 2
20 UP 03406 SCREW-Taptite (10-24 X 3/4") 4
21 •UP 03091 CONTROL HANDLE ASSY. 1
22 UP 04559 TRIGGER 1
23 UP 03895 SCREW-Truss Hd. (10-14 x 7/8") 9
24 UP 04557 CABLE-Throttle 1
©2001, John Deere Consumer Products, Inc.
19
18
17
7
22
24
23
21
1
10
Non-Clutch
TrimLite ....................... (UT20804)
Trim 'n Edge ............... (UT20805)
Easy Reach ............... (UT20806)
6/18/2001
