Start-up
ding terminal ( ) (H) (see figure 4).
• Connect the switched phase con-
ductor to move down the motor for
the selected channel to the corres-
ponding terminal (
) (I) (see figure 4).
The phase conductor connection
is marked with an arrow pointing
to the centre of the device, the
switched phase conductor with an
arrow pointing towards outside. To
connect or loosen the conductor,
the white actuation lever at the top
of the clamp has to be pressed.
The network terminals may be
used only for connecting the po-
wer supply to the device or for
connecting loads to the device.
The connection (looping through)
of conductors via the network
terminals of the device to other
devices is not permitted!
• Connect the bus using the supplied
connecting cable:

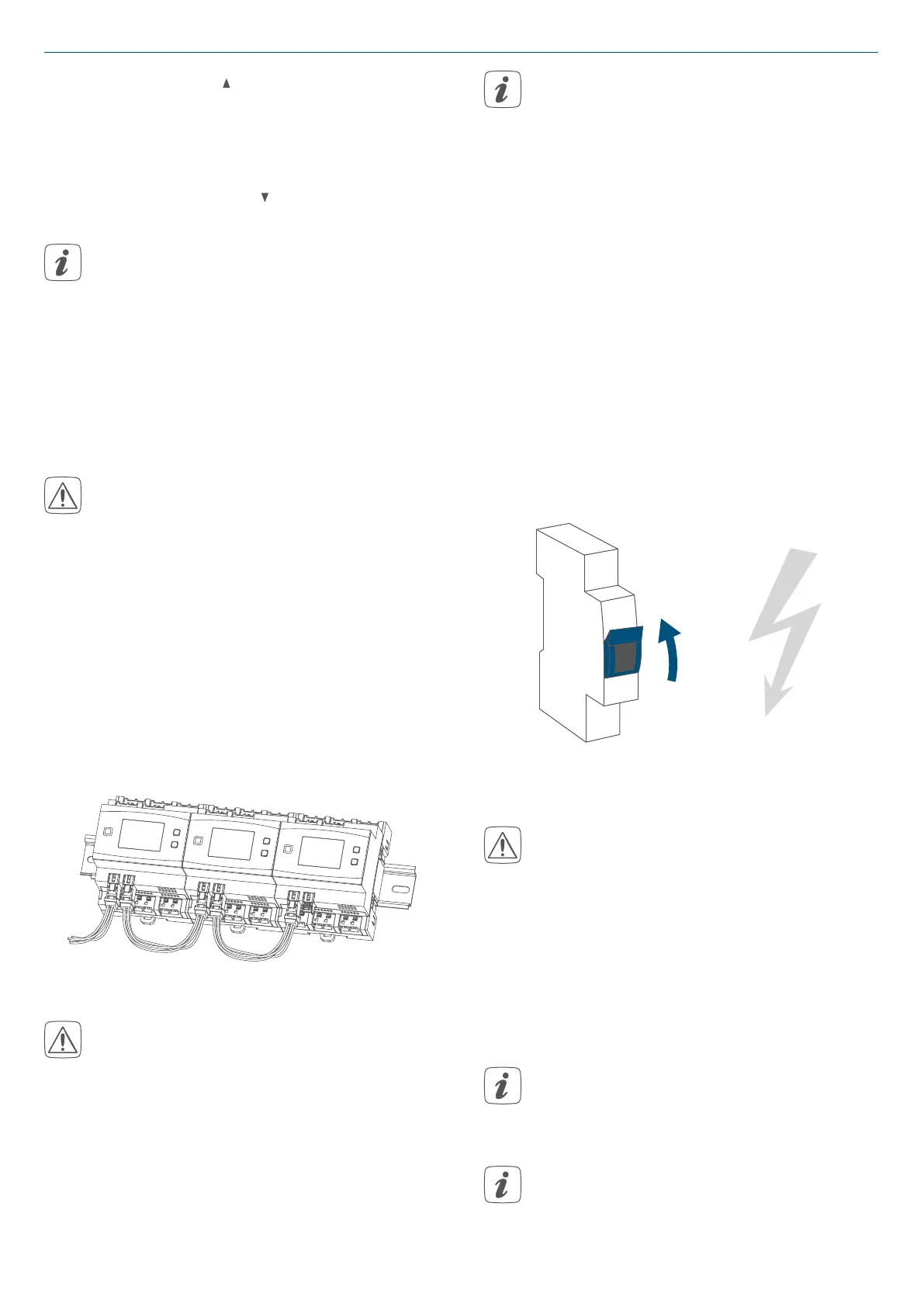

Figure 5
For electrical safety reasons, only
the supplied HomematicIP Wired
Bus Cable may be used for con-
necting the device to the
HomematicIP Wired bus. Further-
more, an eQ-3 HomematicIP
Wired Bus Cable with other
lengths (available as accessory)
can be used.
The bus connections (E) and (F)
are switched in parallel. However,
the incoming or outgoing bus
cable can be connected to any of
the two connections.
• Use the supplied bus blind plug, if
bus connection 1 (E) or bus con-
nection 2 (F) are not needed.
• Reattach the cover of the power
distribution panel.
• Switch the fuse of the power cir-
cuit on again to activate the pairing
mode of the device (see „6.4 Pai-
ring“ on page 22).
ON
Figure 6
After installation and before con-
necting the device to the app,
simple operating functions (e.g. for
test purposes) are available directly
on the device (see „7 Operation“
on page 25).
6.4 Pairing
Please read this entire section
before starting the pairing proce-
dure.
First, set up your HomematicIP
Wired Access Point to enable
operation of other HomematicIP
