Homematic IP HmIPW-DRBL4 User Manual

19
HomematicIP – Smart living, simply comfortable
4 HomematicIP – Smart
living, simply comfortable
This device is part of the HomematicIP
smart home system and works with the
HomematicIP protocol. All devices of
the system can be configured com-
fortably and individually with the user
interface of the Central Control Unit
CCU3 or flexibly via the HomematicIP
smartphone app in connection with
the HomematicIP cloud. All available
functions provided by the system in
combination with other components
are described in the HomematicIP
Wired Installation Guide. All current
technical documents and updates are
provided at
www.eQ-3.com.
5 Function and device
overview
The HomematicIP Wired Blind Actu-
ator – 4 channels can be easily ins-
talled on a DIN rail within a distribution
board. Once installed, the device con-
trols connected blinds, shutters and
awnings via four channels.
The blind actuator oers comfortab-
le control of connected blind, shutter
and awning drives via connected push-
buttons, remote controls or the free
HomematicIP app.

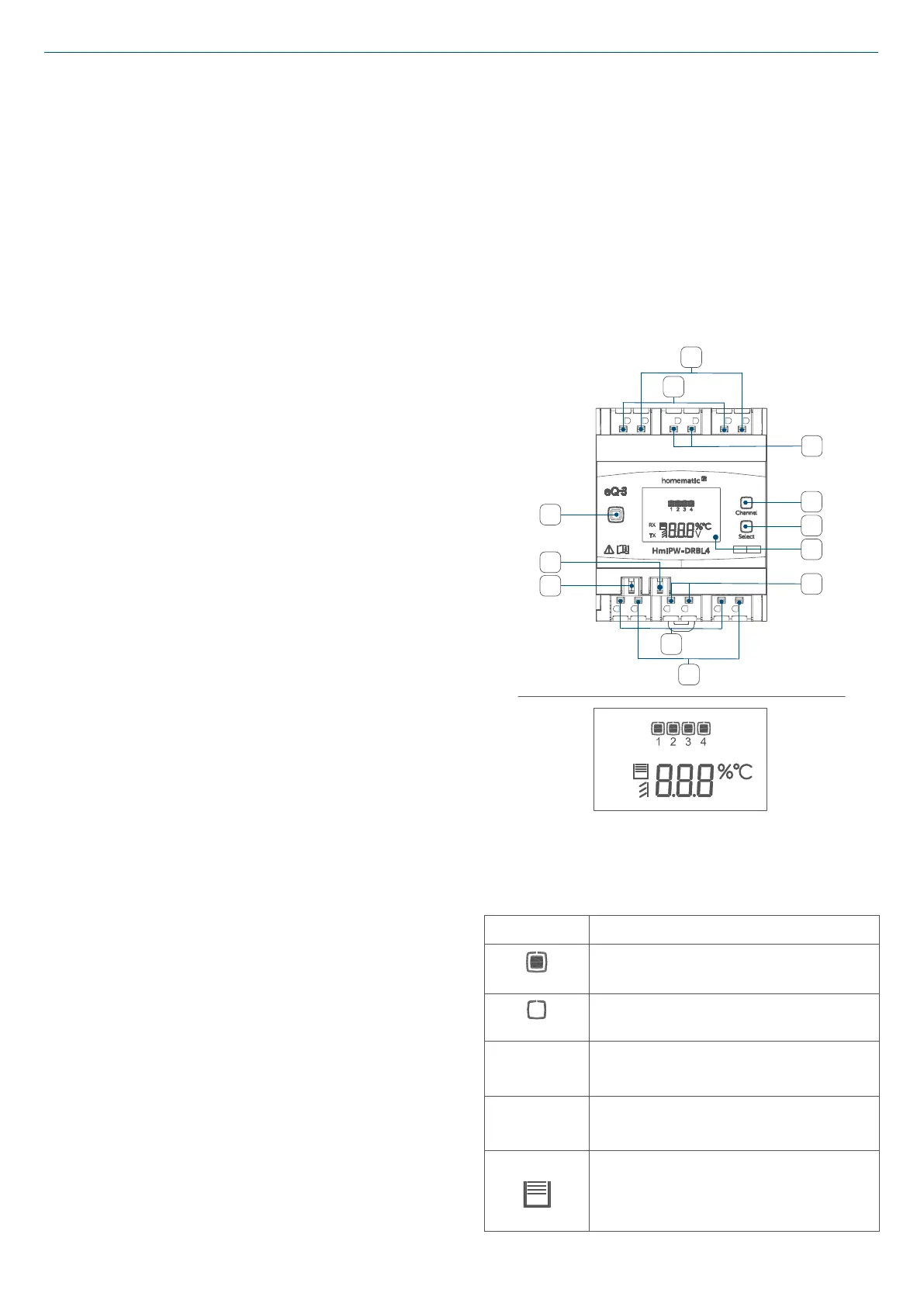

Device overview:
A System button (pairing button and
LED)
B Channel button
C Select button
D LC display
E Bus connection 1
F Bus connection 2
G Connecting terminals for phase
conductor
H Connecting terminals for switched
phase conductor for moving the
motor up
I Connecting terminals for switched
phase conductor for moving the
motor down
A
E
D
F
B
C
G
RX
TX
V
H
H
G
I
I
Figure 1
Display overview (see figure 1):
Symbol Meaning
1
Channel switched on
1
Channel switched o
RX
Data is received by the bus
TX
Data is sent to the bus
Blind or shutter level of the
selected channel
