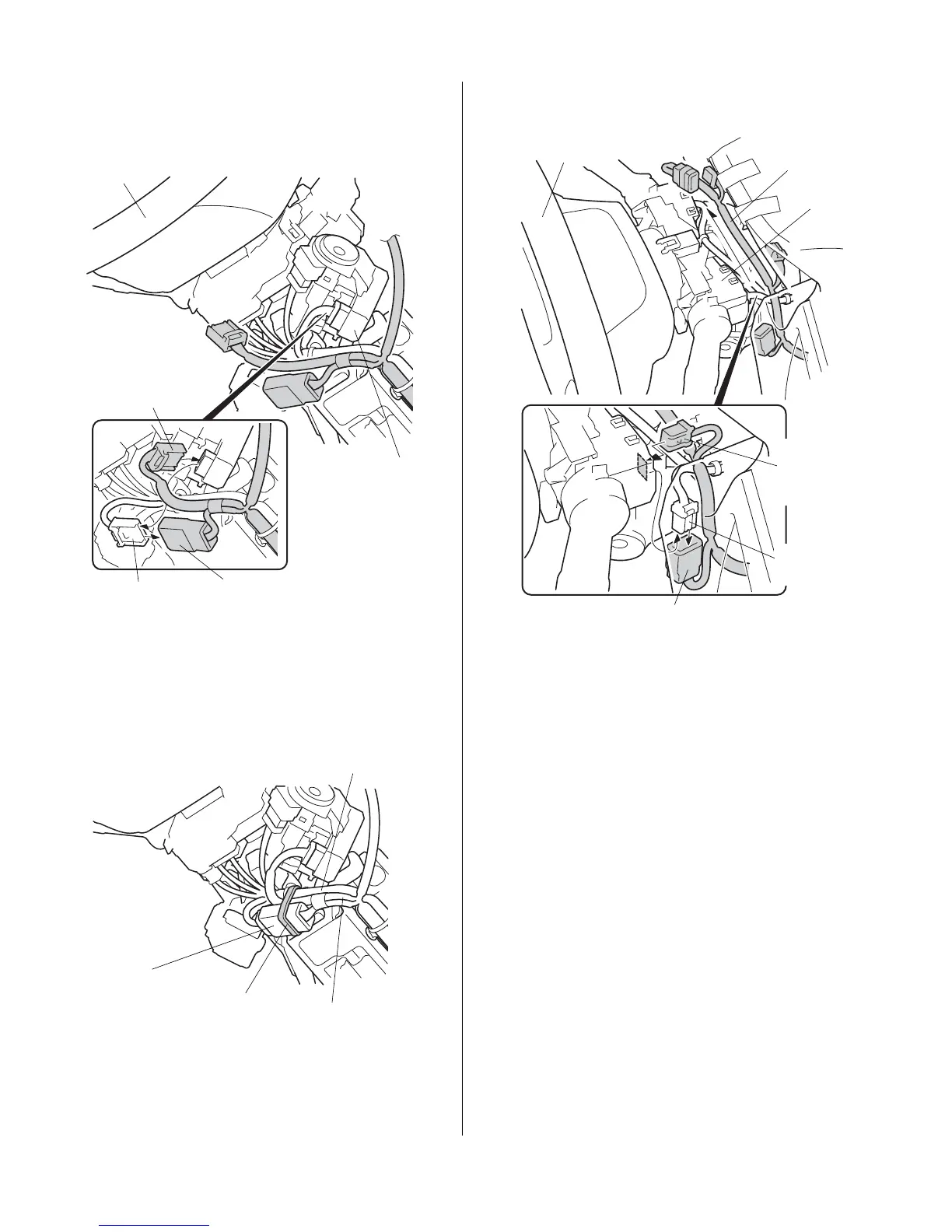

57. Unplug the vehicle 7-pin connector from the ignition
switch, and plug it into the engine starter harness 
7-pin connector (black).
Q0N2007AG
VEHICLE 7-PIN 
CONNECTOR
ENGINE STARTER
HARNESS 7-PIN
CONNECTOR
(BLACK)
ENGINE STARTER
HARNESS 7-PIN
CONNECTOR (BLACK)
IGNITION
SWITCH
STEERING
WHEEL
58. Plug the remaining 7-pin connector (black) into the
ignition switch.
59. Secure the 7-pin connectors and engine starter
ha
rness to the vehicle harness with one cable tie.
Q090211BK
VEHICLE HARNESS
7-PIN
CONNECTORS
CABLE
TIE
ENGINE
STARTER
HARNESS
60. Route the engine starter harness across the steering
column as shown.
Q0N2008AG
VEHICLE 
10-PIN 
CONNECTOR
ENGINE
STARTER
HARNESS
ENGINE
STARTER
HARNESS 10-
PIN
CONNECTOR
STEERING
WHEEL
WIPER
SWITCH
ENGINE STARTER
HARNESS 10-PIN
CONNECTOR
61. Unplug the vehicle 10-pin connector from the wiper
switch, and plug it into the engine starter harness 
10-pin connector.
62. Plug the remaining 10-pin c
onnector into the wiper
switch.
