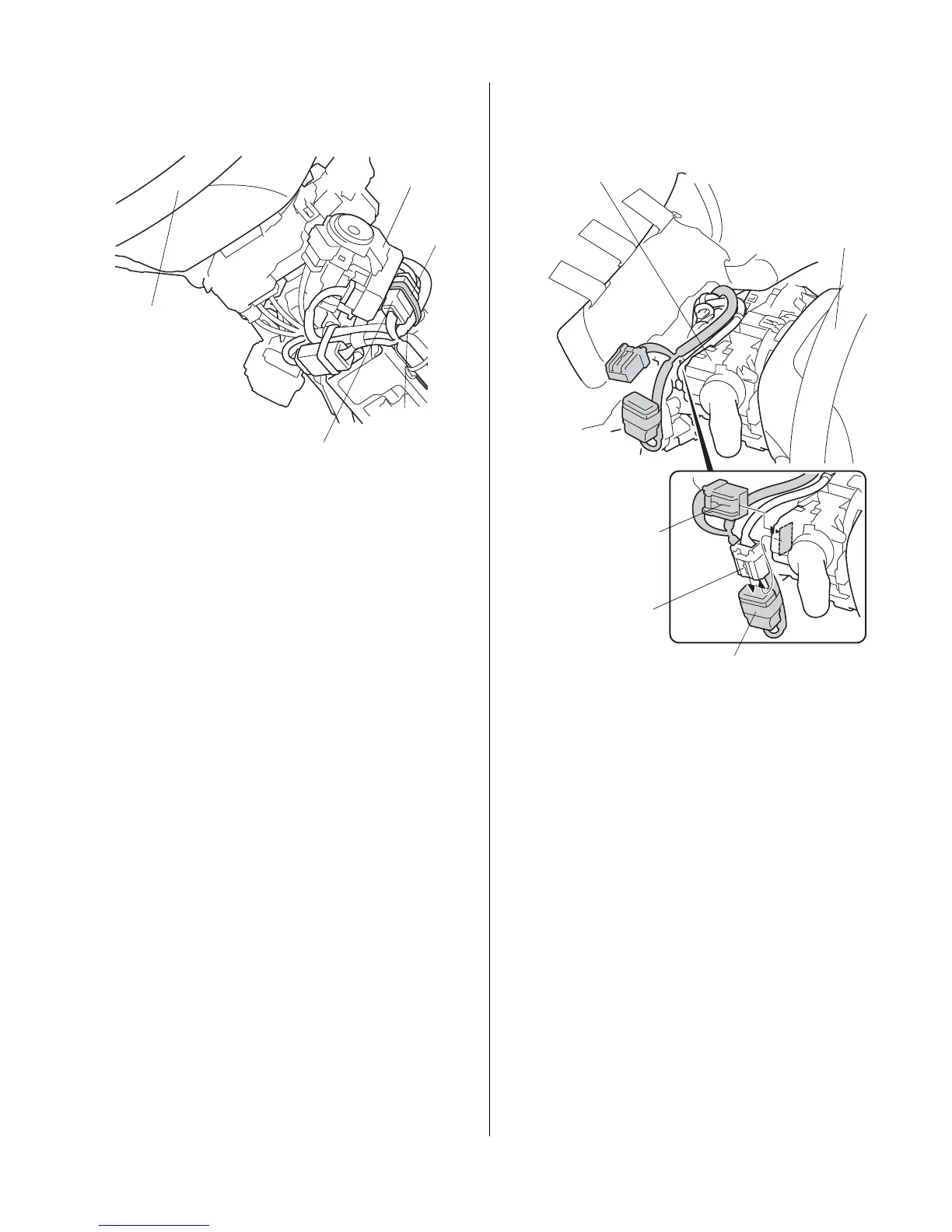

63. Secure the 10-pin connectors and engine starter
harness to the vehicle harness with one cable tie.
IGNITION
SWITCH
CABLE
TIE
10-PIN
CONNECTORS
ENGINE
STARTER
HARNESS
STEERING
WHEEL
64. Unplug the vehicle 12-pin connector from the
combination light switch, and plug it into the engine
starter harness 12-pin connector.
QA20704BG
VEHICLE 12-PIN
CONNECTOR
ENGINE STARTER
HARNESS 12-PIN
CONNECTOR
STEERING
WHEEL
COMBINATION
LIGHT SWITCH
ENGINE STARTER HARNESS
12-PIN CONNECTOR
65. Plug the remaining 12-pin connector into the
combination light switch.
