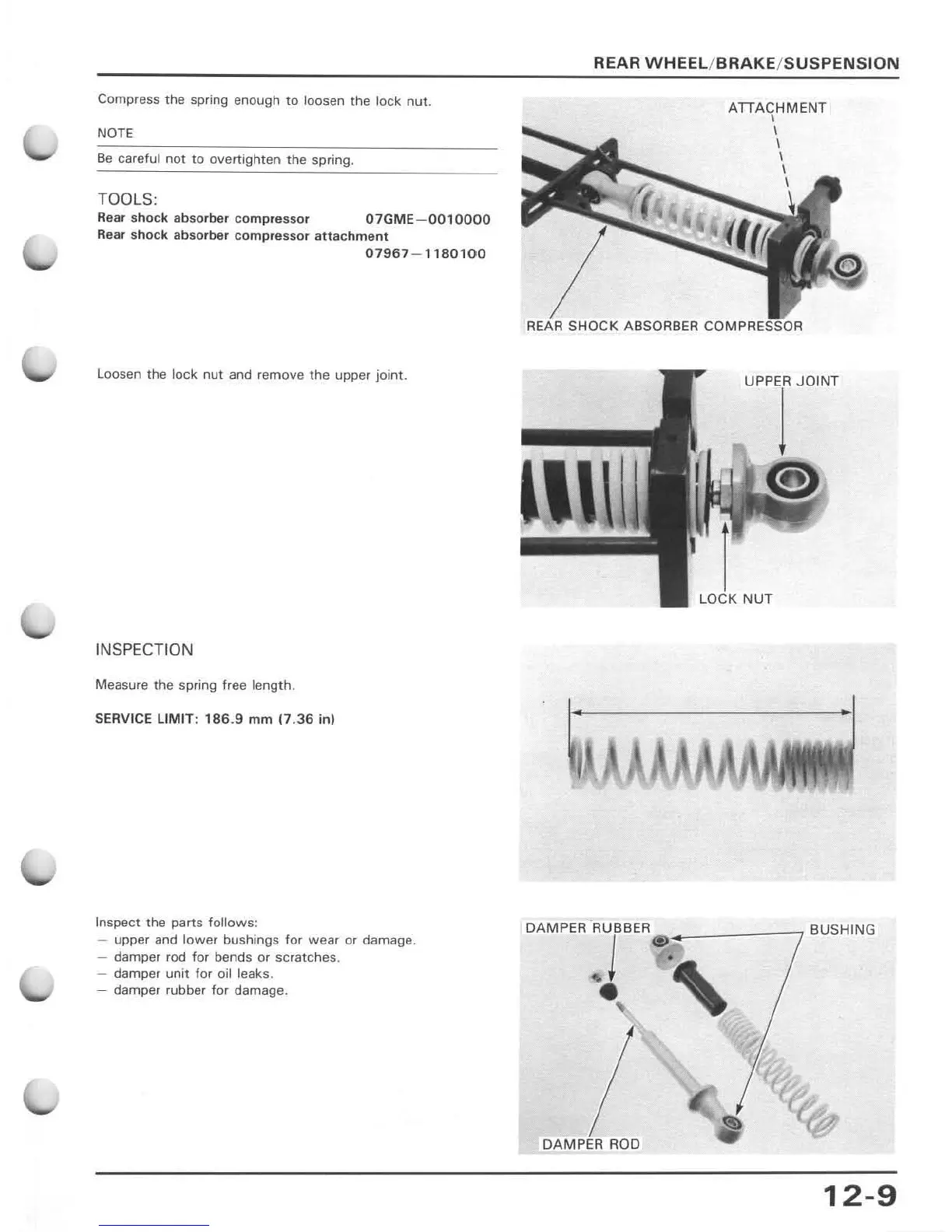

Compress the spring enough to loosen the lock nut.
NOTE
Be careful not to overtighten the spring.
TOOLS:
Rear shock absor be r compressor 07 GME- 00 10 00 0
Rear shock absorber compressor att ac hm ent
07967 - 11 80 1 00
Loosen the lock nut and remove the upper joint.
INSPECTION
Measure the spring free length.
S ER VICE LIMIT: 1 86.9 mm 1 7.36 in)
Inspect the parts follows :
- upper and
lower bushings for wear or damage.
- damper rod for bends or scratches.
- damper unit for oil leaks.
- damper rubber for damage.
REAR WHEE L/ BRAKE / SUSPENSION
ATTACHMENT
,
,
\
\
\
\
SHOCK ABSOR8ER COM
UPPI JO INT
DAMPER RTBER <1>-----, BUSHI NG
~ . . ,
DAMPER ROD
12-9
