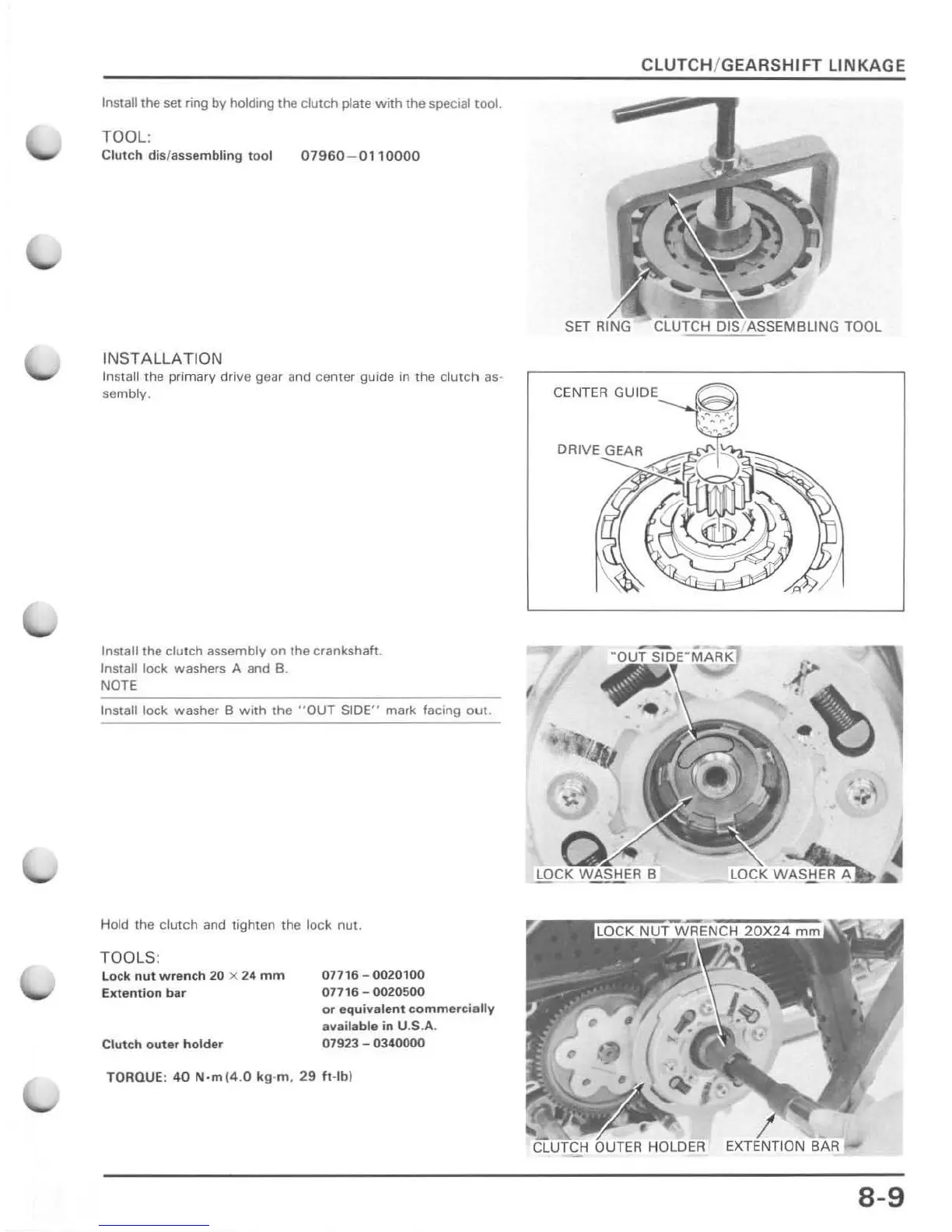

Install the set ring
by
holding the clutch plate
with
the special tool.
TOOL:
Clutch
dis/assembling
tool
07960
-
0110000
INST
ALLAT
I
ON
In
stall the primary drive gear and center guide in
the
clutch
as
·
sembly.
Install the clutch assembly
on
the cranksha
ft
.
Install
lock washers A and B.
NOTE
Install lock washer B with the " OUT SIDE" mark
fa
cing
out
.
Hold the
clutch
and tighten the lock nut.
TOOL
S:
lo
ck
nut
wrench
20
)(
24
mm
El(tention bar
Clutch o
uter
hold
er
07716 - 0020100
077
16
- 0020500
or
equivalent
commer
cia
lly
availab
le
in U.S.A.
07923 - 0340000
TORQUE:
40
N·m(4
.0 kg.m . 29
ft
-Ibl
CLUTCH
/
GEARSHIFT
LINKAGE
SET
''''"LIN(;
TOOL
/
,
•
:,.
8-9
