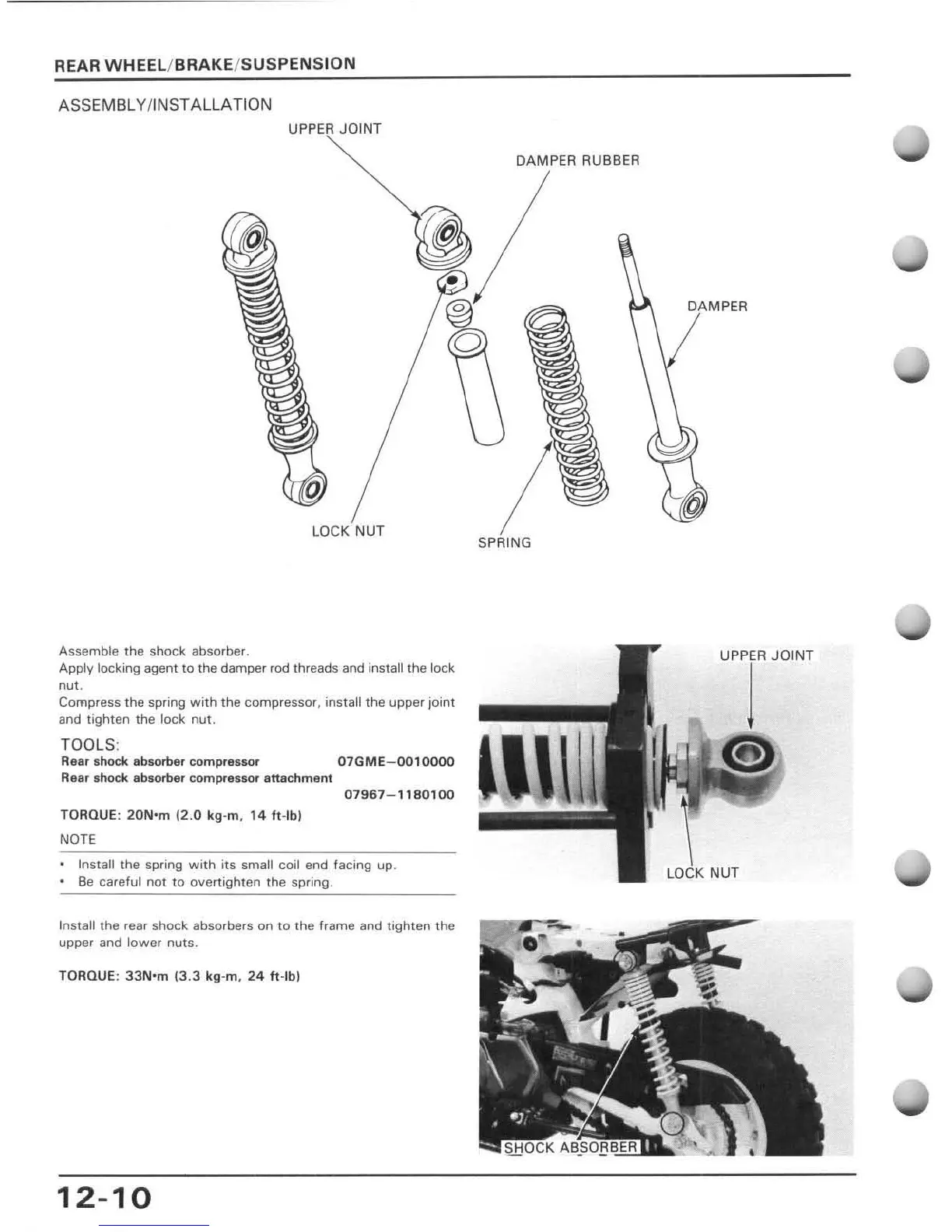

REAR WHEEL / BRAKE/ SUSPENSION
ASSEMBLY /INSTALLATION
UPPER JO IN T
LOCK
NUT
Assemble the shock absorber.
Apply locking agent to the damper rod threads and install the lock
nut .
Compress the spring with the compressor, install the upper joint
and tighten the lock nut.
TOOLS:
Rear shock absorber compressor
R eer shock absorber compressor attachment
TORQUE: 20N'm (2.0 kg -m, 14 ft -Ibl
NOTE
07GME - 0010OQO
07967 - 1180100
Instal! the spring with its small coil end facing up.
• Be careful not to overtighten the spring.
Install the rear shock absorbers on to the frame and tighten the
upper and lower nuts.
TORQUE: 33N'm (3.3 kg -m, 24 ft -Ibl
12-10
DAMPER RUBBER
DAMPER
UPPER JOINT
1
