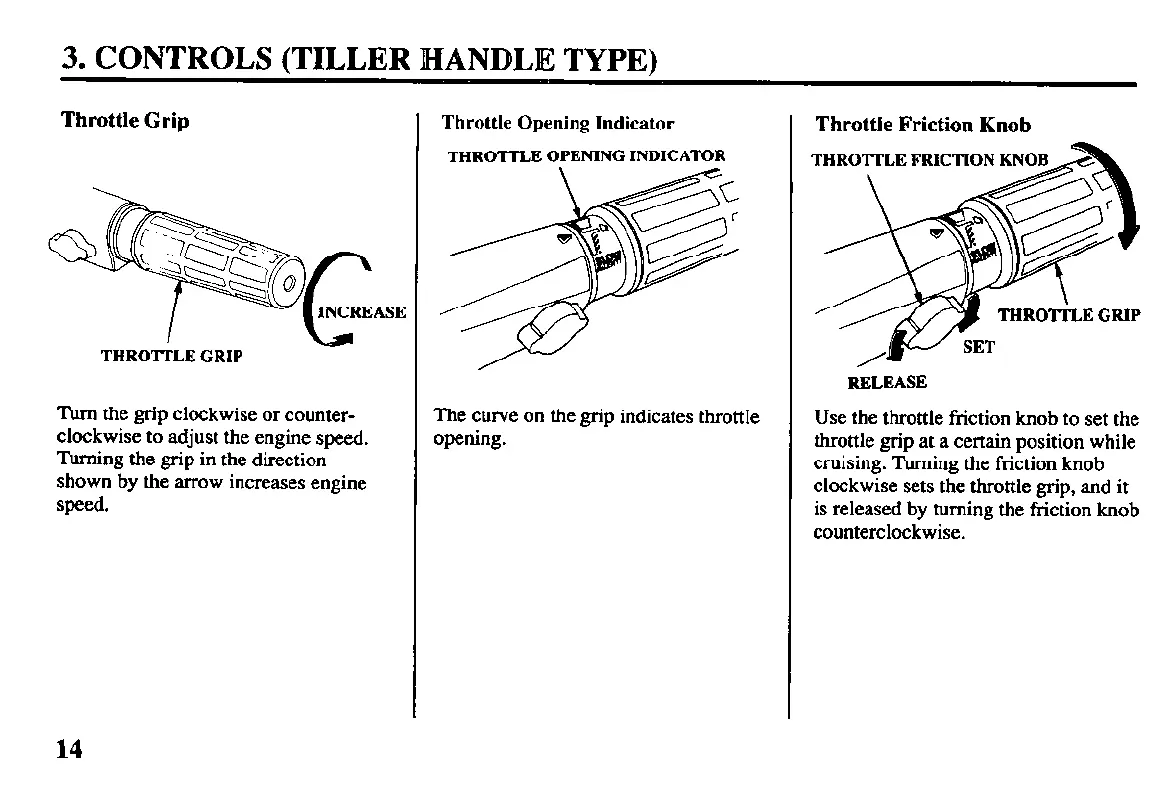

3. CONTROLS (TILLER HANDLIE TYPE)
Throttle Grip
THRO’ITLE GRIP
Turn the grip clockwise or counter-
clockwise to adjust the engine speed.
Turning the grip in the direction
shown by the arrow increases engine
speed.
Throttle Opening Indicator
THROTTLE OPENING INDICATOR
The curve on the grip indicates throttle
opening.
Throttle Friction Knob
RELEASE
Use the throttle friction knob to set the
throttle grip at a certain position while
cruising. Turning the friction knob
clockwise sets the throttle grip, and it
is released by turning the friction knob
counterclockwise.
14
