CONTROLS AND FEATURES

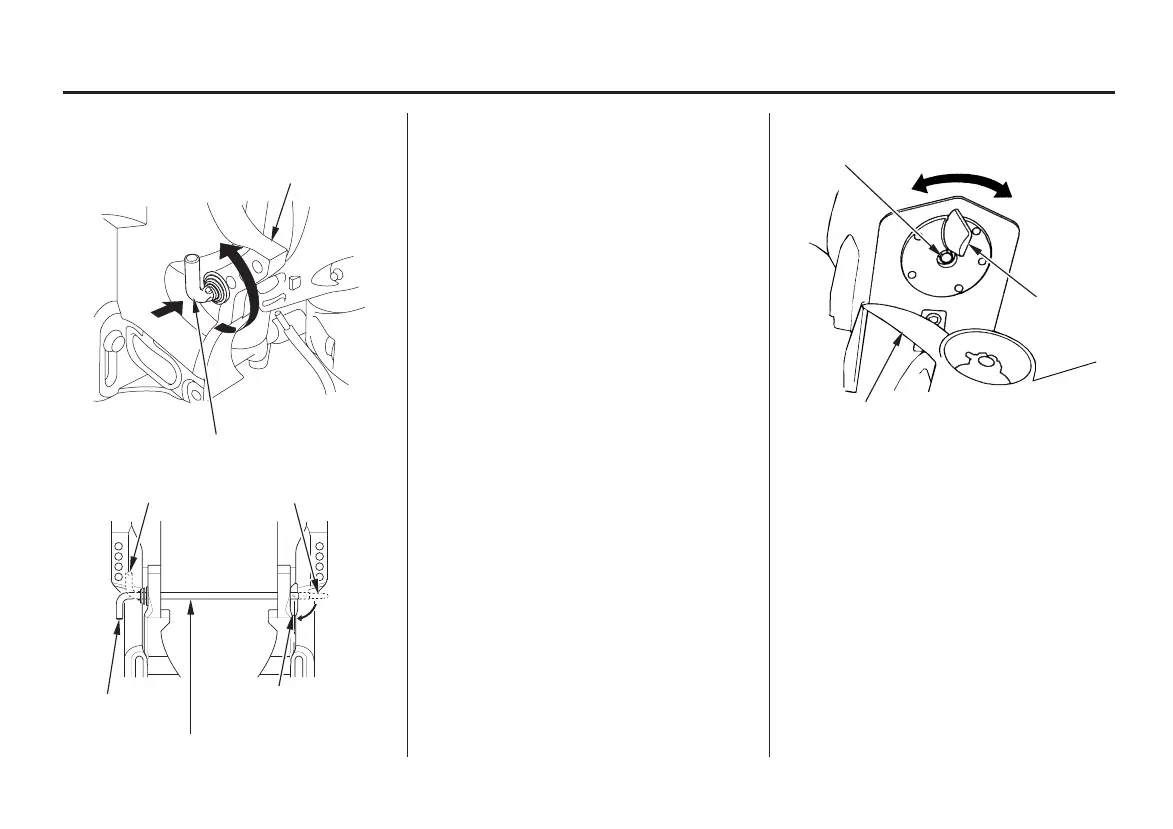

TRANSOM ANGLE ADJUSTING ROD
STERN BRACKET
TO LOCK
TRANSOM ANGLE ADJUSTING ROD
TRIM TAB
TTUURRNN UUPP
PPUUSSHH
PROPELLER
TO CHANGE
LOCKED POSITION
UNLOCKED POSITION
TRIM TAB BOLT
Transom Angle Adjusting Rod Trim Tab
The transom angle adjusting rod
limits the tilt angle of the outboard
motor when fully lowered.
Proper adjustment prevents the
outboard motor from being trimmed
too low (p. ).
The trim tab compensates for
‘‘torque steer’’, which is a reaction of
the outboard motor to propeller
rotation.
If uncompensated, torque steer would
make the outboard motor tend to turn
to one side.
When the trim tab is correctly
adjusted (p. ), steering effort is
equal in either direction.
50
61
