Honda BF5A - Starter Grip; Engine Cover Lock Lever; Transom Angle Adjusting Rod

16
Engine Cover Lock Lever Transom Angle Adjusting RodStarter Grip

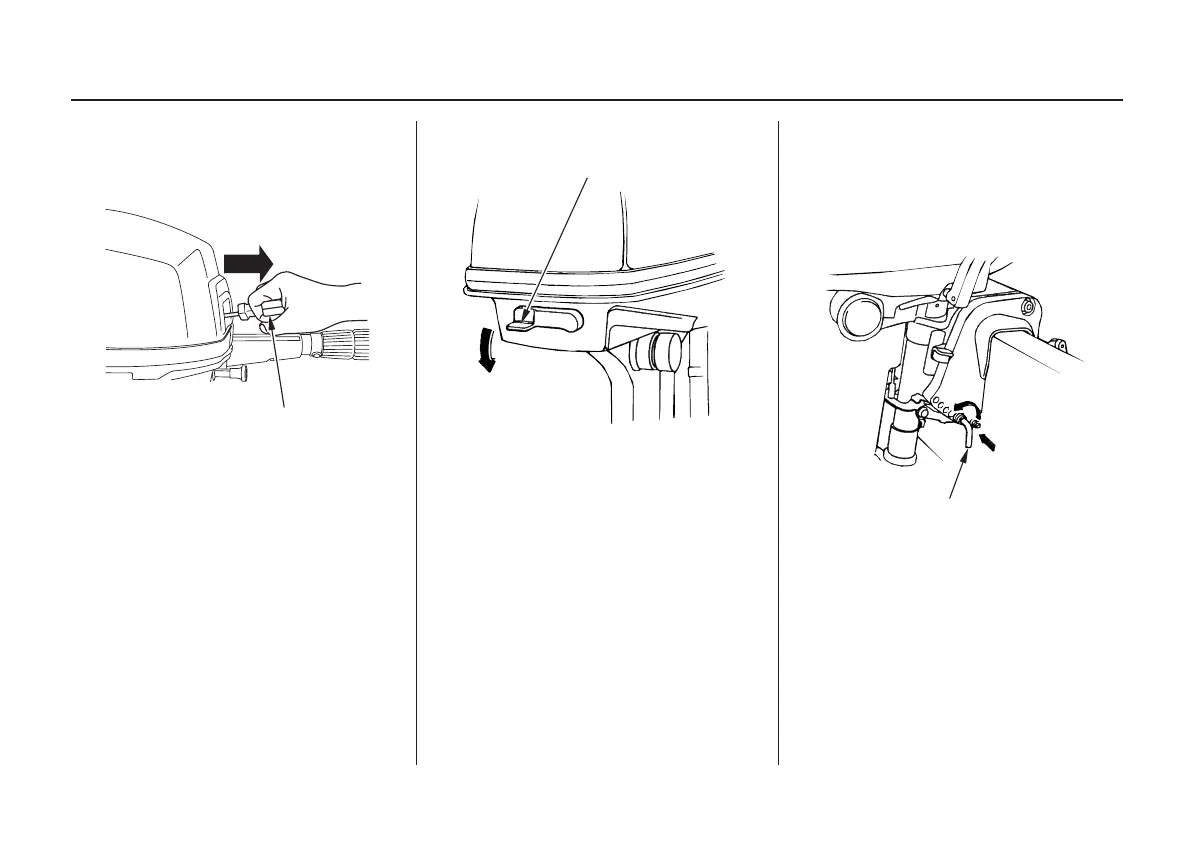

CONTROLS AND FEATURES
UNLOCK
TRANSOM ANGLE ADJUSTING ROD
ENGINE COVER LOCK LEVER
STARTER GRIP
Direction to pull
The engine cover lock lever fastens
the engine cover to the outboard
motor.
The transom angle adjusting rod
adjusts the transom angle of the
outboard motor when fully lowered.
Proper adjustment prevents the
outboard motor from being adjusted
too low (p. ).
Pulling the starter grip operates the
recoil starter to crank the engine for
starting.
The engine will start only when the
gearshift lever (p. ) is in the N
(neutral) position, and the emergency
stop switch clip is in the emergency
stop switch.
35
28
