INSTALLATION
<Outboard Motor Angle
Adjustment>
Adjust the outboard motor so that it is
perpendicular to the water surface
(i.e. axis of the propeller is parallel
with the water surface).
There are five adjusting stages.

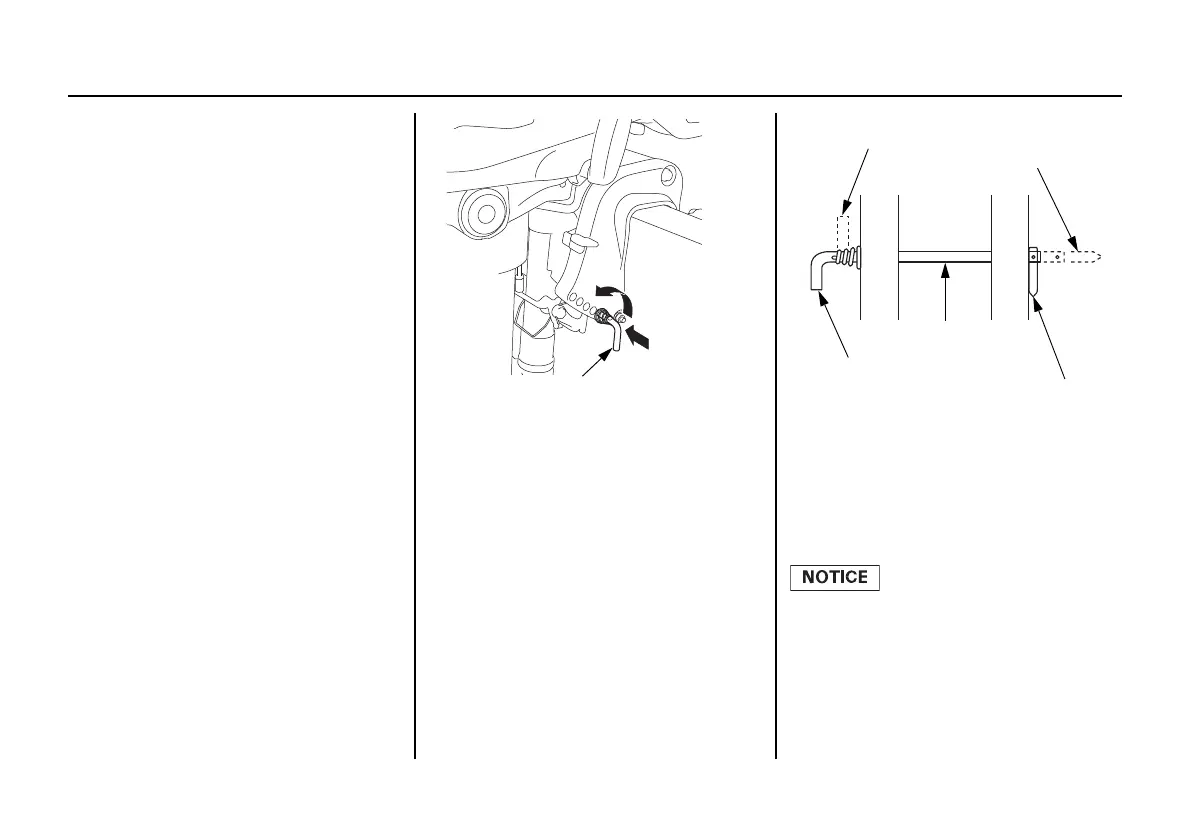

1. Push in (1) the transom angle
adjusting rod, twist upwards (2) to
the unlocked position and pull out
to remove.
2. Inserting the transom angle
adjusting rod in the proper hole,
twist it down to lock. After locking,
pull the transom angle adjusting
rod and be sure it is not withdrawn.
To prevent damage to the outboard
motor or boat, make sure the
adjusting rod is locked.
TRANSOM ANGLE
ADJUSTING ROD
(2)
(1)
TO LOCK
LOCKED POSITION
TRANSOM ANGLE
ADJUSTING ROD
UNLOCKED
POSITION
TO CHANGE
