Honda CB360 - Contact Breaker Adjustment

* Never use a spark plug with an im-
proper heat range.
‚ Do not attempt to dry or remove soot
from the spark plug by burning.

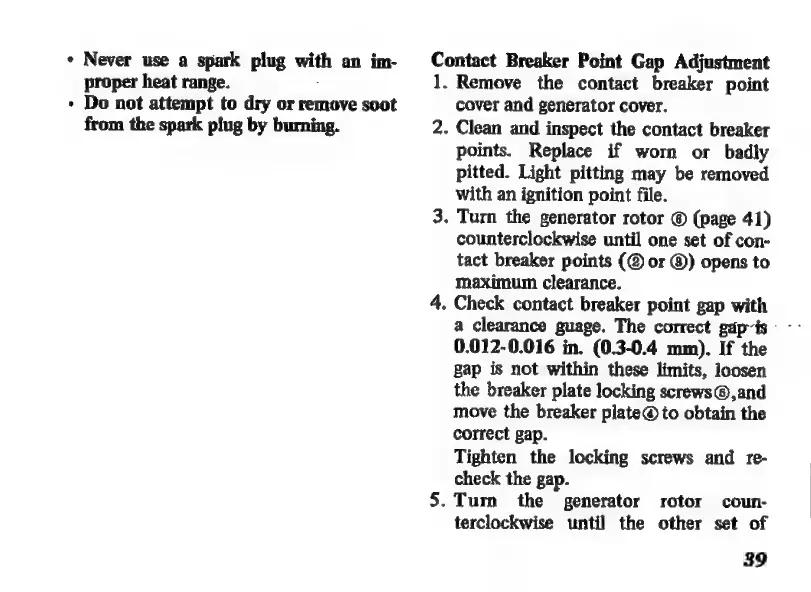

E Breaker Point Gap Adjustment
. Remove the contact breaker point
cover and generator cover.
2. Clean and inspect the contact breaker
points. Replace if worn or badly
pitted. Light pitting may be removed
with an ignition point file.
3. Turn the generator rotor © (page 41)
counterclockwise until one set of con-
tact breaker points (@ or ®) opens to
maximum clearance.
4. Check contact breaker point gap with
a clearance guage. The correct pdp-is С:
0.012-0.016 in. (0.3-0.4 mm). If the
Bap is not within these limits, loosen
the breaker plate locking screws ®,ап@
move the breaker plate@ to obtain the
correct gap.
Tighten the locking screws and re-
check the gap.
5. Turn the generator rotor coun-
terclockwise until the other set of
39
