Honda CB360 - Clutch Adjustment

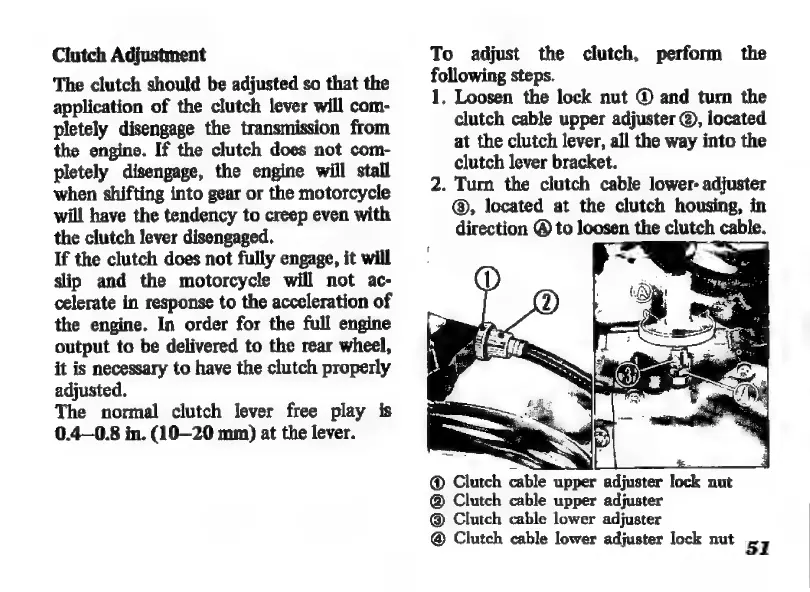

Clutch Adjustment
The clutch should be adjusted so that the
application of the clutch lever will com-
pletely disengage the transmission from
the engine. If the clutch does not com-
pletely disengage, the engine will stall
when shifting into gear or the motorcycle
will have the tendency to creep even with
the clutch lever disengaged.
If the clutch does not fully engage, it will
slip and the motorcycle will not ac-
celerate in response to the acceleration of
the engine. In order for the full engine
output to be delivered to the rear wheel,
it is necessary to have the clutch properly
adjusted.
The normal clutch lever free play is
0.4—0.8 in. (10—20 mm) at the lever.
To adjust the clutch, perform the
following steps.
1. Loosen the lock nut @ and turn the
clutch cable upper adjuster @, located
at the clutch lever, all the way into the
clutch lever bracket.
2. Turn the clutch cable lower» adjuster
(9, located at the clutch housing, in
direction @ to loosen the clutch cable.
Kuh. ЖЕЗ
>
@) Clutch cable upper adjuster lock nut
Q Clutch cable upper adjuster
ад Clutch cable lower adjuster
(9 Clutch cable lower adjuster lock nut
51
