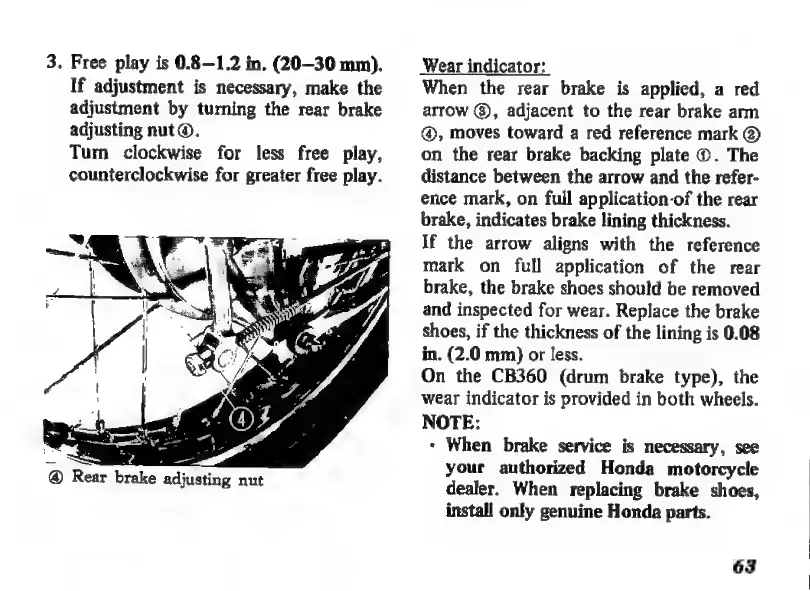

3. Free play is 0.8—1.2 in. (20-30 mm).
If adjustment is necessary, make the
adjustment by turning the rear brake
adjusting nut à.
Tum clockwise for less free play,
counterclockwise for greater free play.
e
@
Rear
brake
adjusting
nut
Wear indicator:
When the rear brake is applied, a red
arrow (8), adjacent to the rear brake arm
®©, moves toward a red reference mark ©
on the rear brake backing plate Ф. The
distance between the arrow and the refer-
ence mark, on fuil application-of the rear
brake, indicates brake lining thickness.
И the arrow aligns with the reference
mark on full application of the rear
brake, the brake shoes should be removed
and inspected for wear. Replace the brake
shoes, if the thickness of the lining is 0.08
in. (2.0 mm) or less.
On the CB360 (drum brake type), the
wear indicator is provided in both wheels.
NOTE:
* When brake service is necessary, see
your authorized Honda motorcycle
dealer. When replacing brake shoes,
install only genuine Honda parts.
63
