Honda CRF450X 2010 User Manual

(

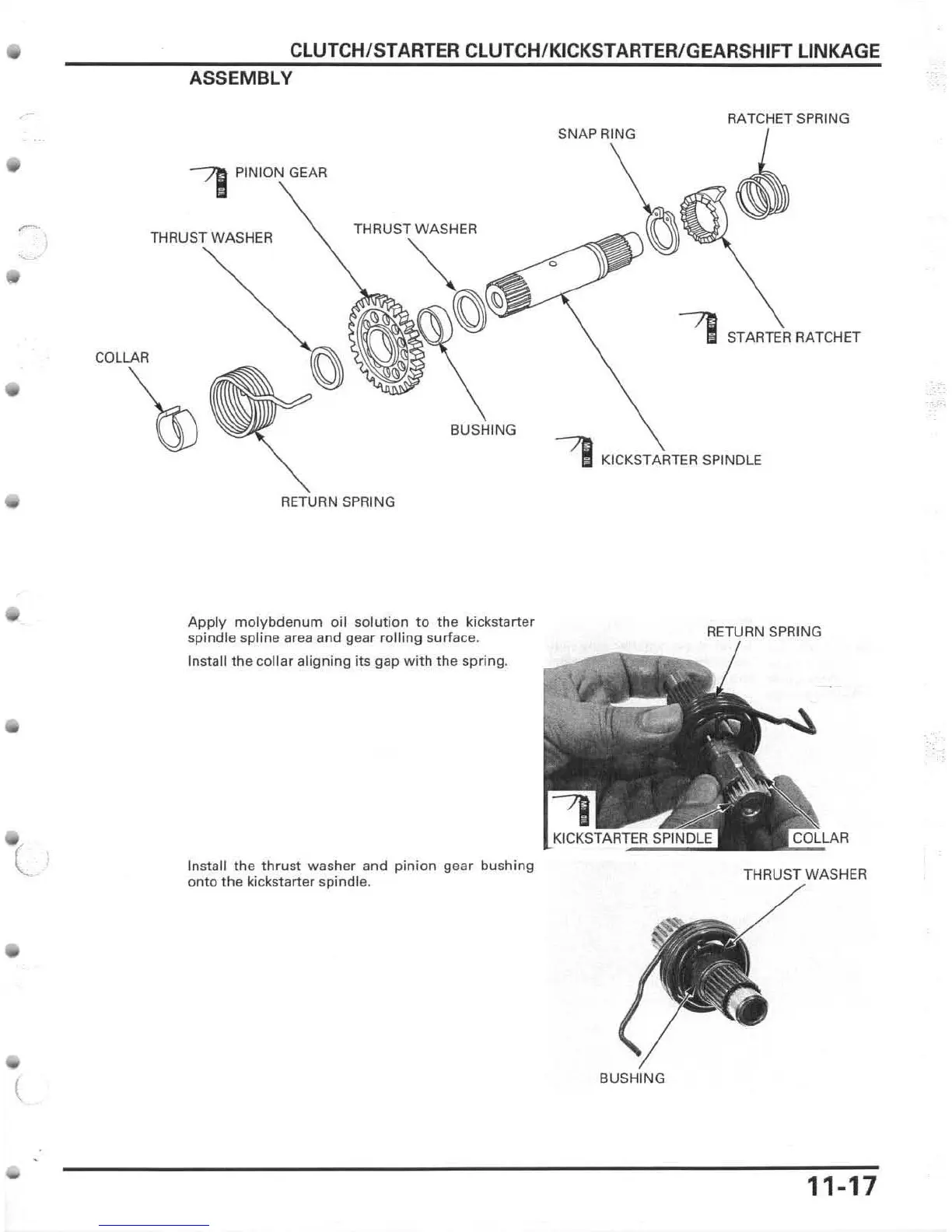

CLUTCH/STARTER CLUTCH/KICKSTARTER/GEARSHIFT LINKAGE
ASSEMBLY
-:7J PINION GEAR
THRUST WASHER
THRUST WASHER
CO L LAR
~
Ho ll UHNSPRING
App ly mo l ybdenum oil solu tion to the kickstarter
spindle spline area and gear ro lling surface.
Install the collar aligning jts gap with the spring .
Install the thrust washer and pinion gear bushing
onto t he kickst arter spindle.
RATCHET SPRING
SNAP RING
$
-:7J STARTER RATCHET
-:7J KIICK~;TAFm R SP INDLE
RETURN SPRING
THRUST WASHER
11-17

Honda CRF450X 2010 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	96mm x 62.1mm
Compression Ratio	12.0:1
Transmission	Wide-ratio five-speed
Final Drive	#520 chain; 13T/51T
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Rake	27.38 degrees
