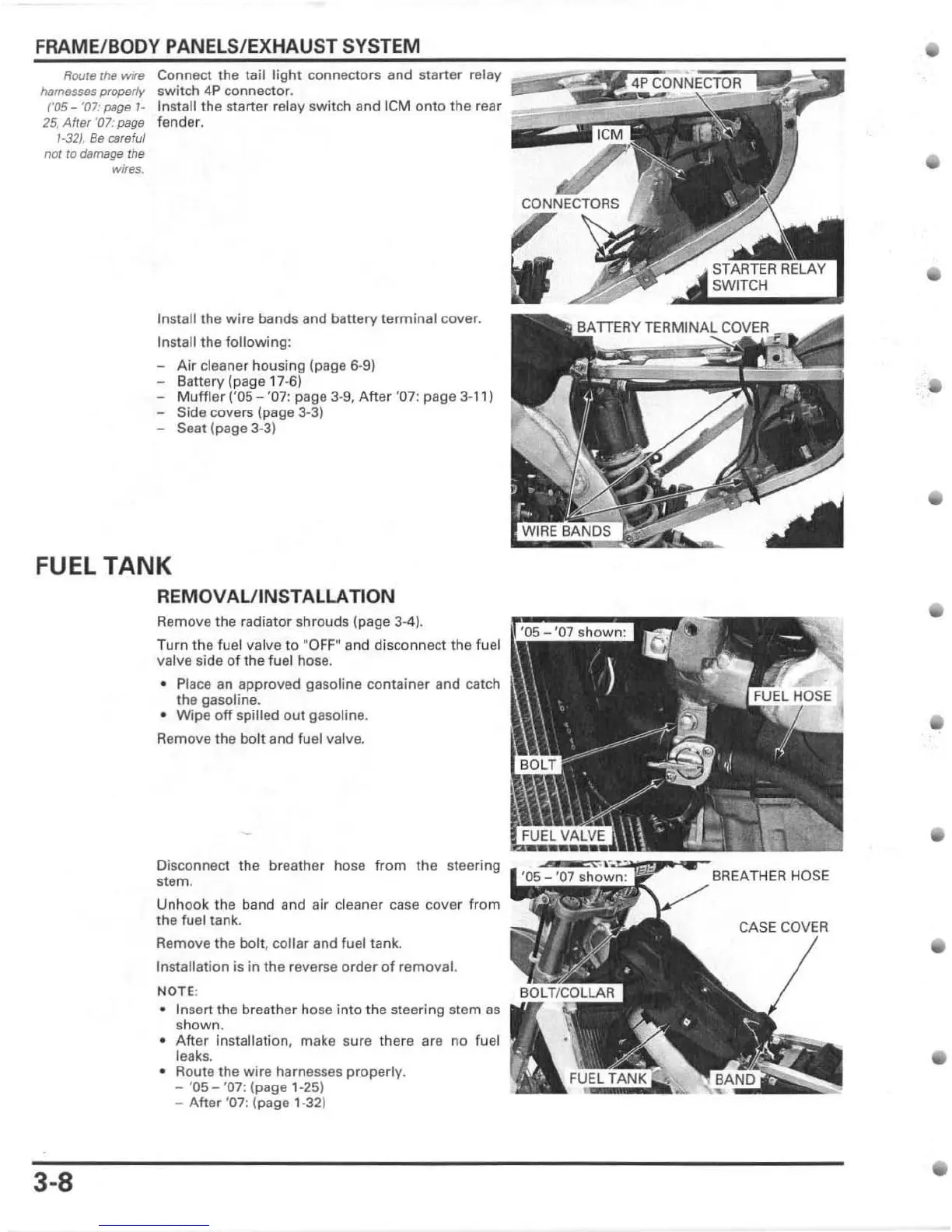

FRAME/BODY PANELS/EXHAUST SYSTEM
ROUfe the wire Connect the tail light connectors and starter relay
harnesses properly switch 4P connector.
('05 - '07: page 1- In stall the sta rter relay sw itch and leM onto the rear ~;:::. ... ~ ~=:
25. Ahar '07: page fender. ii
1-32) Be careful
not to damage the
wires.
Install the wire bands and banery terminal cover.
In sta ll the following:
- Air cleaner housing (pa ge 6-9)
- Batt ery (page 17 · 6)
- Muffler ('05 - '07: page 3-9, After '07: page 3- '1 )
- Side covers (pa ge 3-3)
- Seat (page 3-3)
FUEL TANK
REMOVAL/INSTALLATION
3-8
Remove the radiator shrouds (page 3-4).
Turn the fuel valve to ·O FF " and disconnect the fuel
valve side of the fuel hose.
• Place an approved gasoline container and catch
the gasoli ne .
• Wipe o ff spilled ou t gasoline .
Remove the bolt and fu el valve.
Disco nn ect the breather hose from the steering
stem.
Unho ok the band and air cleaner case cover from
the fuel tank.
Remove the
bolt , collar and fuel tank.
Installation is in the rever se o rd er of rem oval.
NOTE:
• In se rt the breather ho se into the steering s tem as
shown.
• After installation, mak e s ure there are no fuel
leaks.
•
Route the wire harnesses properly .
-
'05 - '07: (page 1-25)
-
After '07: (page 1·3 2)

Honda CRF450X 2010 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	96mm x 62.1mm
Compression Ratio	12.0:1
Transmission	Wide-ratio five-speed
Final Drive	#520 chain; 13T/51T
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Rake	27.38 degrees
