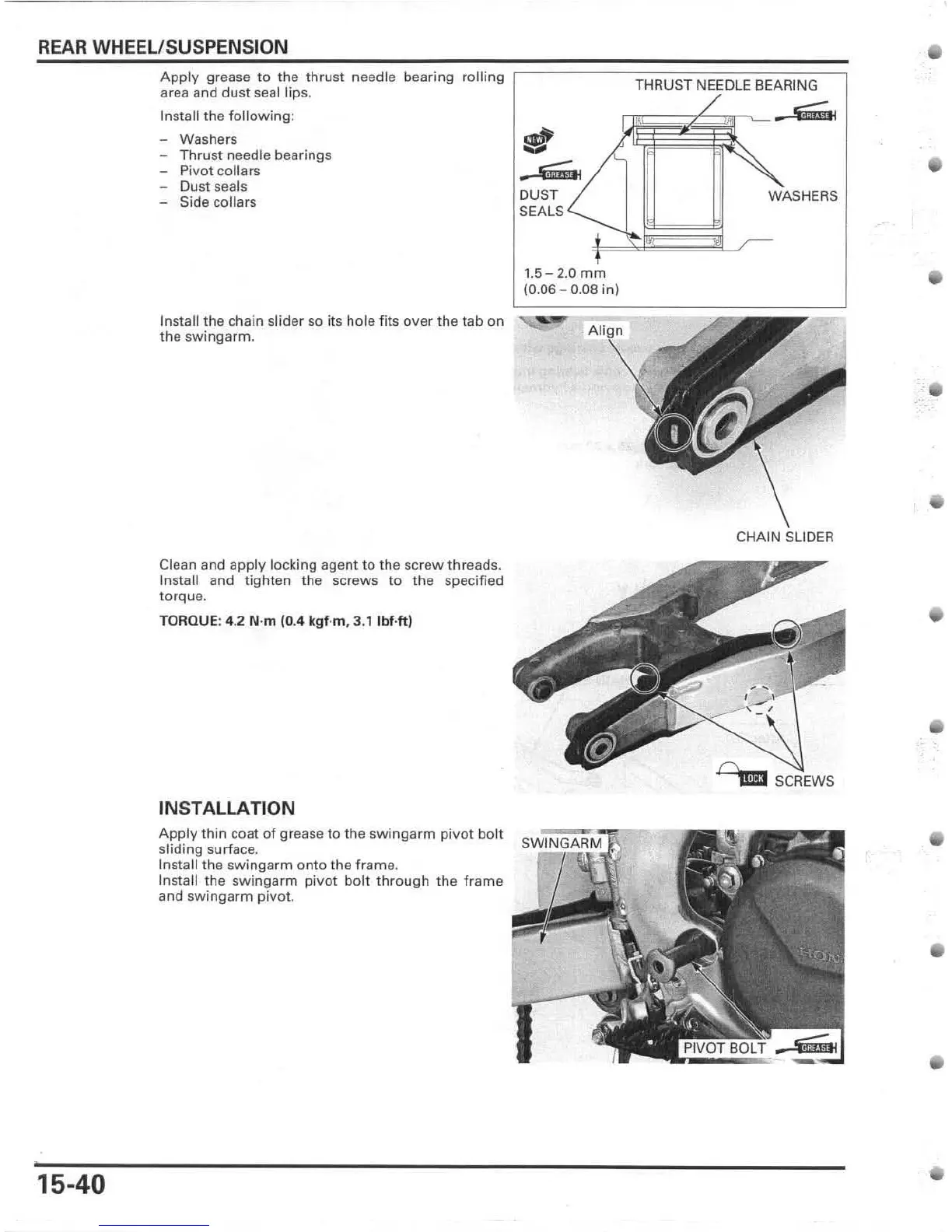

REAR WHEEL/SUSPENSION
15-40
Apply grease to the thrust needle bearing r olling
area and dust seal lips.
Install the following:
- Washers
- Thrust needle bearings
- Pivot collars
- Dust seals
-
Side collars
Install
the chain slider so its hole fits over the tab on
the swingarm.
Clean and apply locking agent to the screw threads.
Install and tighten the screws to the specified
torque.
TORQUE: 4.2 N'm (0.4 kgf ·m, 3.1 Ibf.ft)
INSTALLATION
Apply thin coat of grease to the swingarm pivo t bolt
sliding surface.
Install the swingarm onto the frame.
Install the swingarm pivot bolt through the frame
and swingarm pivot.
f!
• un;..
DUST
SEALS
1.5 - 2.0 mm
(0.06 - 0.08 in)
THRUST NEEDLE BEARING
~~ -.~
WAS H ERS
CHAIN >LIL'tH
"
II!il3 SCREWS
•

Honda CRF450X 2010 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore and Stroke	96mm x 62.1mm
Compression Ratio	12.0:1
Transmission	Wide-ratio five-speed
Final Drive	#520 chain; 13T/51T
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	110/100-18
Wheelbase	58.3 inches
Fuel Capacity	1.9 gallons
Ignition	Solid-state CD with electronic advance
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustability, and 13-position compression damping adjustability; 12.4 inches travel
Rake	27.38 degrees
