Instruments & Controls
Gauges & Indicators
The gauges and indicators on your scooter
keep you informed, alert you to possible
problems, and make your riding safer and
more enjoyable. Refer to the gauges and
indicators frequently. Their functions are
described on the following pages.

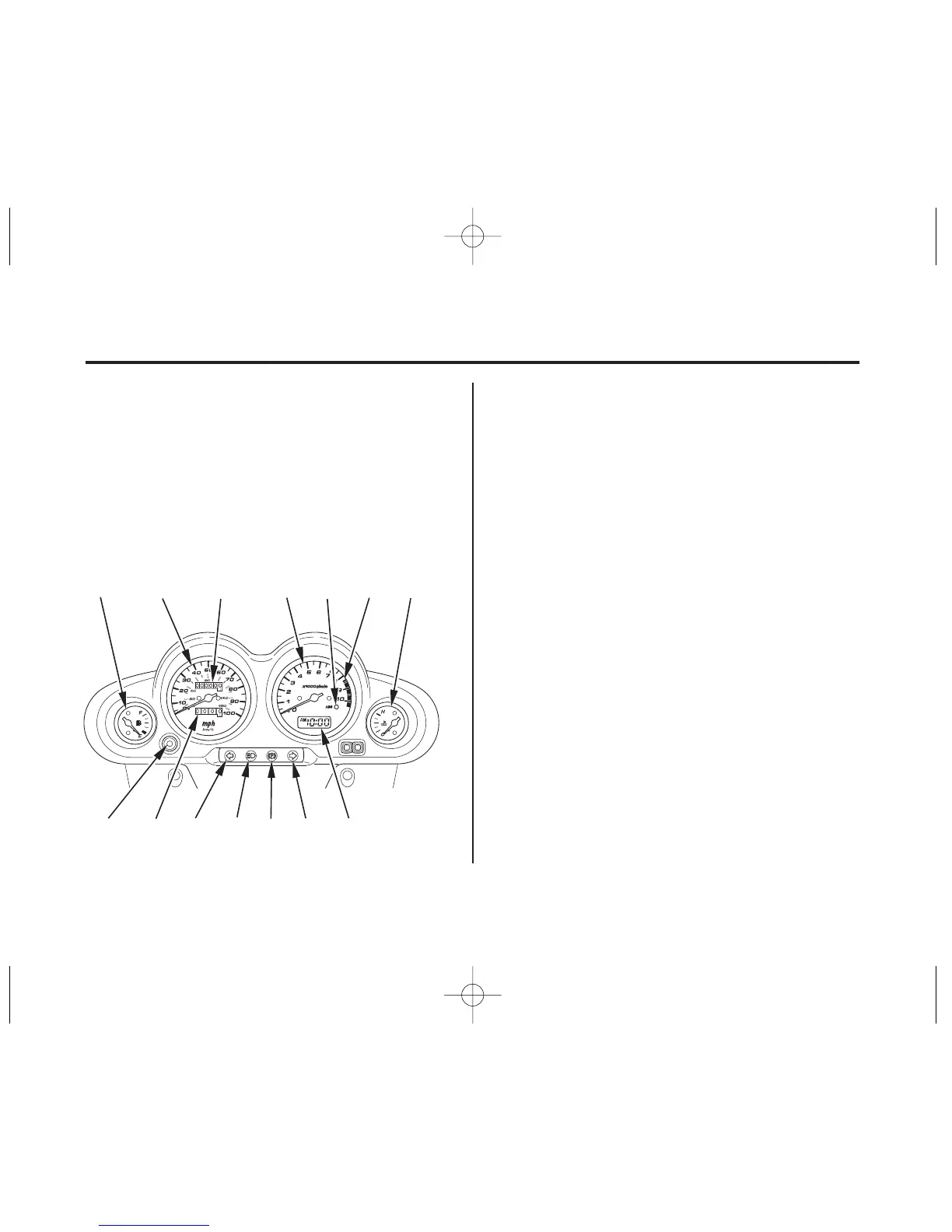

(1) fuel gauge
(2) speedometer
(3) odometer
(4) tachometer
(5) anti-lock brake system (ABS)
indicator (NSS250A/AS)
(6) tachometer red zone
(7) coolant temperature gauge
(8) digital clock
(9) right turn signal indicator
(10) parking brake indicator
(11) high beam indicator
(12) left turn signal indicator
(13) tripmeter
(14) tripmeter reset button
Odometer & tripmeter read in miles.
