39
SERVICING YOUR PUMP
WT30X and WT40X

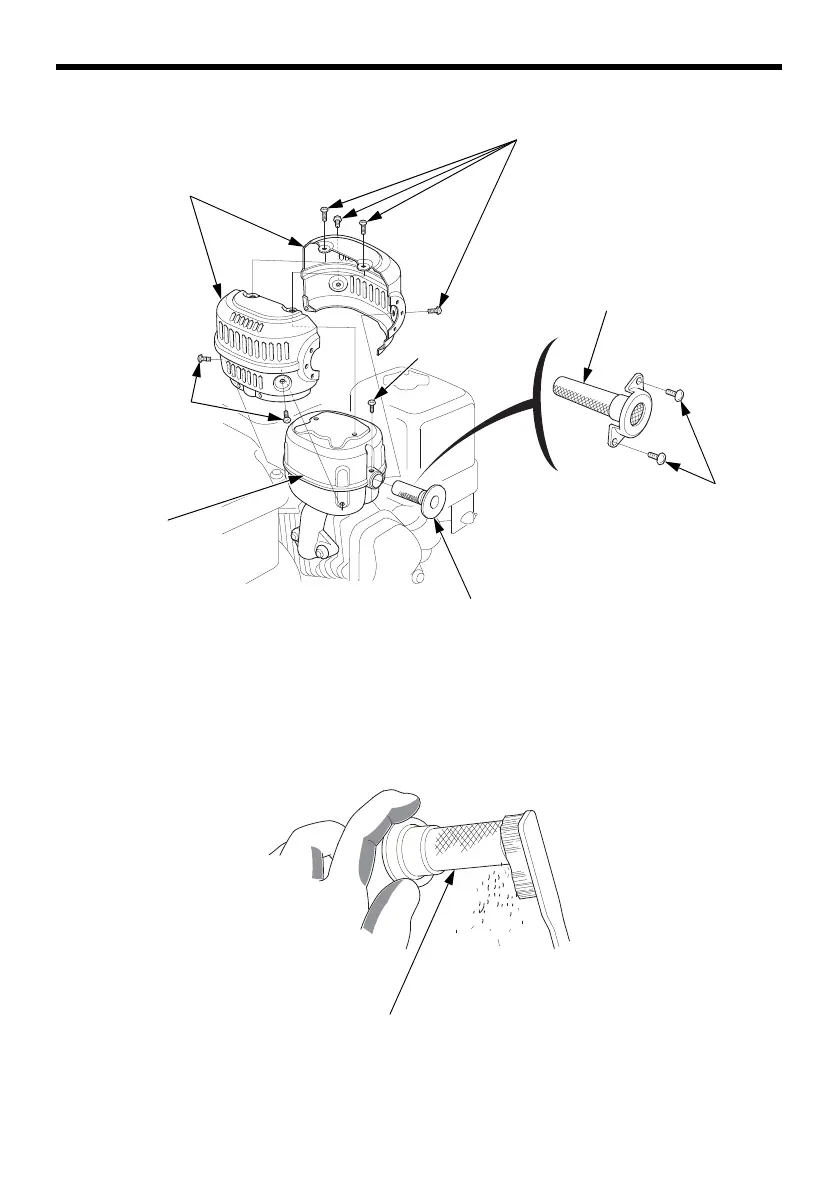

3. Use a brush to remove carbon deposits from the spark arrester screen. Be
careful to avoid damaging the screen.
The spark arrester must be free of breaks and holes. Replace the spark arrester
if it is damaged.
4. Install the spark arrester, muffler protector, and muffler in the reverse order of
disassembly.
MUFFLER PROTECTOR
4 mm SCREW
5 mm SCREW (4)
SPARK ARRESTER
4 mm
SCREW (2)
WT40X type
uses two 4 mm
screws.
SPARK ARRESTER
5 mm SCREW (2)
MUFFLER
31YG06130.book 39 ページ ２０２１年１月２０日 水曜日 午前９時２７分
