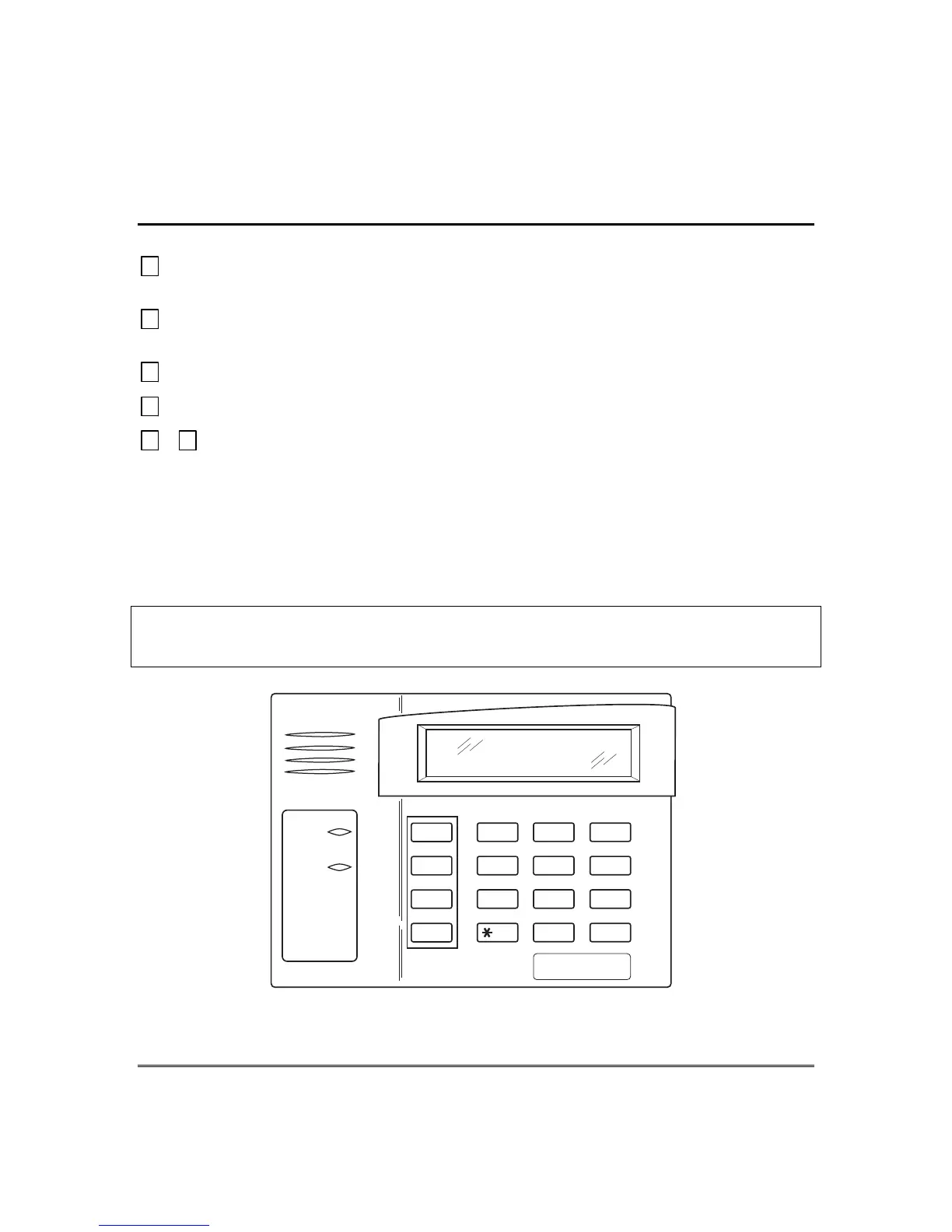

FUNCTIONS OF THE REMOTE KEYPAD
DISPLAY WINDOW: Displays zone number and system status messages.
1
OFF Key: Silences audible alarm, supervisory and trouble sounds, and clears visual
display after problem's correction.
6
BYPASS Key: Removes individual protection zones from being monitored by the
system. (Installer only function.)
8
CODE Key: Used to assign additional 4-digit user codes.
#
Key: Used to activate fire drill. (Enter user 2's code + [#] + [69])
0
– 9 Keys: Used to enter your 4-digit user code, which must be entered before pressing
the OFF, BYPASS, CODE or [#] keys.
ARMED INDICATOR: Not Used.
READY INDICATOR: Not Used.
INTERNAL SOUNDER: Sound is: slow on/off pulsing for fire alarms, steady dual-tone for
emergency alarms, and rapid on/off pulsing for supervisory and trouble conditions.
IMPORTANT! When entering codes and commands, sequential key depressions must be
made within 2 seconds. If 2 seconds elapses without a key depression, the entry is aborted
and must be repeated from its beginning.
1
OFF
4
MAX
7
INSTANT
READY
2
AWAY
5
TEST
8
CODE
0
3
STAY
6
BYPASS
9
CHIME
#
ARMED
READY
