INSTALLATION
EAS DEACTIVATION
SW1 and SW2 are the switch banks inside the Checkpoint device that set the
deactivation range. Honeywell recommends end users program the 7820 bar
code scanner to the Short Range*, so that the unit does not scan out beyond the
deactivation range.
Unit #
Checkpoint Recommended
Switch Bank Settings
7820 Depth of Field
Recommended Settings
7820
SW1 - 2, 3, 4, 5, 6 set to ON &
SW2 - 2, 3, 4, 5, 6 set to ON
Short Range*
³ 1 1 8 7 1 1
* Note: Minimum element width changes to 6.8 mil when in this mode.

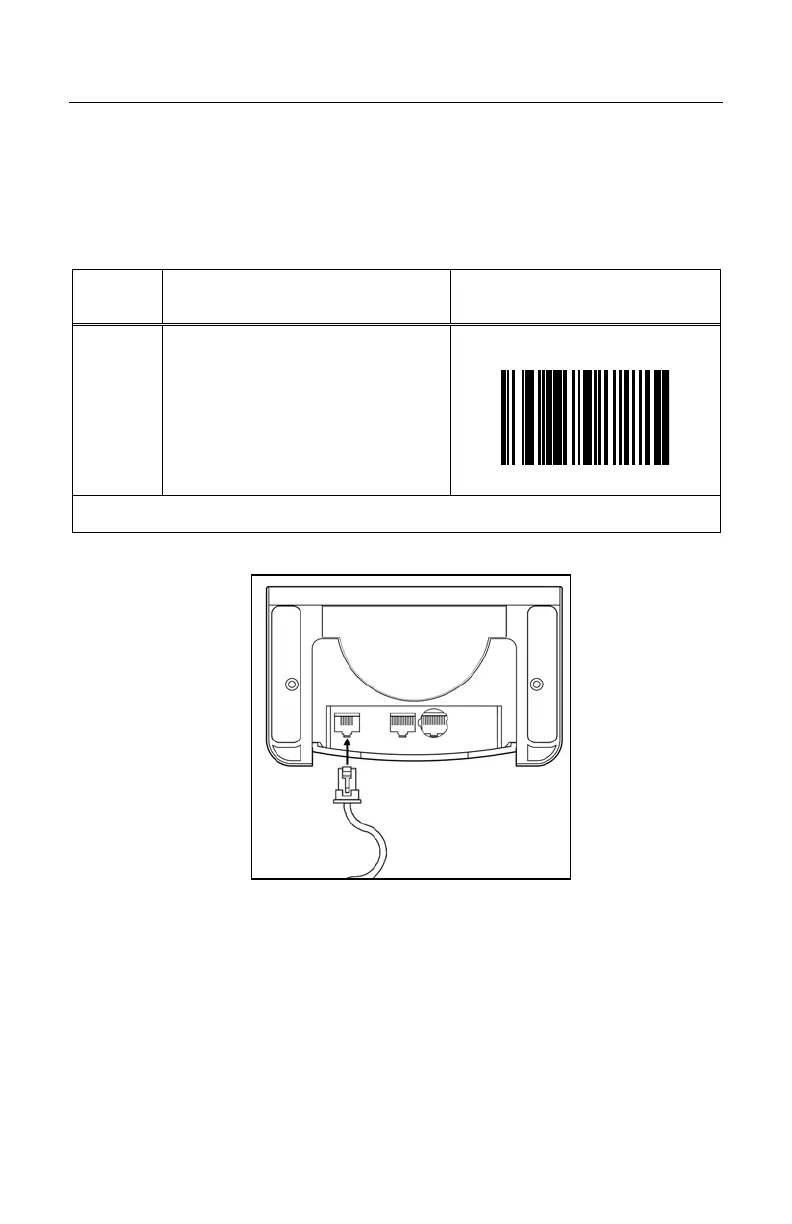

Figure 10. EAS Deactivation Antenna
Contact Checkpoint Systems directly for additional EAS support.
