Honeywell 7820 Solaris User Manual

49

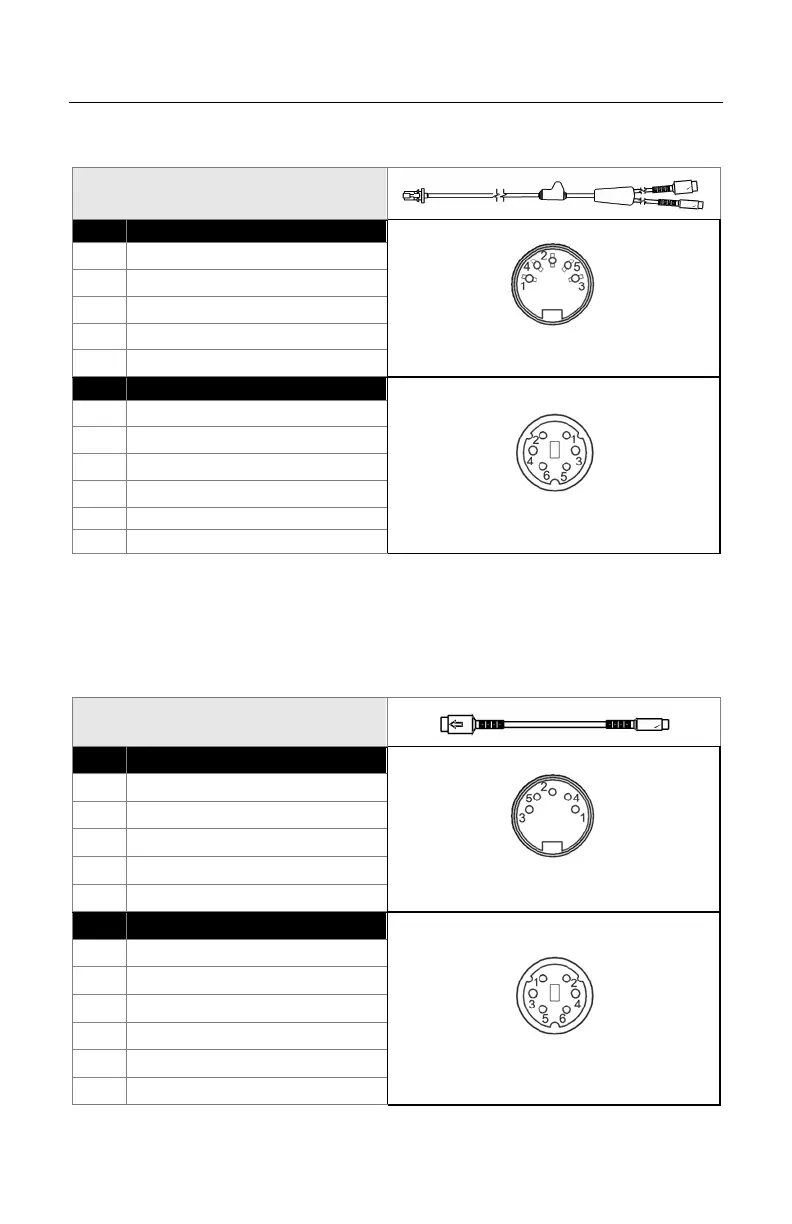

SCANNER AND CABLE TERMINATIONS
CABLE CONNECTOR CONFIGURATIONS (HOST END)
VLink, Keyboard Wedge
PN 54-54002
Pin
Function
5-Pin DIN, Female
1 Keyboard Clock
2 Keyboard Data
3 No Connect
4 Power Ground
5 +5 Volts DC
Pin
Function
6-Pin DIN, Male
1 Keyboard Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5
PC Clock
6
No Connect
Honeywell will supply an adapter cable with a 5-pin DIN male connector on one
end and a 6-pin mini DIN female connector on the other. According to the
termination required, connect the appropriate end of the adapter cable to the
VLink cable, leaving the necessary termination exposed for connecting to the
keyboard and the keyboard port on the PC.
Keyboard Wedge
Adapter Cable
Pin Function
5-Pin DIN, Male
1 PC Clock
2 PC Data
3 No Connect
4 Power Ground
5 +5 Volts DC
Pin Function
6-pin Mini DIN, Female
1 Keyboard Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 Keyboard Clock
6 No Connect
