19.3.1. Scroll Mode
Displays are shown in a continuous sequence as a series of records or readings without manual
interaction. The display shows information for a configurable time. This is called the Dwell Time
and is configurable between 1 and 10 seconds.
Display Order (example)
First Display Meter Serial Number
Display A Identification String, Data and Units
Display B Identification String, Data and Units
“ “
Last Display Date and Time
19.3.2. Menu Mode
Menu Mode is entered by pressing the Top Pushbutton. The Top Pushbutton is also used to select Context Sensitive
Menus on the display.
Once a menu is entered use the Bottom Pushbutton to step through the Selected Menu Display Items.
To return to the previous Menu press the top pushbutton.
Menu Items Available
Boost (if applicable)
Prepayment
General
Registers
Account
Historical
Utility
Logs
Engineering
19.3.3. Auto Configuration of Active TOU Registers
The meter can be configured to automatically display Active TOU kWh Registers in Scroll and Menu Mode Display
Sequences. This feature allows tariffs to be changed without reconfiguring the display.
19.4. Displayable Data
A full list of Displayable Data Items is given in 34.6. The Main Displays are shown below:
• The Payment Mode, currently in operation, being Prepayment Mode or Credit Mode [PIN];
• The Tariff TOU Register Matrix or the Tariff TOU Block Register Matrix and the Tariff Block Counter Matrix;
• The Active Import Register;
• The Active Export Register;
• The Meter Balance [PIN];
• The Debt to Clear [PIN];

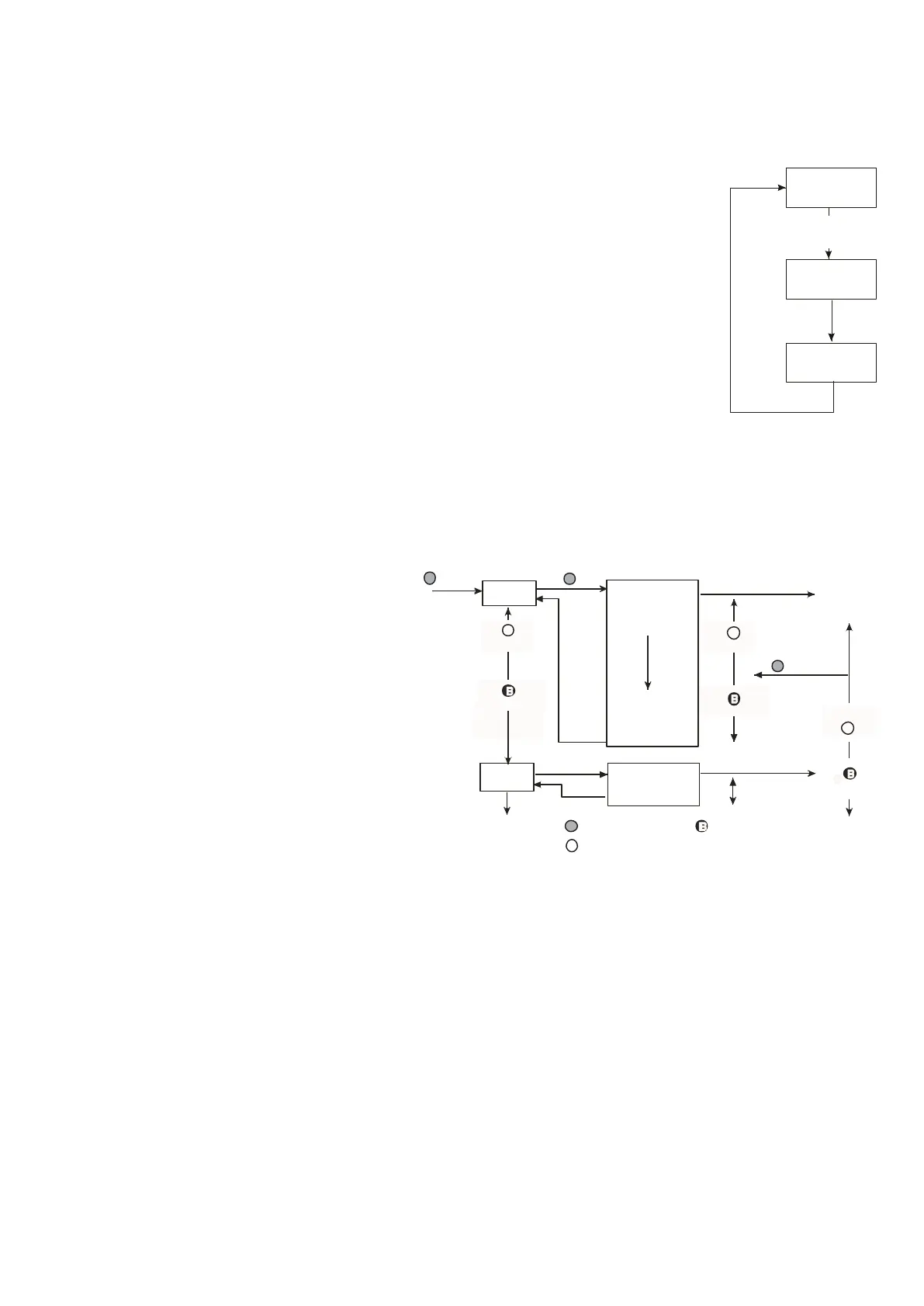

First Display
Next Display
Last Display
Dwell Time
1 to 10 Secs
Time & Date
Total Registers
TOU Registers
MD Registers
Fut Imp Cost
Cur Exp Cost
Fut Exp Cost
Back
Time & Date
Billing Info
Back
(Scroll down)
(Scroll up)
(Scroll up)
Displayable
Items
(Scroll Down)
Level 0
Level 1 Level 2
Level 3
Level 1
Next
Level 2
Local Time
Local Date
....
General
Monthly
Billing
(Scroll down)
(Scroll up)
T
T
T
T
T
T
T
T
Long Press Top
Short Press Top
Short Press Bottom
