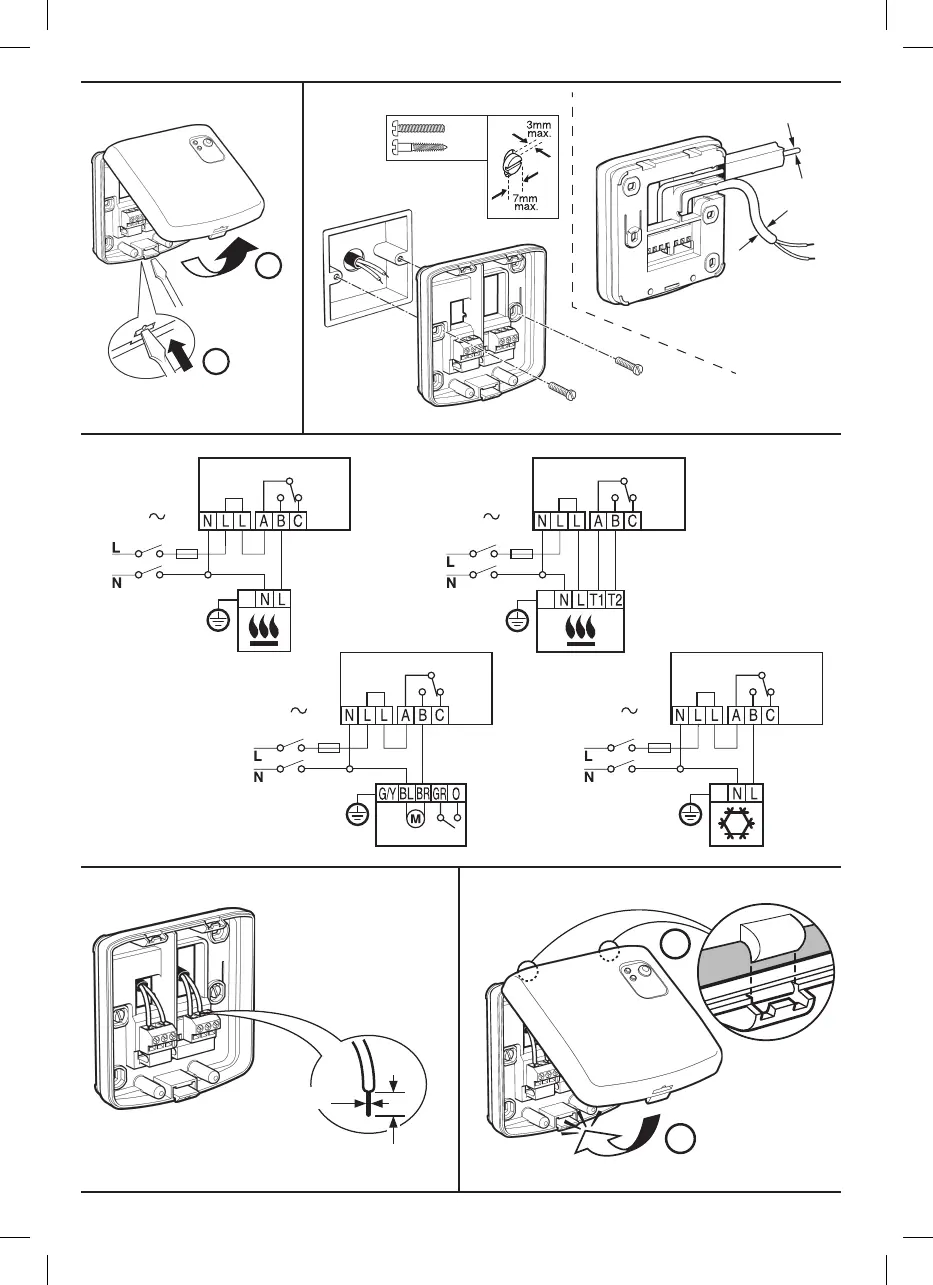

Honeywell BDR91 Installation

4
2.1 2.2
2.3
2.4 2.5
1
2
< 7mm Ø
> 7mm Ø
a. b.
= M3.5
=
N
o
6
1.5-2.5mm²
6mm max.
2
1
230V
50-60Hz
<
5A
BDR91
A-B:5(3)A
A-C:5(3)A
A-B:5(3)A
A-C:5(3)A
BDR91
230V
50-60Hz
<5A
V4043H
A-B:5(3)A
A-C:5(3)A
BDR91
230V
50-60Hz
<5A
A-B:5(3)A
A-C:5(3)A
BDR91
230V
50-60Hz
<5A

Honeywell BDR91 Specifications

General

Type	Wireless Relay Box
Power Supply	230V AC
Frequency	868 MHz
Operating Temperature	0°C to 40°C
Compatibility	Evohome, Single Zone Thermostat
