2. DISASSEMBLY INSTRUCTIONS
WARNING – Before the following disassembly, POWER is set to OFF and disconnected the
power cord.

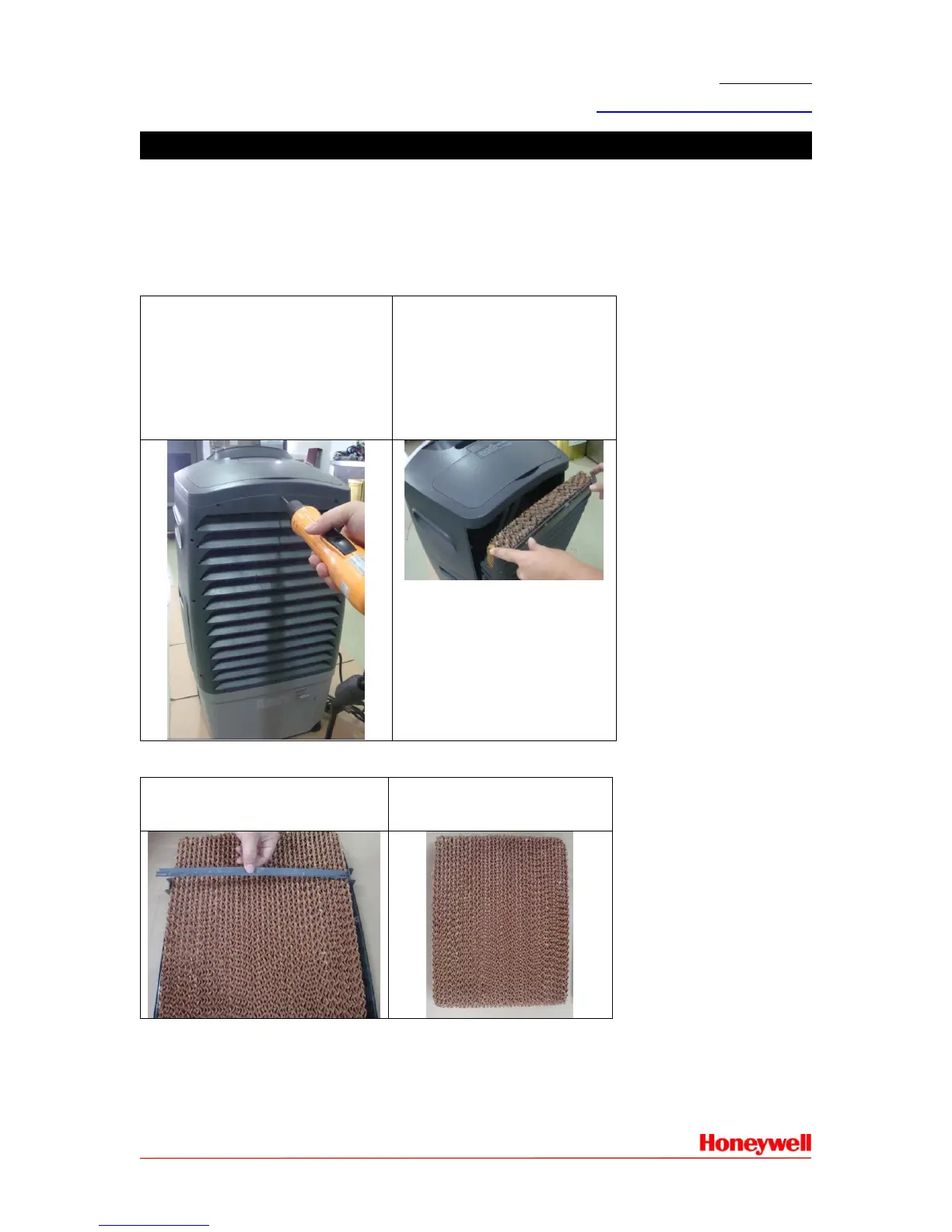

2.1 How To Change Honeycomb Cooling Media
2.1.1 Rear Panel
Use screw driver to remove 3
galvanized screw with plate
head (ST3.5*10) between the
top panel and rear panel, and
then remove the 9 galvanized
screw with plate head
(ST3.5*10) between the left and
right panel and rear panel.
Remove the rear panel.
2.1.2 Honeycomb Cooling Media
Remove the pressing piece.
Remove the honeycomb
cooling media from the top
side.
