Honeywell CL30XC Service Manual

CONFIDENTIAL
Website: http://www.honeywellaircoolers.com
11

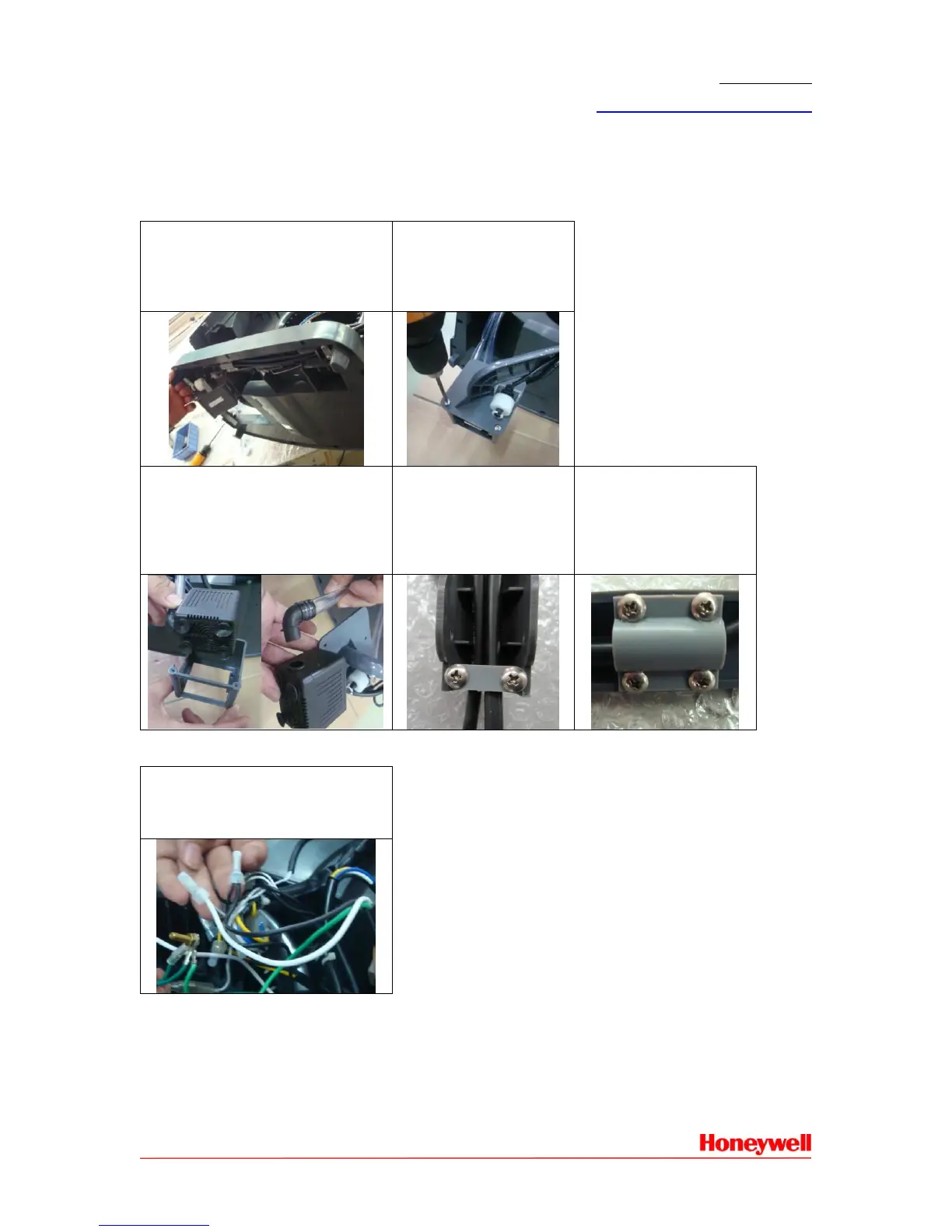

2.2 How To Change Water Pump
Remove the rear panel follow the procedure 2.1.1.
2.2.1 Water Tank
Detach the water tank and use
screw driver to remove 10
galvanized screw with plate
head (ST3.5*10) on the bottom
plate.
Use screw driver to
remove 3 galvanized
screw with plate head
(ST3.5*10) on the
water pump box.
Remove the water pump box
and remove the water tube.
Use screw driver to
remove 2 galvanized
screw with plate head
(ST3.5*10) of the
wiring pressing piece
C.
Use screw driver to
remove 2 galvanized
screw with plate head
(ST3.5*10) of the
wiring pressing piece
B.
2.2.2 Water Pump Wiring Connection
Remove the below 2 wiring cap
and use screw driver to remove
the ground connection screw
part.

Honeywell CL30XC Specifications

General

Noise level	- dB
Product color	Silver
Package depth	395 mm
Package width	502 mm
Package height	885 mm
Package weight	13800 g

Weight and Dimensions

Depth	352 mm
Width	458 mm
Height	856 mm
Weight	11300 g
