Channel 2 Timed Output
Every time you press button 2 on the Code Encryptor II remote the Gray wire sends
a 500ma (-) output for 3 minutes.
Application #1
-If you hardwire the garage door you can use this output to
trigger a 12VDC relay that will energize when you open or close your garage door
extending your entry/exit delay by another 3 minutes. For security, you can make
the entry delay minimal so if a thief enters through the garage, the entry delay will
be short. If the homeowner opens the garage with our Code Encryptor II we will
extend the entry delay by 3 minutes. If you are using the status output in the
garage then you may not need this extra time, as our remote can immediately
de-activate the alarm system and you will receive visual indication the alarm is
disarmed. NOTE: If you are using this output see additional
programmability on page 20.
Application #2
- You can use this output to drive entry/exit illumination. Every
time the customer enters or exits the house this output can trigger a relay or an
X-10 powerflash module to interface with driveway, porch or Malibu lighting,
illuminating their way as they leave and return home. The output activates
automatically when you press button 2 on the Code Encryptor II remote and will
shut off after 3 minutes. NOTE: If you are using this output see additional
programmability on page 20.

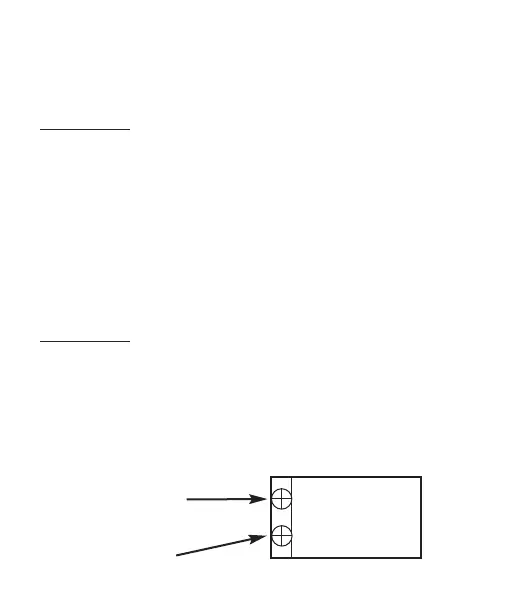

Gray Wire (-)
Aux (+)
12VDC
X-10
Powerflash Module
