Slot number from left to right is 1~n, and n stands for the quantity of
the slots.

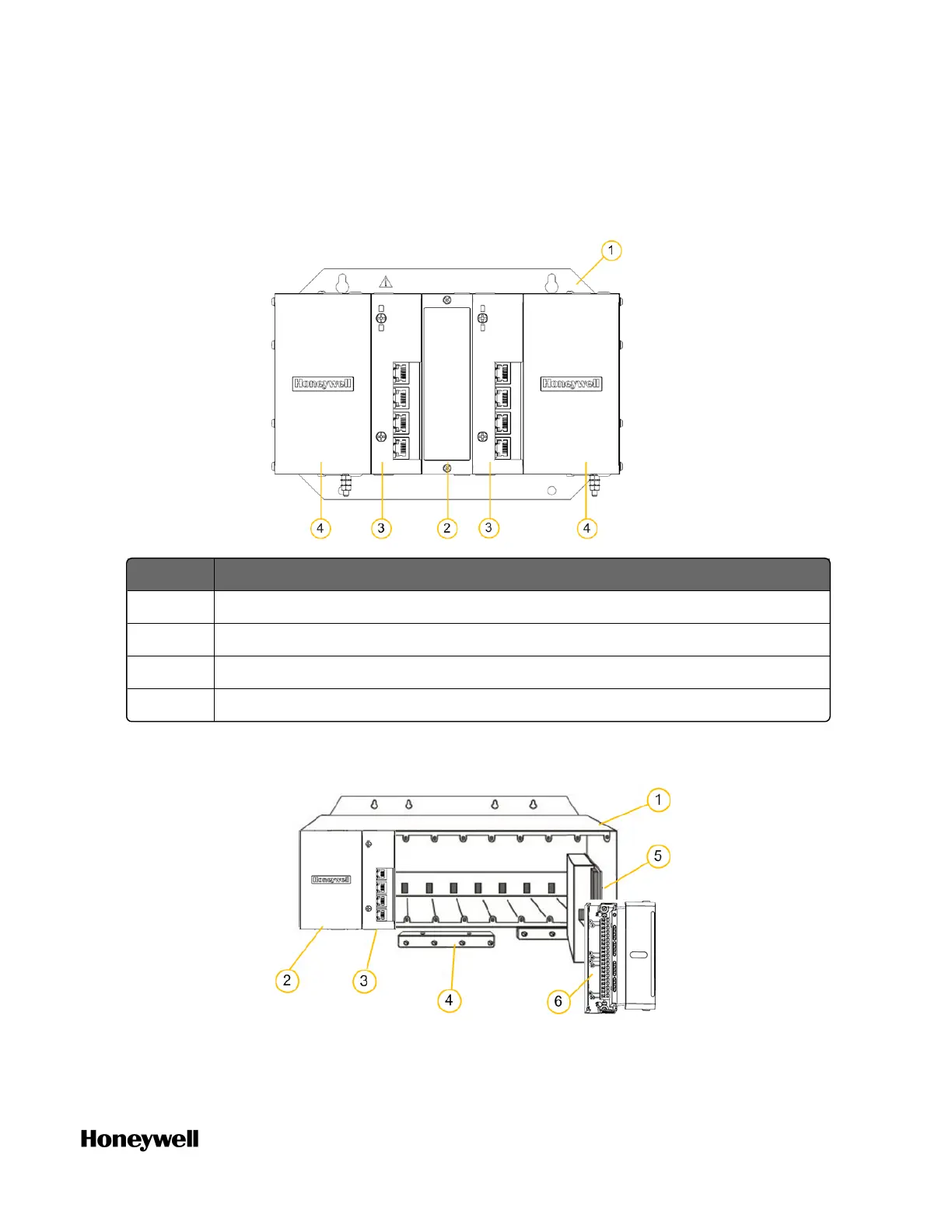

Figure 3-1: Redundant CPM Rack Components
Item Description
1 Redundant CPM rack
2 Redundant Switchover Module Slot Filler
3 Primary/Secondary CPMs
4 Two Power Supplies
Figure 3-2: I/O rack with non-redundant power supply
