Honeywell DC1010 Instruction Manual

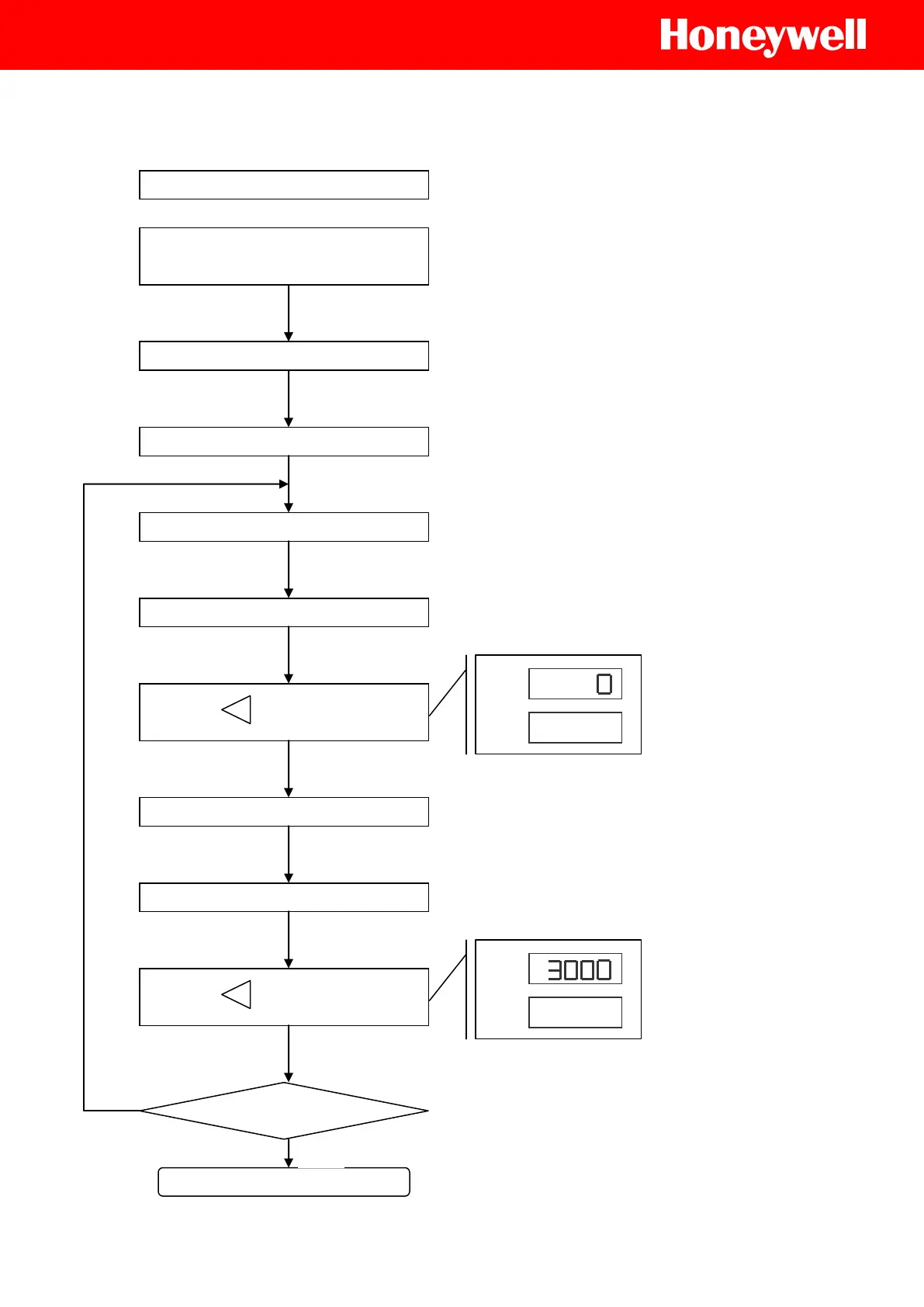

4-4. Procedure of Calibration
(Range of PV : 0~3000, Input : 4~20mA)
Set ‘INP1 = AN5’
‘SET 2.2 = 1’
(To activate the steps of ANL1 &
ANH1 )
Set INP1(Level 3), 4~20mA : AN5
(Refer to ‘3. Linear Input H/W
Setting’)
Define LSPL & USPL in Level 3
Assuming LSPL = 0, USPL = 3000
Input ‘Lower Limit signal’
In case of 4~20mA, input 4mA
Set ‘DP=0000’
DP : Decimal Point
Set Decimal point place
Go to ‘ANL1’ step in Level 3
Press ‘ ’ key, adjust ‘ANL1’
PV
SP
Adjust SP, until ‘PV=LSPL’
(In case of this, PV=0)
Press ‘ ’ key, adjust ‘ANH1’
Go to ‘ANH1’ step in Level 3
Input ‘Upper Limit signal’
In case of 4~20mA, input 20mA
PV
SP
Adjust SP, until ‘PV=USPL’
(In case of this, PV=3000)
Check, ‘OK’ ?
Check LSPL, USPL if right value
(Input Lower/Upper Limit signal, Check)
In case of Linear input model,
The default is ‘SET2.2 = 1’
END
No
Yes

Honeywell DC1010 Specifications

General

Control Type	On/Off, PID
Accuracy	±0.25% of span
Operating Temperature	0 to 50°C
Mounting	Panel Mount
Input Type	Thermocouple, RTD, mA, V
Output Type	Relay
Supply Voltage	100-240 VAC
Display	LED
Dimensions	48 x 48 mm
Number of Outputs	Up to 3
Enclosure Rating	IP66
Alarm	Up to 2 alarms
