Chapter 8. PROGRAM SETUP
■ Setting repeat items
(1) In the set value display state, move to the repeat item to be set for the segment on the
programming map.
(2) Press the ENTER key to make display panel 1 flash (registration of first setting).
(3) Use the ↑, ↓, ←, and → keys to make the first setting – setting the number of the
return segment.
Setting range: 0 to segment number in setting
(4) Press the ENTER key to stop the flashing on display panel 1 and display panel 2
starts flashing. (Start of second setting)
Note, however, that when the first setting is 0, “-----” is shown in the second panel
which does not flash.
(Pressing the FUNC and CLR keys causes display panel 1 and 2 to return to unset
state “
rP.0/ -----” and the flashing stops.)
(5) Use the ↑, ↓, ←, and → keys to make the second setting (repeat segment times).
Setting range: 1 to 10000
(6) Press the ENTER key to stop the flashing on display panel 2.
(Pressing the FUNC and CLR keys causes display panel 1 and 2 to return to unset
state “
rP.0/ -----” and the flashing stops.)
●Display
• Unset values are indicated as “
rP.0/ -----”.
• When setup data
C59 is set to 1, a repeat item on the programming map is skipped
and not displayed.
NOTE When the number of return segment is something other than 0, it uses a subfunction.
A subfunction cannot be used when a setting has not been made “
rP.0/ -----”.

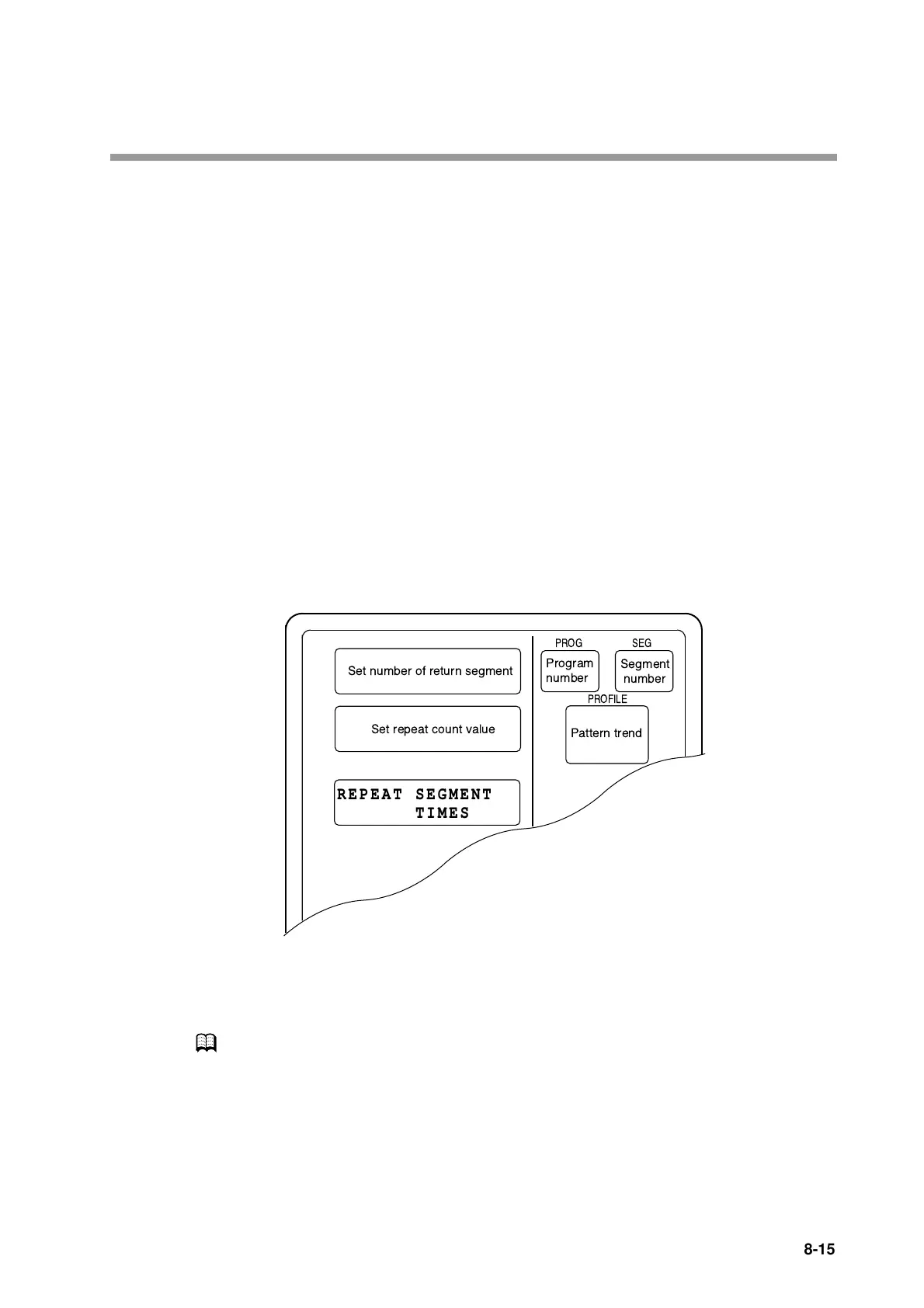

PROG SEG
PROFILE
Program
number
Segment
number
Pattern trend
REPEAT SEGMENT
TIMES
Set repeat count value
Set number of return segment
8-15
