Chapter 8. PROGRAM SETUP
■ Setting tag items
(1) In the set value display state, move to the tag item to be set for the segment on the
programming map.
(A tag item is a program setting and is the same for each segment.)
(2) Press the ENTER key to display the cursor “__” below the leftmost of the 8 charac-
ters in the message panel “[ ]” field (registration of first setting).
(3) Use the ↑, ↓, ←, and → keys to make the first setting – selecting the 8 characters
for the tag. The table below shows the 128 characters that can be used.
(4) Press the ENTER key and the cursor in the message panel disappears.
(Pressing the FUNC and CLR keys causes the message panel return to displaying
an 8-character tag consisting of “
PROG
”, a two-digit program number and two space
characters. The cursor is turned off.)

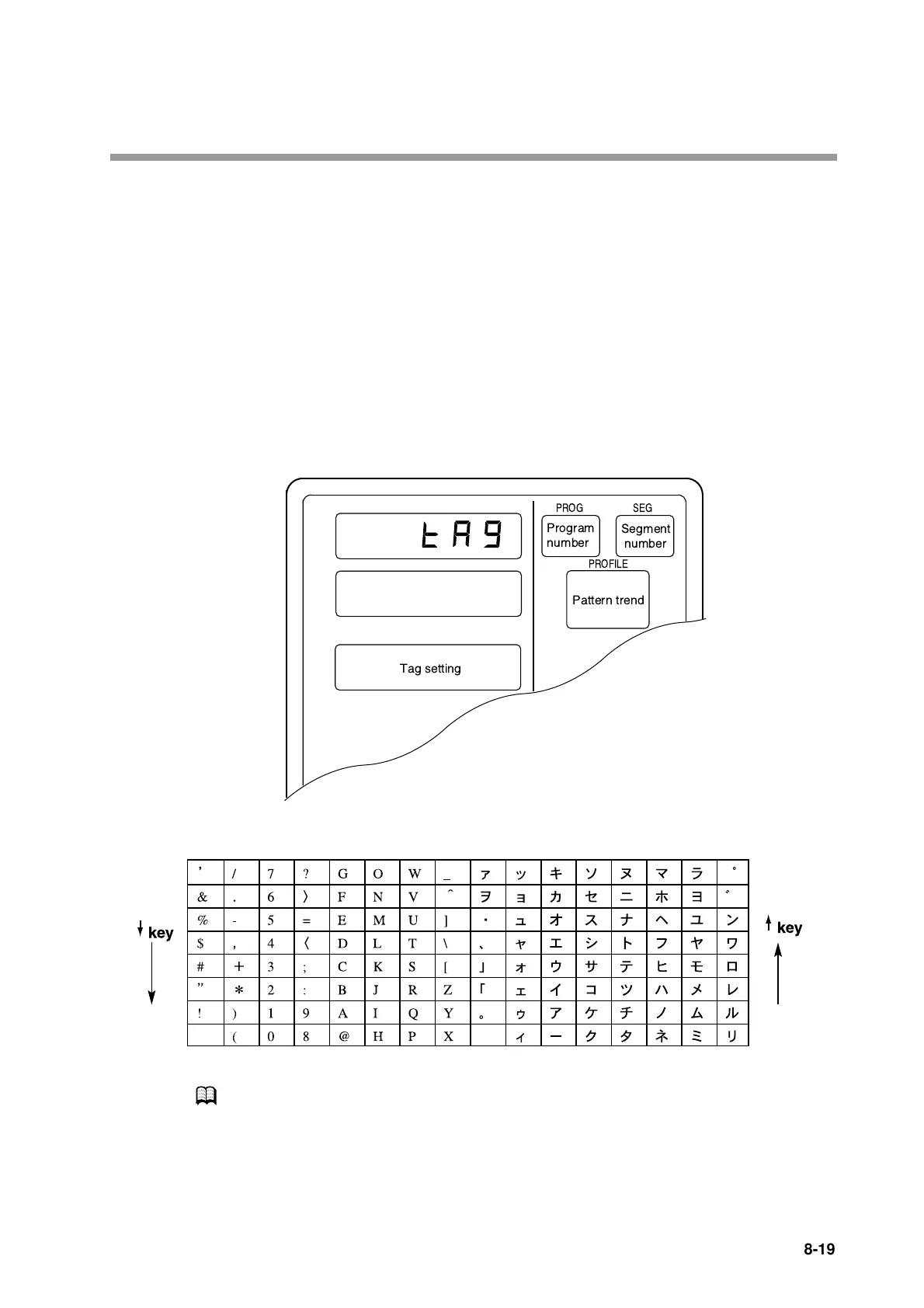

●Display
NOTE A tag item setting does not use subfunctions.
To Next Page
