Chapter 8. PROGRAM SETUP
■ Setting PV start items
(1) In the set value display state, move to the PV start item to be set for the segment on
the programming map.
(A PV start item is a program setting and is the same for each segment.)
(2) Press the ENTER key to make display panel 2 flash (registration of first setting).
(3) Use the ↑, ↓, ←, and → keys to make the first setting – setting the PV start value.
Setting range:0 to 3
0: no PV start
1: descending PV start
2: ascending PV start
3: bi-directional PV start
(4) Press the ENTER key to stop the flashing on display panel 2.
(Pressing the FUNC and CLR keys causes display panel 2 to return to unset state
“
0
” and the flashing stops.)

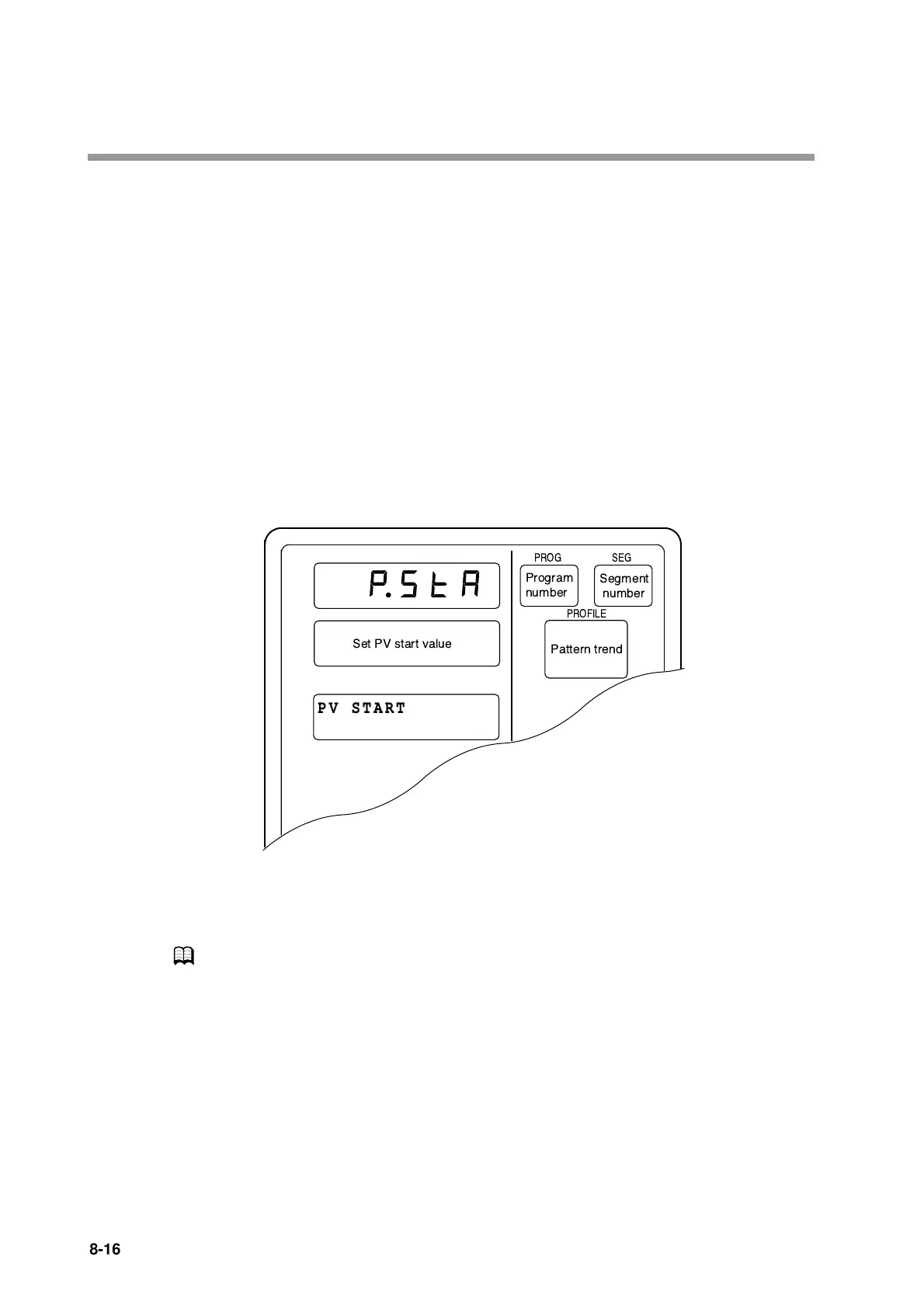

●Display
•A PV start item is a program setting and is the same for each segment.
• When setup data
C60
is set to 1, a PV start item on the programming map is skipped
and not displayed.
NOTE A PV start item setting does not use subfunctions.
