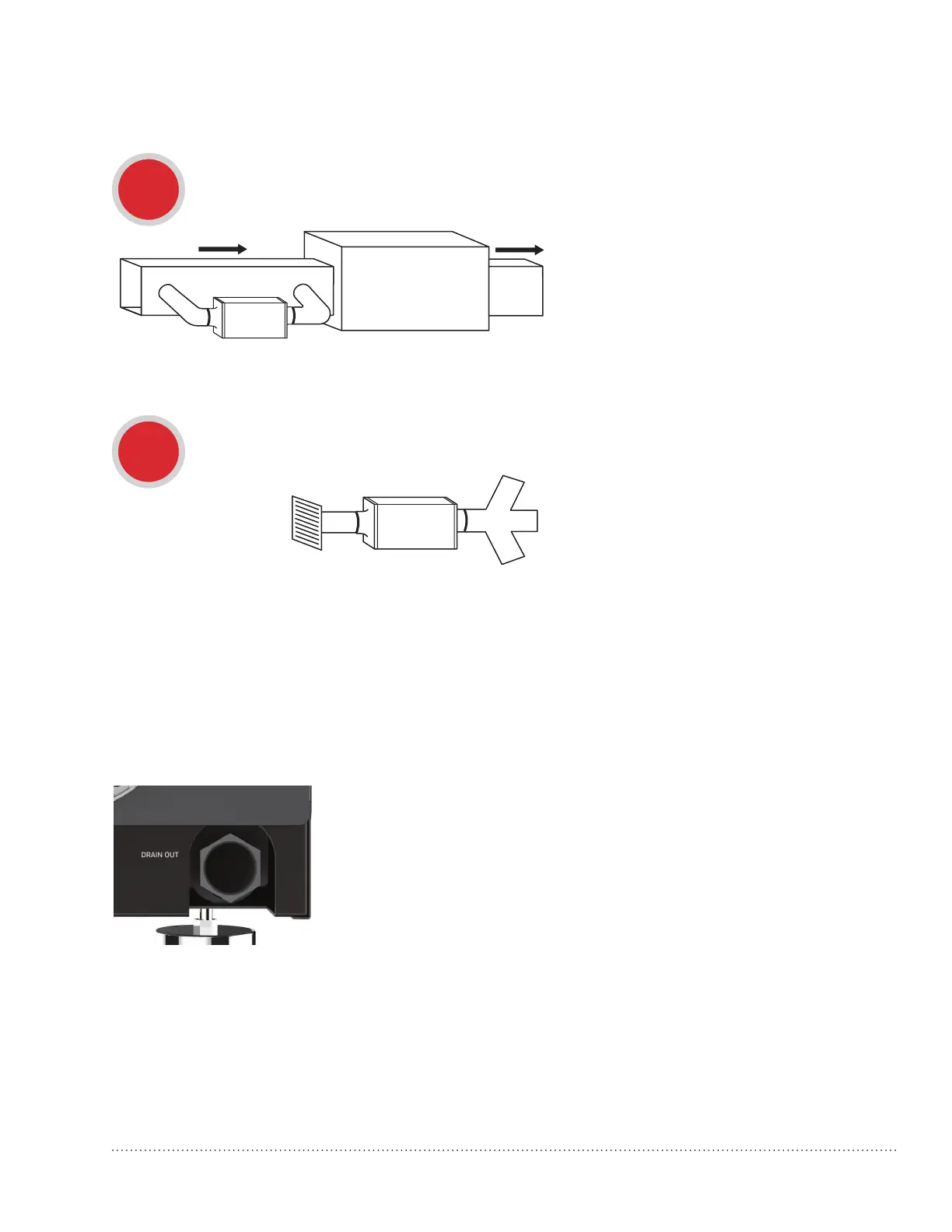

Ideal when…
• DR65A3000 will not be ducted to a
forced air HVAC system.
Attach 3/4” male NPT drain nozzle.
Connect 1/2” drain tube to male connection drain outlet.
Secure drain tube to connector with hose clamp.
Run drain hose continuously downhill to an approved drain
or condensate pump.
The drain line must include a water trap to prevent air from
entering or exiting the dehumidifier.
Plumbing
Install to Fit Your Application (continued)
C
DEHUMIDIFIER
RETURN
SUPPLY
DR65A3000 Dehumidification System 33-00297EFS—01
6
Dedicated Return to Dedicated Supply
Main Return to Main Return
Ideal when…
• Running DR65A3000 with A/C
operation.
• System fan must run with dehumidifier.
• Minimizing discharge air temperature
(DAT) increase is preferred.
• Access to a dedicated central return for
DR65A3000 is not available.
D
SUPPLY
RETURN
DEHUMIDIFIER
To Next Page
